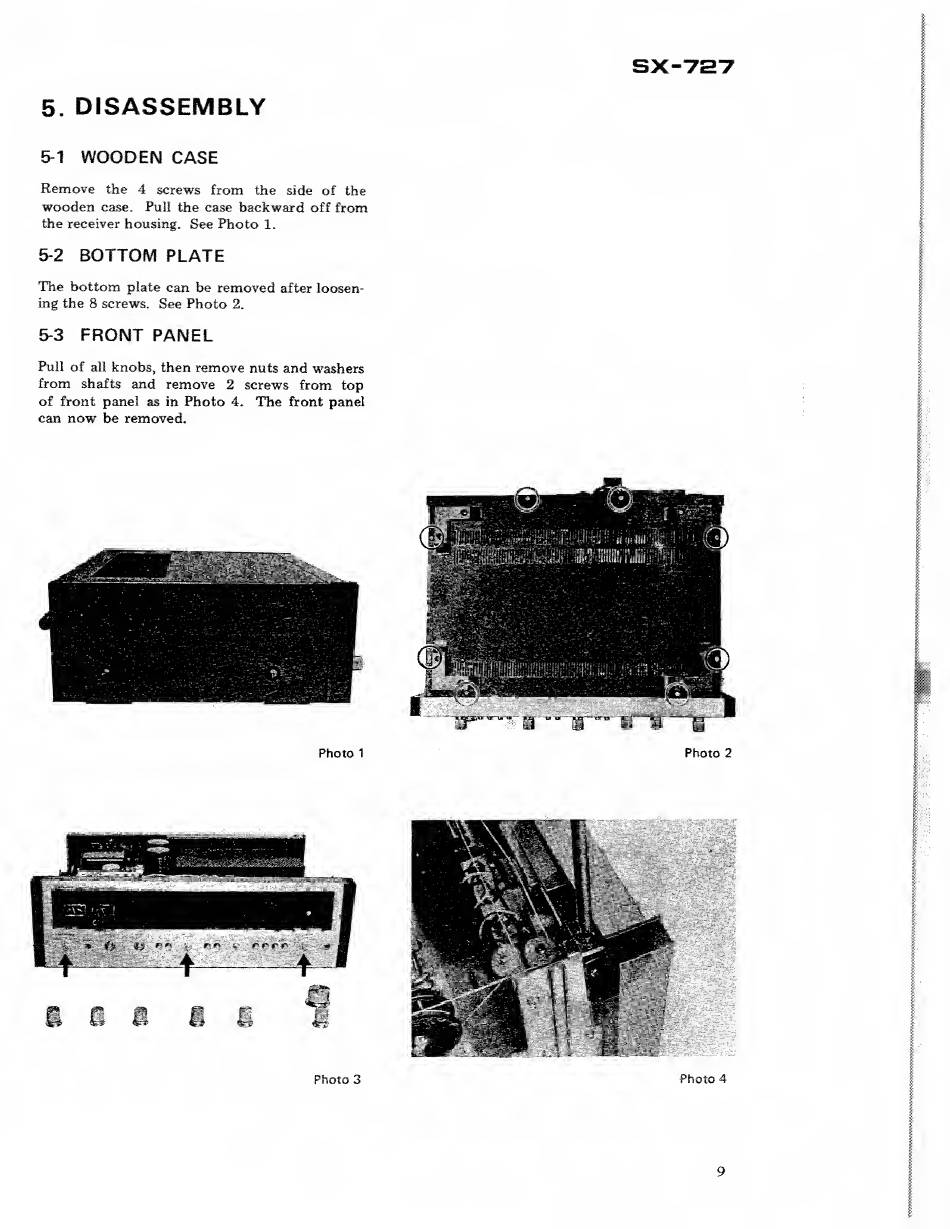

5. DISASSEMBLY
5-1 WOODEN CASE
Remove the 4 screws from the side of the
wooden case. Pull the case backward off from
the receiver housing. See Photo 1.
5-2 BOTTOM PLATE
The bottom plate can be removed after loosen¬
ing the 8 screws. See Photo 2.
5-3 FRONT PANEL
Pull of all knobs, then remove nuts and washers
from shafts and remove 2 screws from top
of front panel as in Photo 4. The front panel
[553
