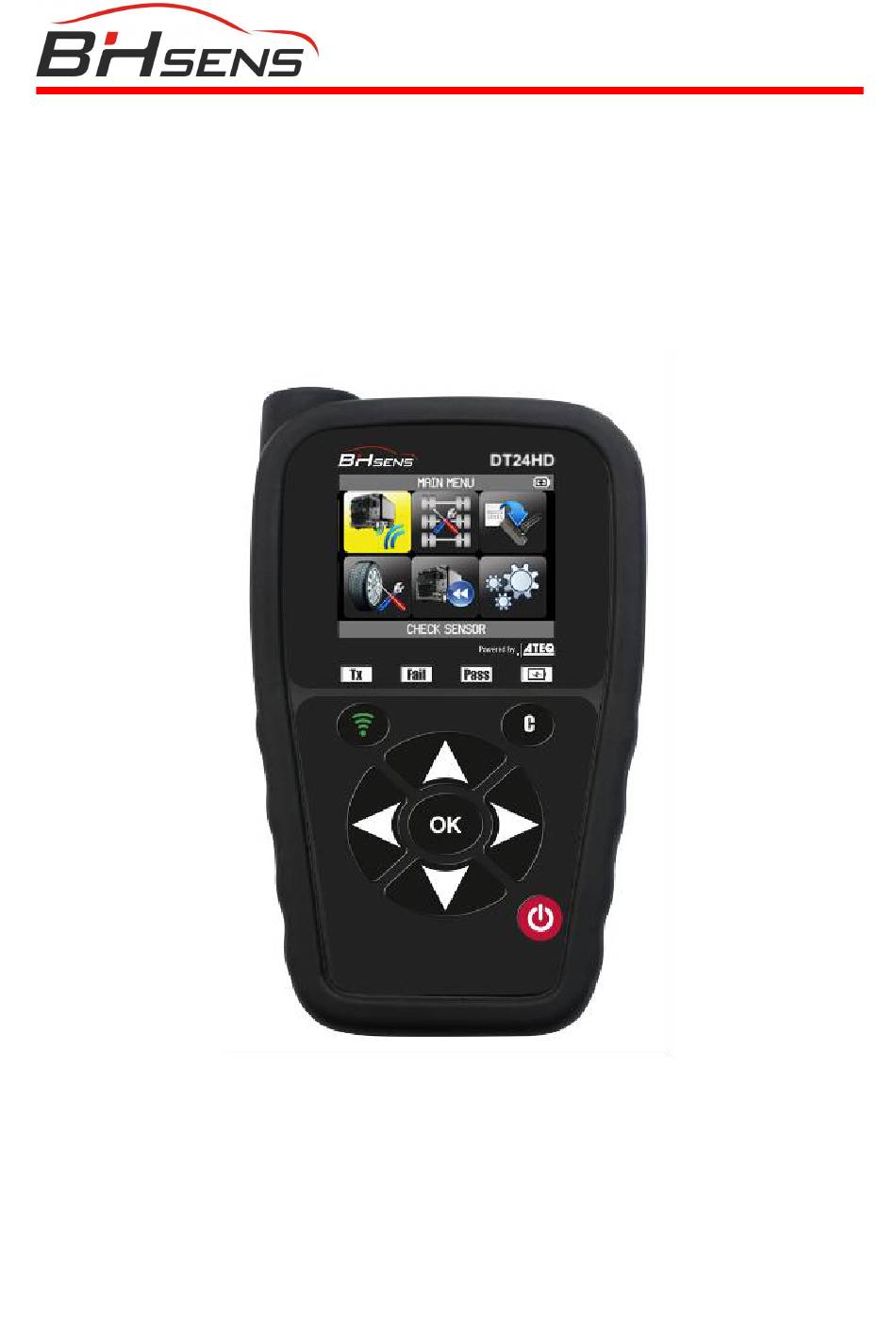

- Page 1 USER MANUAL BH SENS DT24HD Software Version KHTBH1-03-01 www.intellisens.com Reference: UM-KHTBH1-03-01...
-
Page 2: Revision Of The User Manual
Please make sure that your BH SENS DT24HD is always up to date. Read the dedicated chapter page 45 to learn how to update your tool software. -
Page 3: Table Of Contents
DT24HD – User Manual 2 TABLE OF CONTENTS REVISION OF THE USER MANUAL TABLE OF CONTENTS INTRODUCTION SPECIFICATIONS ....................4 PRODUCT CONTENT ..................5 CONTACT US ...................... 5 IMPORTANT SAFETY INSTRUCTIONS ............6 3.4.1 DO NOT DISCARD, RETAIN FOR FUTURE REFERENCE ........... 6 3.4.2... - Page 4 DT24HD – User Manual 4.3.4 PROGRAM SENSOR ......................22 4.3.4.1 Create New Sensor ....................... 23 4.3.4.2 Copy ID ......................... 25 4.3.4.3 Copy Set ........................27 4.3.4.4 Manual ID ........................30 4.3.4.5 Retrieve ID ........................32 SERVICE TPMS ....................34 RECENT SENSOR DATA ................. 37 Settings KEY FUNCTIONAL DESCRIPTIONS ...............
-
Page 5: Introduction
DT24HD – User Manual 3 INTRODUCTION 3.1 S PECIFICATIONS Power Supply 3.000 mAh rechargeable lithium-polymer battery. Battery Life Approximately 300 activations per full charge. Size (H x W x D) 174 mm x 97 mm x 36 mm (6.850 in x 3.818 in x 1.417 in) without rubber cover. -
Page 6: Product Content
DT24HD – User Manual 3.2 P RODUCT ONTENT 3.1 K ONTAKT Europa: Huf Baolong Electronics Bretten GmbH Gewerbestr. 40, D-75015 Bretten, Germany Telefon: + 49 (0) 7252 56 77 990, Fax: +49 (0) 7252 970 5010 E-mail: support@intellisens.com Web: www.intellisens.com USA/Canada: Huf Baolong Electronics North America Corp. -
Page 7: Important Safety Instructions
DT24HD – User Manual 3.2 I MPORTANT AFETY NSTRUCTIONS 3.2.1 ISCARD ETAIN UTURE EFERENCE Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3.2.2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 8: Caution
DT24HD – User Manual This product emits electromagnetic and electronically generated waves that may interfere with the safe operation of pacemakers. Individuals that have pacemakers should never use this product. Read the Warranty, Safety, FCC Statements and recycling information at the end of this user manual. -
Page 9: Dt24Hd Overview
DT24HD – User Manual 3.3 DT24HD O VERVIEW LF/RF Antenna Display screen Battery charge/low battery indicator Result indicators Cancel/No Transmission indicator OK/Confirmation button Trigger button Power ON/OFF Navigation button buttons 3.3.1 IGHTS Trigger light Result light Result light Battery status "Fail"... -
Page 10: Power On
DT24HD – User Manual Next, continue or confirm Cancel, previous step Navigate to select Up Navigate to select Down Navigate to select Left Navigate to select Right 3.5 P OWER Press key to turn on the TPMS tool. Display the splash screen... -
Page 11: Service Procedure
DT24HD – User Manual Display the main menu 3.6 S ERVICE ROCEDURE Follow this TPMS service procedure each time before and after servicing tires/wheels. TPMS 3.6.1 EAD AND DIAGNOSE SENSORS Before wheel or tyre maintenance, use your TPMS tool to check each vehicle sensor. This way you can be sure that they are all working correctly. -
Page 12: Special Case Of Twin Wheels
3.6.2 PECIAL CASE OF TWIN WHEELS DT24HD manages twin wheels completely automatically. If you have a pair of twin wheels, start by activating the TPMS sensor of the outer wheel. To do this, proceed in the same way as for a single wheel. Then as soon as the tool displays the result (green light PASS), move on to reading the inner wheel. -
Page 13: Configurator
DT24HD – User Manual If in doubt about the wheel read, remember that the TPMS tool automatically rejects sensors already read, and so prevents duplication. Example: If the tractor is equipped with 10 TPMS sensors and 10 pressure measurements are displayed, this guarantees that they are for the 10 wheels of the vehicle. -
Page 14: Tpms Tool Usage
DT24HD – User Manual 4 TPMS TOOL USAGE IMPORTANT Vehicle specific information in this manual is used as an example and may not represent specific instructions each brand and model may require. When performing various functions with the tool, it is important to refer to the on-screen prompts and/or repair manual information. -
Page 15: Check Sensor
TPMS sensors. - Scan Mode to read sensors without knowing the truck model and without knowing the TPMS sensor model. In this case, the BH SENS DT24HD will scan all the frequencies it knows to read the TPMS sensors. -
Page 16: Select Truck Model
DT24HD – User Manual 4.2.1.1 S ELECT RUCK ODEL Select truck brand Select a brand Select truck model Select a model Select year of the truck Select a year UM-KHTBH1-03-01 Page 15/53... -
Page 17: Select Sensor
DT24HD – User Manual Next Back The truck configuration you made with the configurator, refer to page 13, is displayed. You are ready to check sensors. 4.2.1.2 S ELECT ENSOR Select the sensor brand Select a brand Select sensor model... -
Page 18: Scan Mode
HECK ENSORS The truck wheel configuration displayed by the BH SENS DT24HD corresponds to the configuration made with the Configurator function, refer to page 13. Reminder: The sensor reading starts with the left front wheel of the vehicle. Turn counter- clockwise for subsequent wheels, refer page 10. - Page 19 DT24HD – User Manual Press this button to read the first Use the arrow sensor buttons to select a different wheel The sensor data is read out Next The sensor data is displayed Press this button to read the Use the arrow...
- Page 20 DT24HD – User Manual Next The data from the second wheel sensor is displayed Continue in the same way to read all the vehicle's sensors. If no sensor is detected, the battery might be empty or the sensor damaged. Next...
-
Page 21: Program Sensor
DT24HD – User Manual Next Back All the truck's sensors have been checked 4.3 P ROGRAM ENSOR This section explains how to obtain the ID of a sensor to insert it into a programmable sensor: • If the "old" sensor is readable, use the Copy ID section page 25 or Copy Set page 27 to retrieve the ID. -
Page 22: Select Program Sensor
DT24HD – User Manual 4.3.1 ELECT ROGRAM ENSOR From the main menu, select Program Sensor Select a function 4.3.2 ELECT ENSOR ODEL Select the sensor Next Back 4.3.3 ELECT RUCK ODEL Select the truck brand Select a brand Back UM-KHTBH1-03-01... -
Page 23: Program Sensor
DT24HD – User Manual Select truck model Select a model Back Select the year of the truck Select a year Back The Program Sensor menu is displayed Next Back 4.3.4 ROGRAM ENSOR To program a sensor, you can: • Automatically create a new sensor... -
Page 24: Create New Sensor
DT24HD – User Manual • Copy ID of an existing sensor to a new programmable sensor with Copy ID • Copy IDs of a set of sensors from a truck with Copy Set • Manually create a new sensor with Manual ID •... - Page 25 DT24HD – User Manual Put the new programmable sensor close to To upload data the antenna of to blank sensor the device Back It is also possible to overwrite a programmable sensor already used New data are written to the...
-
Page 26: Copy Id
DT24HD – User Manual The data has been correctly written to the Next new sensor. ID of the new sensor is displayed with the message Successfull 4.3.4.2 C Copy ID of an existing sensor to a new programmable sensor. Select Copy... - Page 27 DT24HD – User Manual The ID and data of the existing sensor is Next displayed Put the new programmable sensor close to To upload data the antenna of to blank sensor the device Stop The data from the existing sensor is copied...
-
Page 28: Copy Set
DT24HD – User Manual The data has been correctly written to the Next new sensor. ID of the new sensor is displayed with the message Successful 4.3.4.3 C Copy IDs of a set of sensors from a truck. Select Copy... - Page 29 DT24HD – User Manual Ok to read the second sensor in the sensor set to be copied Back The data of the first sensor in the sensor set to be copied is displayed Press this button to read Use the arrow...
- Page 30 DT24HD – User Manual Next Back All sensors in the copy set have been read The tool will write the read IDs and data into the new programmable sensors Put the first new programmable sensor close to To upload data...
-
Page 31: Manual Id
DT24HD – User Manual The data has been correctly written to the first Next new sensor ID of the first new sensor is displayed with the message Successful Continue in the same way to copy the data from the sensor set to be copied to the... - Page 32 DT24HD – User Manual Select numeric format Select a format Back Enter the sensor ID (10 digits) Use the arrows to select a number confirm the number Next to continue Put the sensor close to the antenna of the To upload ID...
-
Page 33: Retrieve Id
DT24HD – User Manual The ID is copied to the sensor. Stop The ID has been correctly written to the Next sensor ID of the new sensor is displayed with the message Successful 4.3.4.5 R ETRIEVE Retrieve a sensor ID via OBD2. - Page 34 DT24HD – User Manual Next Back Plug OBD2 cable to the tool and to the vehicle Next Back You are ready to program the first sensor Next with the actual ID from the car Back UM-KHTBH1-03-01 Page 33/53...
-
Page 35: Service Tpms
DT24HD – User Manual To program the first sensor Wait a few second until the process is finished Stop The data is successfully uploaded to To program the sensor the next sensor 4.4 S TPMS ERVICE This is a spare parts database that lists all available sensor references for each truck model. - Page 36 DT24HD – User Manual From the main menu, select Service TPMS Select a function Select the truck brand Select a brand Back Select truck model Select a model Back UM-KHTBH1-03-01 Page 35/53...
- Page 37 DT24HD – User Manual Select the year of the truck Select a year Back Next Back Select Back UM-KHTBH1-03-01 Page 36/53...
-
Page 38: Recent Sensor Data
DT24HD – User Manual OE Part # Back Back OE Sensor Ref. Back Back AFM Part # back Back 4.5 R ECENT ENSOR Data from a truck's sensor check is automatically stored in the Recent Sensor Data menu. You can review this data by selecting the Recent Sensor Data option from the main menu. - Page 39 DT24HD – User Manual From the main menu, select Recent Sensor Data Select a function Use the arrow buttons to select a different wheel Back Back UM-KHTBH1-03-01 Page 38/53...
-
Page 40: Settings
DT24HD – User Manual 5 SETTINGS From the main menu, select Settings Select a function change the Use the arrows setting to select a setting Back 5.1 K UNCTIONAL ESCRIPTIONS • REGION: to select the area of work, AMERICA, EUROPE. -
Page 41: Change Region Settings
DT24HD – User Manual 5.2 C HANGE REGION SETTINGS Validate Use the arrows to select a zone Back The tool will load the new database for the selected zone 5.3 C HANGE UNIT SETTINGS Validate Use the arrows to select... -
Page 42: Change Format Settings
DT24HD – User Manual 5.4 C HANGE FORMAT SETTINGS Validate Use the arrows to select a numeric format Back • AUTO: display sensor ID format in the way sensor is transmitting. • DECIMAL: force to display sensor ID in decimal (0 to 9). -
Page 43: Change Auto Off Settings
DT24HD – User Manual 5.6 C HANGE FF SETTINGS Validate Use the arrows to increase or decrease the duration of the Back auto of Auto off varies from Disabled (never) to 60 minutes 5.7 C HANGE ISPLAY RUCKS SETTINGS Validate... -
Page 44: About Menu
DT24HD – User Manual 5.8 A BOUT to return to the Settings menu This menu displays the serial number, the current version and information about the device UM-KHTBH1-03-01 Page 43/53... -
Page 45: Miscellaneous
DT24HD – User Manual 6 MISCELLANEOUS 6.1 C HARGE Low Battery Indication Battery indicator status: Your TPMS TOOL incorporates a low battery detection circuit. Battery life is an average of 300 sensor tests per 100% battery charge (approximately 60 to 80... -
Page 46: Tool Update
DT24HD – User Manual 6.2 T PDATE Updating the TPMS TOOL When a new protocol becomes available, it is necessary to update your tool. Please follow the steps below: IMPORTANT: Temporarily turn off all anti-virus and spam blocking software on your computer. -
Page 47: Limited Hardware Warranty
DT24HD – User Manual point of purchase and any other product related 6.3 L IMITED ARDWARE questions should be addressed directly to SENS ARRANTY . The addresses and customer service BH SENS contact information for can be found in the documentation accompanying your... -
Page 48: Safety Battery And Charge Information
DT24HD – User Manual CAUTION: This unit contains an internal 6.4 S AFETY ATTERY Lithium-polymer battery. The battery can HARGE NFORMATION burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, pierce or dispose... -
Page 49: Manufacturer
DT24HD – User Manual recommended that you return the tool to us. 6.6 FCC S TATEMENTS We will extract the battery and give it to a specialized recycler. Federal Communication Commission Do not dispose of Lithium-polymer Interference Statement batteries with your general waste. -
Page 50: Recycling
DT24HD – User Manual The manufacturer of the TPMS TOOL declares that Radio equipment in the frequency range 9 kHz to this device complies with the requirements of: 25 MHz and inductive loop systems in the frequency range 9 kHz to 30 MHz; Part 2: - ETSI EN 300 330-1 V1.8.1 (2015-03):... -
Page 51: Index
DT24HD – User Manual 7 INDEX About Menu .......... 44 OBD2 ........... 33 AFM Part # ........... 38 Auto Off settings ........43 Part # ..........38 Sensor Ref........38 Order of sensor triggering ....10 Battery ..........45, 48 Buzzer settings ........ - Page 52 DT24HD – User Manual Auto Off ..........43 Twin wheels ......... 11 Buzzer..........42 Display Truck ........43 Units settings ........41 Format ..........42 Region ..........41 Update ..........46 Units ..........41 USB Internet Options ......46 Zone ..........41 Software Use Instructions ........
- Page 53 This document is the exclusive property of BH SENS. It may not be communicated, reproduced or used without prior consent.
