Connecting to Optional Equipment

Enjoying Dolby Digital (AC-3) Sound

You can enjoy the high quality dynamic sound of Dolby Digital (AC-3), Dolby Pro Logic, and 2 Channel Digital Stereo.
Dolby Digital (AC-3)
Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to
reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this
dynamic realistic sound by connecting the DVD player to a 6 channel amplifier equipped with a Dolby Digital (AC-3)
decoder or Dolby Digital (AC-3) processor.
To enjoy Dolby Digital (AC-3)
sound from this DVD player
you need the following:
DVD video discs recorded in
Dolby Digital (AC-3)
6 channel amplifier equipped
with a Dolby Digital (AC-3)
decoder, or Dolby Digital
(AC-3) processor and power
amplifier
5 speakers and 1 sub woofer
To enjoy Dolby Digital (AC-3)
sound
You need to select "Dolby Digital"
on the SETUP menu.
Notes
Refer to the owner's manual of your audio equipment as well.
When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.
The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver's volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
Turn off the amplifier before you connect or disconnect the DVD player's power cord. If you leave the amplifier power on, the
speakers may be damaged.
DOLBY DIGITAL 5.1CH COMPONENT AUDIO
VIDEO OUT OUT
FRONT REAR
L
Pb L
R
S-VIDEO
DIGITAL OUT
R
Pr
OUT
VIDEO
COAXIAL Y
CENTER WOOFER
OUT
OPTICAL
To DIGITAL OUT
(COAXIAL or OPTICAL)
75 ohm coaxial cable
Amplifier equipped
To digital
with a Dolby Digital
audio input
(AC-3) decoder
Front speaker
(left)
Rear speaker
(left surround)
* Manufactured under license from Dolby Laboratories Licensing
Corporation. "Dolby", "AC-3" and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
Confidential Unpublished Works.
rights reserved.
CONNECTIONS
To S-VIDEO OUT
or VIDEO OUT
S-Video cable
or Video cable
To S-video Input
Front speaker
or Video Input
(right)
Center
speaker
Sub woofer
Rear speaker
(right surround)
C
1992-1997 Dolby Laboratories, Inc. All
PAGE 15

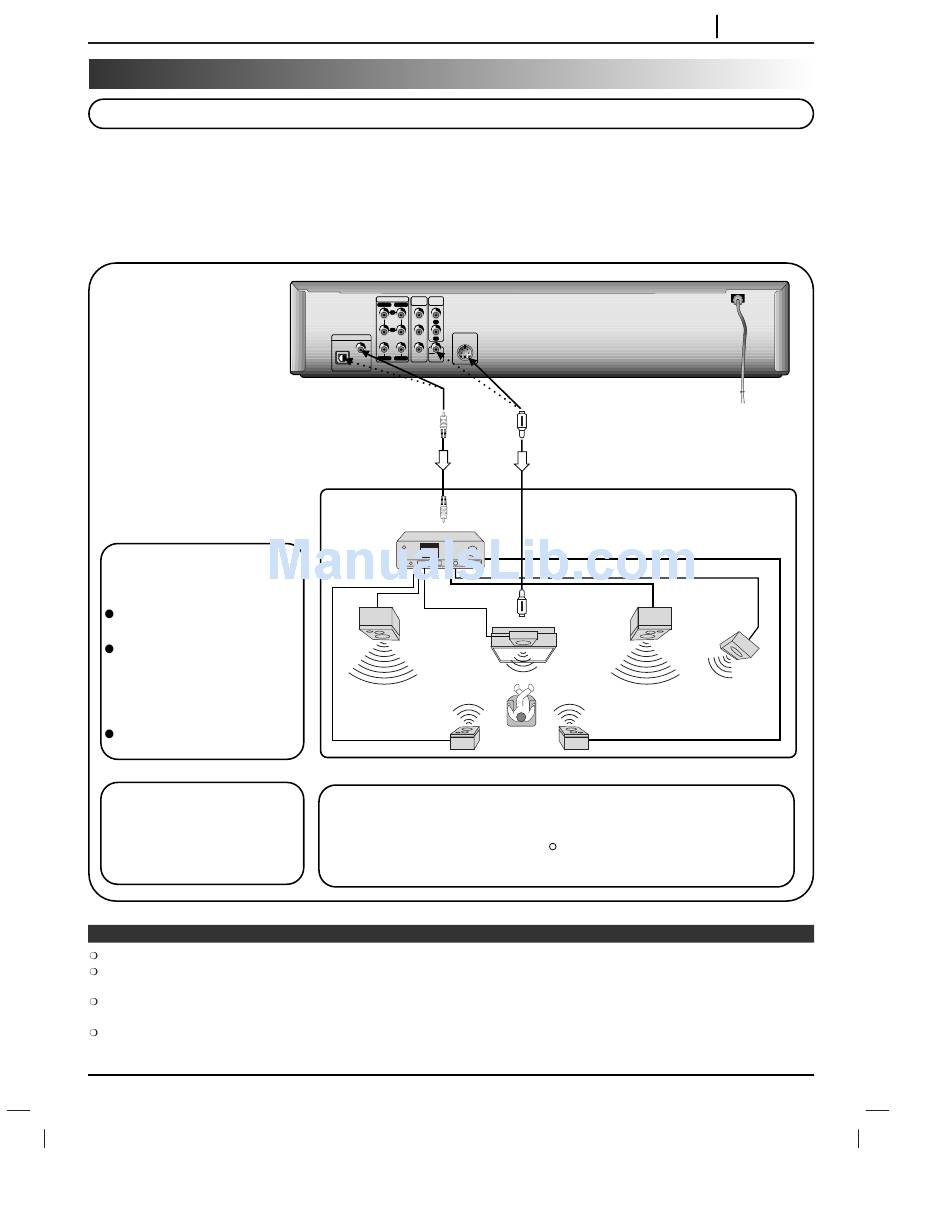

Connection
example
