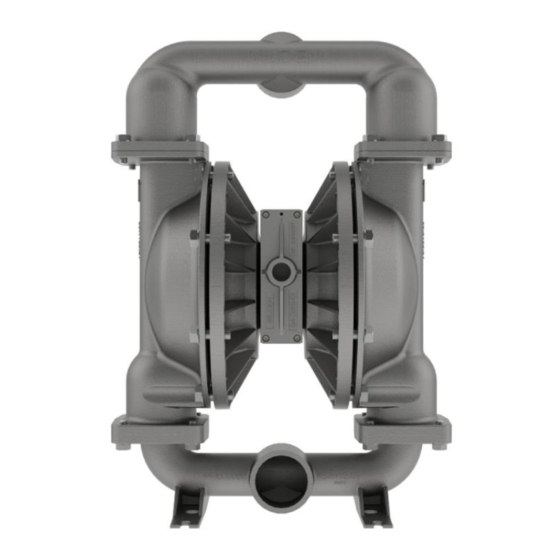

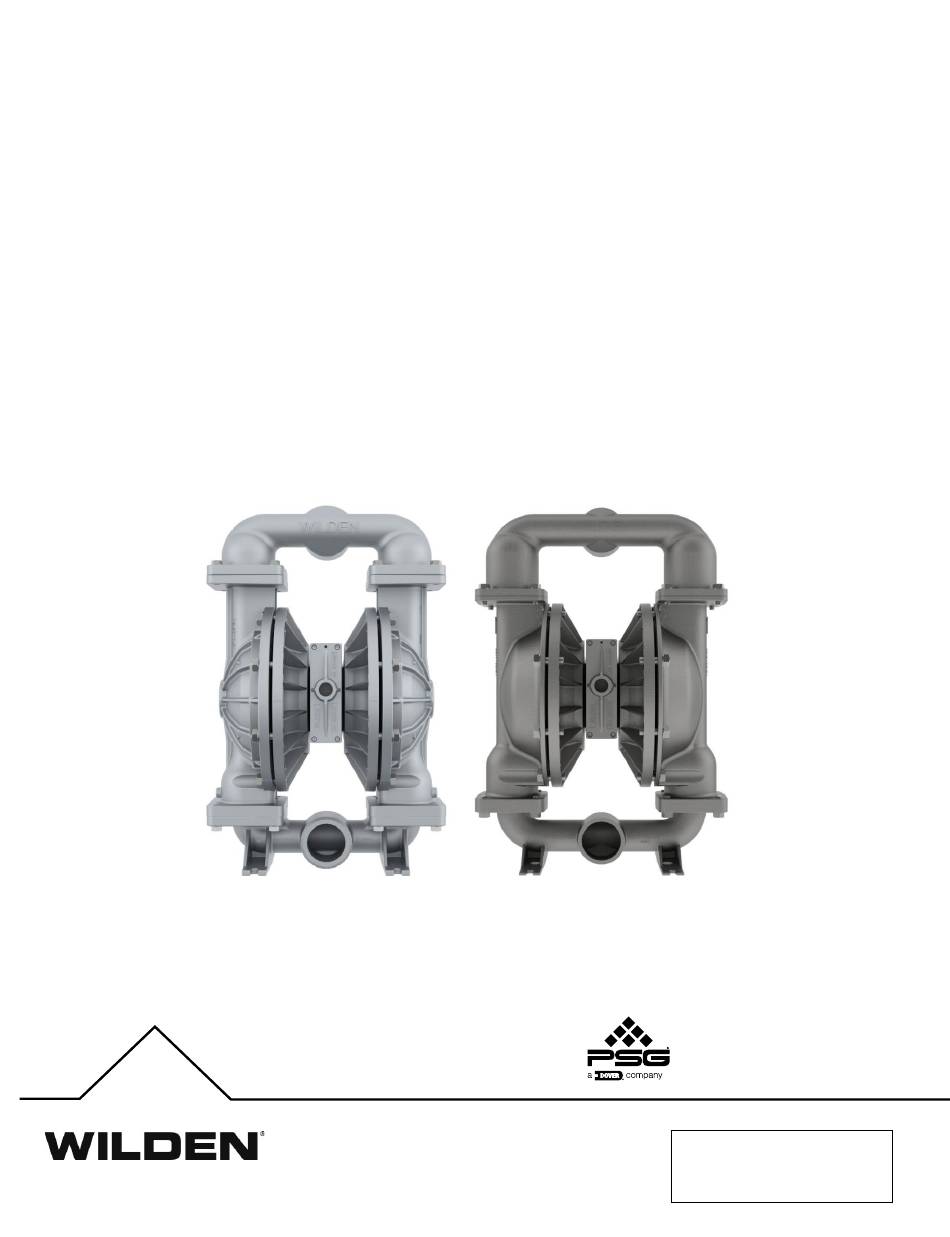

- Page 1 ENGINEERING OPERATION 15-1060-54 & MAINTENANCE MANUAL PR1560/PR1570 Bolted Metal Pump Where Innovation Flows WIL-11740-E-03...
- Page 2 No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording, without the written permission of PSG, a Dover Company, except as described by the terms of those agreements.
-
Page 3: Table Of Contents
PR1560/PR1570 Bolted Metal CONTENTS SECTION 1: Safety and Precautions ..................4 SECTION 2: Wilden Pump Designation System ..............5 SECTION 3: How It Works ......................6 SECTION 4: Dimensional Drawings ..................7 SECTION 5: Performance ......................9 PR1560/PR1570 Metal Rubber-Fitted ..............9 PR1560/PR1570 Metal EZ-Install TPE-Fitted ............ -
Page 4: Section 1: Safety And Precautions
PR1560/PR1570 Bolted Metal SECTION 1 SAFETY AND PRECAUTIONS WARNING: Always wear safety glasses when operating CAUTION: All Wilden pumps are capable of passing a pump to avoid eye injury. If diaphragm rupture occurs, solids. Use a strainer on the pump intake to ensure that material being pumped may be forced out of the air the pump's rated solids capacity is not exceeded. -
Page 5: Section 2: Wilden Pump Designation System
PR1560/PR1570 Bolted Metal SECTION 2 WILDEN PUMP DESIGNATION SYSTEM PR1560/PR1570 LEGEND XPR 1560 / / X X X / X X / X X X / X X X X METAL 76.2 mm (3") Pump O-RINGS MODEL VALVE SEATS SPECIALTY Maximum Flow Rate: VALVE BALLS CODE... - Page 6 PR1560/PR1570 Bolted Metal SECTION 3 HOW IT WORKS – AIR-OPERATED DOUBLE-DIAPHRAGM PUMP The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show flow pattern through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke. FIGURE 1 The air valve directs pressurized air to FIGURE 2 When the pressurized diaphragm, FIGURE 3 At completion of the stroke, the air...
- Page 7 PR1560/PR1570 Bolted Metal SECTION 4 DIMENSIONAL DRAWING DIMENSIONAL DRAWING PR1560 ALUMINUM DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 21.0 2.375 15.5 30.0 32.3 3.26 15.7 23.2 14.31 12.06 10.16 11.0 TJPR1560-01 REV.A PR1560 STAINLESS STEEL DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 22.4 2.375 15.8...
- Page 8 PR1560/PR1570 Bolted Metal DIMENSIONAL DRAWING PR1570 STAINLESS STEEL DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 22.4 4.33 17.79 31.96 35.96 3.62 17.9 15.3 23.2 13.9 12.06 10.16 11.69 0.71 0.86 TJPR1570-02 REV.A WIL-11740-E-03...
-
Page 9: Section 5: Performance
PR1560/PR1570 Bolted Metal SECTION 5 PERFORMANCE PR1560/PR1570 METAL RUBBER-FITTED Ship Weight: PR1560…………Aluminum 58.4 kg (128.5 lb) 316 Stainless Steel Threaded 101.4 kg (223 lb) 316 Stainless Steel Flanged 113 kg (248 lb) Air Inlet……………………………………….3/4" Inlet...………………………………...76 mm (3") Outlet………………………………...76 mm (3") Suction Lift………..…………..6.8 m Dry (22.2′) 9 m Wet (29.5′) Disp. -
Page 10: Pr1560/Pr1570 Metal Ez-Install Tpe-Fitted
PR1560/PR1570 Bolted Metal PERFORMANCE PR1560/PR1570 METAL EZ-INSTALL TPE-FITTED PR1560…………Aluminum 58.4 kg (128.5 lb) 316 Stainless Steel Threaded 101.4 kg (223 lb) 316 Stainless Steel Flanged 113 kg(248 lb) Air Inlet……………………………………….3/4" Inlet...………………………………...76 mm (3") Outlet………………………………...76 mm (3") Suction Lift………..…………..6.4 m Dry (20.9′) 9.0 m Wet (29.5′) Disp. -
Page 11: Suction Lift Capability
PR1560/PR1570 Bolted Metal SUCTION LIFT CAPABILITY PR1560/PR1570 METAL SUCTION LIFT CAPABILITY Suction-lift curves are calibrated for pumps operating at 305 m (1,000') above sea level. This chart is meant to be a guide only. There are many variables that can affect your pump's operating characteristics. -
Page 12: Section 6: Suggested Installation, Operation, Maintenance, And Troubleshooting
PR1560/PR1570 Bolted Metal SECTION 6 SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING Wilden pumps are designed to meet the performance requirements of be eliminated. In addition, pump efficiency can be adversely even the most demanding pumping applications. They have been affected if proper attention is not given to site location. designed and manufactured to the highest standards and are •... - Page 13 PR1560/PR1570 Bolted Metal SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING to control the pump from a remote location. When the pump discharge pressure equals or exceeds the air supply pressure, the NOTE: In the event of a power failure, close the shut- pump will stop.
-
Page 14: Section 7: Disassembly/Reassembly
PR1560/PR1570 Bolted Metal SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING Troubleshooting Pump air valve freezes. Pump will not run or runs slowly. Check for excessive moisture in the compressed air. Remove plug from pilot spool exhaust. Either install a dryer or a hot air generator for compressed air. -
Page 15: Pump Disassembly
PR1560/PR1570 Bolted Metal SECTION 7 DISASSEMBLY / ASSEMBLY PUMP DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the compressed • air line to the pump and allow all air pressure to bleed from the pump. Disconnect all 15/16’’/ 3/4’’Wrench intake, discharge, and air lines. - Page 16 PR1560/PR1570 Bolted Metal DISASSEMBLY / ASSEMBLY Step 7 Step 8 Step 9 Remove the inlet valve balls and valve seats from Remove the hardware attached to liquid chamber. The liquid chamber should be removed the inlet manifold and liquid chambers and inspect to expose the diaphragm and outer for nicks, gouges, chemical attack or abrasive piston.
- Page 17 PR1560/PR1570 Bolted Metal DISASSEMBLY / ASSEMBLY AIR VALVE / CENTER SECTION DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the compressed • air line to the pump and allow all air pressure to bleed from the pump. Disconnect all 5 mm (3/16") Hex-Head Wrench intake, discharge, and air lines.
- Page 18 PR1560/PR1570 Bolted Metal DISASSEMBLY / ASSEMBLY Step 4 Step 5 Step 6 Remove air valve end cap to expose air Remove air valve spool from air valve Remove pilot spool sleeve retaining snap valve spool by simply lifting up on end body by threading one air valve bolt into ring on both sides of center section with cap once air valve bolts are removed.
-
Page 19: Reassembly Hints And Tips
PR1560/PR1570 Bolted Metal DISASSEMBLY / ASSEMBLY Step 9 Check center section shaft seals for signs of wear. If necessary, remove the shaft seals with O-ring pick and replace. REASSEMBLY HINTS AND TIPS Upon performing applicable maintenance to the air distribution Maximum Torque Specifications system, the pump can now be reassembled. - Page 20 PR1560/PR1570 Bolted Metal DISASSEMBLY / ASSEMBLY SHAFT SEAL INSTALLATION Pre-Installation Tools After all the old seals have been removed, the inside of the bushing The following tools can be used to aid in the installation of should be cleaned to ensure no debris is left that may cause premature the new seals: damage to the new seals.
-
Page 21: Section 8: Exploded View And Parts List
PR1560/PR1570 Bolted Metal SECTION 8 EXPLODED VIEW AND PARTS LIST PR1560/PR1570 TJPR1560/PR1570-03 REV.A ALL CIRCLED PART IDENTIFIERS ARE INCLUDED IN REPAIR KITS WIL-11740-E-03... - Page 22 PR1560/PR1570 Bolted Metal EXPLODED VIEW AND PARTS LIST EXPLODED VIEW AND PARTS LIST EXPLODED VIEW AND PARTS LIST Description Qty. PR1560/AAAAA/…/ P/N PR1560/SSAAA/…/ P/N PR1570/SSAAA/…/ P/N AIR DISTRIBUTION COMPONENTS Pro-Flo V™ Assembly, Air Valve 1 04-2030-01 04-2030-01 04-2030-01 O-Ring (-225), End Cap (Ø1.859 x Ø.139) 04-2390-52-700 04-2390-52-700 04-2390-52-700...
- Page 23 PR1560/PR1570 Bolted Metal SECTION 9 SECTION 9 ELASTOMER OPTIONS ELASTOMER OPTIONS REDUCED-STROKE FULL-STROKE VALVE VALVE FULL STROKE DIAPHRAGMS BACKUP BACKUP MATERIAL DIAPHRAGMS BALLS SEATS DIAPHRAGMS DIAPHRAGMS 15-1010-51 15-1080-51 15-1147-51 Neoprene 15-1060-51 15-1010-52 15-1080-52 15-1147-52 ® Buna-N 15-1010-53 15-1080-53 15-1147-53 15-1010-54 15-1060-54 15-1080-54 15-1147-54...
- Page 24 A PSG brand Distributed by, Holland Air Pumps BV De Scheper 260 5688 HP Oirschot The Netherlands info@hollandairpumps.nl Where Innovation Flows Copyright 2023 PSG , a Dover Company ® ® ® ® Copyright 2023 PSG , a Dover Company ®...
