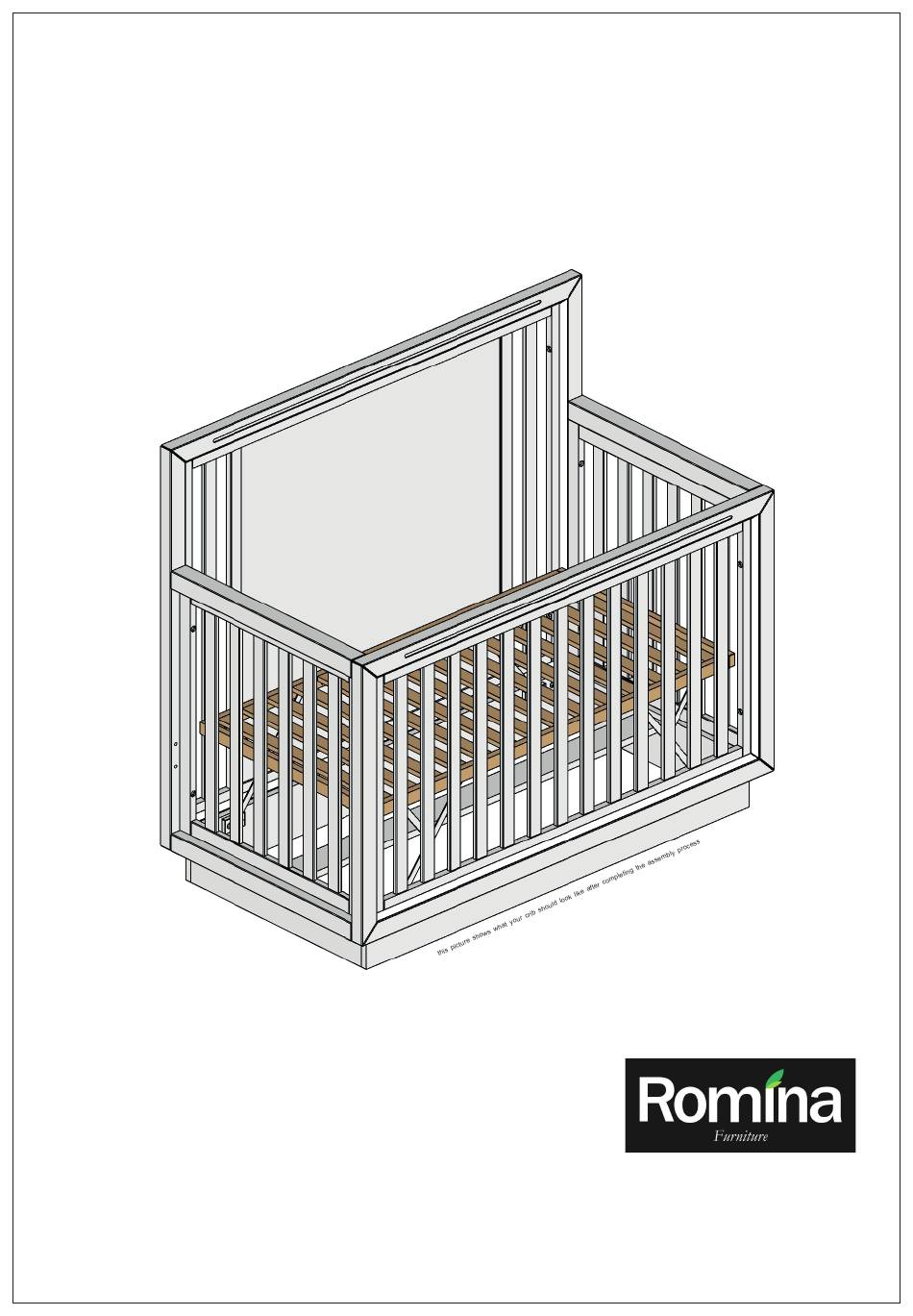

ASSEMBLY INSTRUCTIONS FOR THE
18501 QUADRO
READ
ALL
INSTRUCTIONS
BEFORE
ASSEMBLING
CRIB. KEEP THE INSTRUCTION
BOOKLET FOR FURTHER USE.
NEVER
USE
THE
PLASTIC
SHIPPING
BAGS
OR
PLASTIC FILM AS MATTRESS
COVERS, AS THEY CAN CAUSE
SUFFOCATION.
MAKE SURE TO SELECT THE
CORRECT
SIZE
MATTRESS.
INFANTS CAN SUFFOCATE IN THE
GAPS BETWEEN THE CRIB SIDES
AND A MATTRESS THAT IS TOO
SMALL.

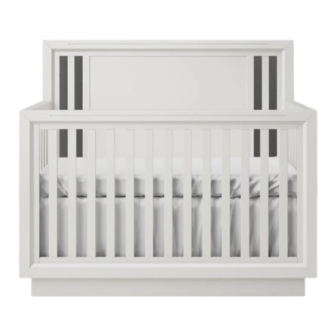

CONVERTIBLE CRIB
THE
WARNING: THE PROPER USE OF THIS
OTHER
CRIB IS IMPORTANT FOR YOUR BABY'S
SAFETY. IN ORDER TO KEEP YOU
BABY SAFE AND SECURE, AS WELL AS
AVOID POTENTIAL INJURY OR DEATH,
PLEASE READ AND BECOME FAMILIAR
WITH ALL THE WARNINGS, CAUTIONS
AND INSTRUCTIONS IN THIS BOOKLET.
KEEP THIS INSTRUCTION BOOKLET
FOR FURTHER USE.
DO NOT THROW THIS BOOKLET AWAY!
THIS
CRIB
CONFORMS
TO
APPLICABLE
REGULATIONS
PROMULGATED
CONSUMER PRODUCT SAFETY COMMISION AND
BY THE AMERICAN SOCIETY FOR TESTING AND
MATERIALS.
4300 Northlake Ct, Ste E, Charlotte,
NC 28216
Phone: 980-585-1460
www.rominafurniture.com
BY
THE
Advertisement
Related Manuals for Romina 18501 QUADRO
Summary of Contents for Romina 18501 QUADRO
- Page 1 ASSEMBLY INSTRUCTIONS FOR THE 18501 QUADRO CONVERTIBLE CRIB READ INSTRUCTIONS THIS CRIB CONFORMS APPLICABLE REGULATIONS PROMULGATED BEFORE ASSEMBLING CONSUMER PRODUCT SAFETY COMMISION AND CRIB. KEEP THE INSTRUCTION BY THE AMERICAN SOCIETY FOR TESTING AND MATERIALS. BOOKLET FOR FURTHER USE. NEVER...
- Page 2 FASTENERS, MISSING PARTS, OR SHARP EDGES BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE. SECURELY TIGHTEN LOOSE BOLTS AND OTHER FASTENERS. DO NOT USE CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT ROMINA FURNITURE FOR REPLACEMENT PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED. DO NOT SUBSTITUTE PARTS.
- Page 3 Wood, like any natural material is likely to present variations of grain and texture which will result in slight color variations or richness in the finish. These differences make each Romina Furniture item as beautiful and unique as you and your baby are.
-
Page 4: Box Content
Please refer to this number order to identify the correct one. Be sure to use the proper size in the event of needing to contact ROMINA and shape specified in the instructions. Be sure to COMPLETELY FURNITURE or your local supplier. - Page 5 STEP 1 (One adult is required in order to complete this step) Place the headboard (HB) of the crib horizontally, with its back facing downwards. Attach one of the long parts of the wooden base assembly (WBA) to the headboard using four 25 mm Allen bolts (4) and four large “internal star”...
- Page 6 STEP 2 (One adult is required in order to complete this step) Place the footboard (HB) of the crib horizontally, with its back facing upwards. Attach one of the long parts of the wooden base assembly (WBA) to thefootboard using four 25 mm Allen bolts (4) and four large “internal star”...
- Page 7 STEP 3 (Two adults are required in order to complete this step) Take both short parts of the wooden base assembly (WBA) and place the stabilizing bar (SB) in between them. Use four 25 mm Allen bolts (4) and four large “internal star” lock washers (6) to secure the stablizing bar (SB) in between the two wooden base assembly (WBA) parts, as shown in FIGURE 3.
- Page 8 STEP 4 (Two adults are required in order to complete this step) Place the left panel (LP) and right panel (RP) on top of the assembly resulted after completing STEP 1. Use four 50 mm Allen bolts (3) and four large “internal star” lock washers (6) to mount the left and right panel to the headboard (HB) of the crib as shown in FIGURE 4.
- Page 9 STEP 5 (Two adults are required in order to complete this step) With the headboard (HB) still laying on its back and the left and right panels attached, carefully insert the assembly resulted after completing STEP 3 into the long part of the wooden base assembly (WBA) and in between the left panel (LP) and right panel (RP).
- Page 10 STEP 6 (Two adults are required in order to complete this step) Place the footboard (FB) of the crib on top of the resulted assembly, while making sure the wooden dowels match the corresponding holes in the previously monted wooden base assembly (WBA) part. Use four 50 mm Allen bolts (3) and four large “internal star”...
- Page 11 FIGURE 7 WARNING! COMPLETELY TIGHTEN! STEP 7 (One adult is required in order to complete this step) There are three different positions for the mattress support (the highest one being intended for a newborn child and the lowest one for a child that is maximum 35” tall - see cautions note). You must adjust the height of the mattress support (depending on your child’s height), by inserting all 4 bolts and nuts (Y) in the same position (see FIGURE 7).
- Page 12 STEP 8 (Two adults are required in order to complete this step) With the crib still laying horizontally, carefully place the mattress support inside, inserting it through the top side of the crib. Use the provided Allen wrench to secure it to the mounting points of the wooden base assembly (WBA) by using four 15 mm Rounded head bolts (5) and four small “external star”...
- Page 13 NOTE: YOUR 18501 CONVERTIBLE CRIB CAN BE CONVERTED INTO A FULL SIZE BED WITH THE PURCHASE OF ROMINA ITEM CODE CKC 18501 (CONVERSION KIT FOR CRIBS, CODE 18501). THE ASSEMBLY INSTRUCTIONS FOR THE FULL SIZE BED OPTION CAN BE FOUND INSIDE OF THE CKC 18501 PACKAGE.
- Page 14 PERIODICALLY INSPECT CRIB FOR DAMAGED HARDWARE, LOOSE JOINTS OR SPLINTERED EDGES. DO NOT USE CRIB IF PARTS ARE DAMAGED OR BROKEN! CONTACT YOUR DEALER OR ROMINA FURNITURE FOR ASSISTANCE AND REPLACEMENT PARTS. PLEASE BE SURE TO HAVE YOUR MODEL CODE WRITTEN DOWN BEFORE YOU MAKE CONTACT.
- Page 15 THIS PAGE WAS INTENTIONALLY LEFT BLANK.
- Page 16 Regular cleaning with mild soap on a soft cloth, followed by a clean damp cloth, then a dry cloth, will preserve the original luster and beauty of this fine finish of your Romina Furniture product. Visit www.rominafurniture.com for updates, special offers and more new designs.
