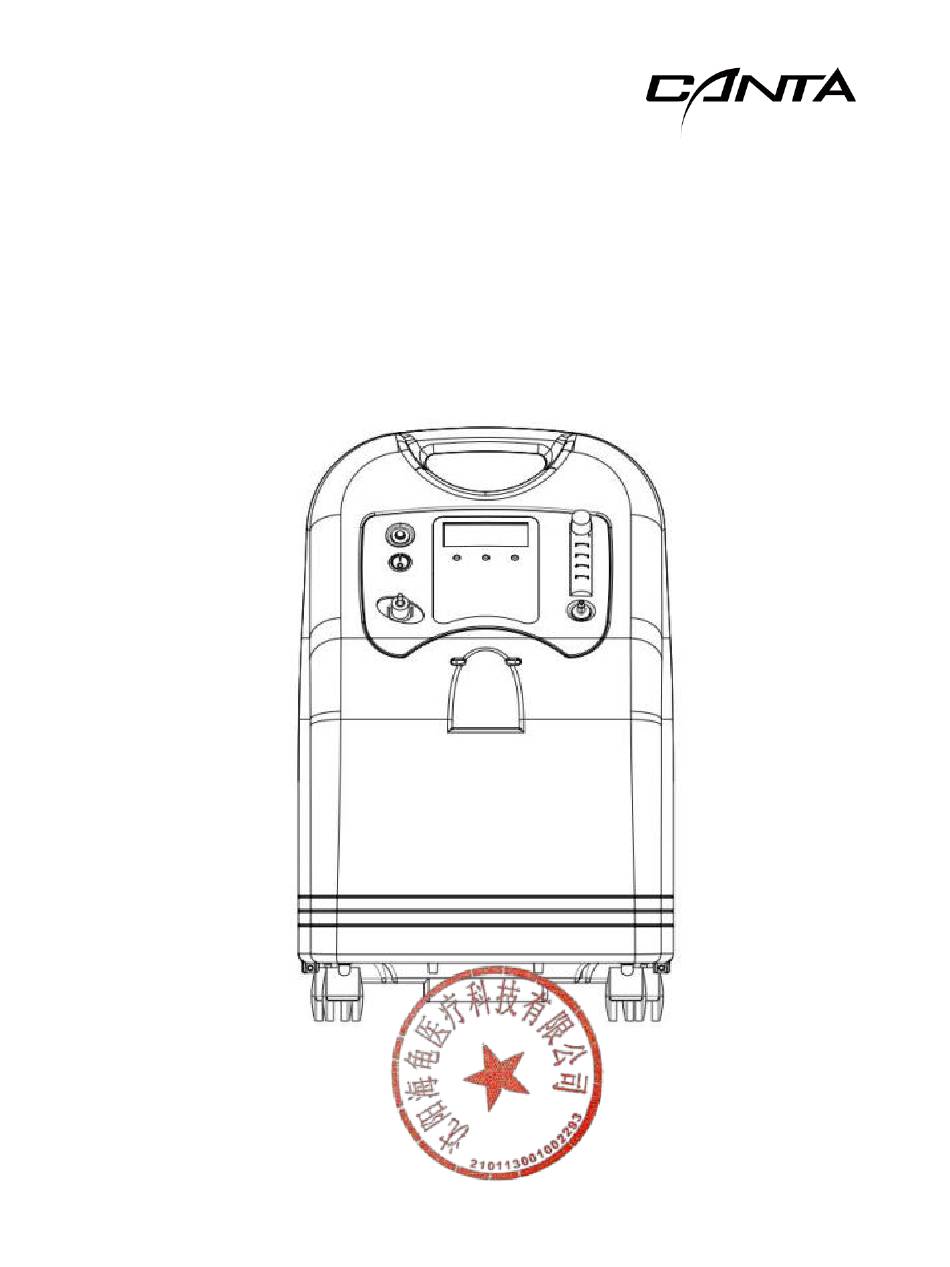

- Page 1 User Manual of V10-W-NS Oxygen Concentrator For Medical Use Software version:MOE.1.3.3.181212 Version: A / 1 Date: January 08, 2024 https://www.canta.com.cn/...
- Page 2 Shenyang Canta Medical Tech. Co., Ltd. Address: No.2-1 Puyu Road, Shenbei New District 110136 Shenyang, Liaoning Province PEOPLE'S REPUBLIC OF CHINA MedNet EC-REP GmbH Address: Borkstraße 10, 48163 Münster, Germany...
-
Page 3: Table Of Contents
Contents 目录 Foreword ................................4 Warning ................................4 Notice ................................5 Product introduction ............................7 Continuous operation conditions ........................8 Scope of application ............................8 Technical parameter ............................8 Symbols ................................10 Operation introduction ..........................11 1) Indicator light .............................11 3) Power swith ..............................11 9) Intake air filter ............................ -
Page 4: Foreword
Foreword Thank you for purchasing our products, hope you will be satisfied with our products. This manual contains functions, operation steps, attention, technical specifications, trouble shooting and so on. To ensure your efficient use of the machine, please have a close read of this operation manual before operating it. -
Page 5: Notice
●Only for manufacturer recommended spare parts according to the requirements specifications of the accessories, to ensure normal function and avoid the risk of fire. ●In the altitude of more than [maximum rated at an altitude of 3000 m] or over temperature(-5°C～ +40°C] or relative humidity above [15%～90 %] will affect the flow and the oxygen purity, even further affect the quality of treatment. - Page 6 ●Use the humidifier bottle with the machine, do not replace it at will, or else may cause patient uncomfortable or other harms. ●In case state indicator shows abnormal oxygen operator should declare to dealer or factory in favor of maintain. ●The humidifier, filter paper and filter are the items needed to clean, among which humidifier should be cleared every 3 days, and external filter paper should be cleared every 100 hours, and filter paper should be cleared every 1500 hours.
-
Page 7: Product Introduction
●The device should be set to use in an environment without dust, direct sunshine. Because of the small parts of accessories, in order to prevent children from accidentally swallowing, it should be placed away from children. ●To ensure the normal use of the device, please use accessories and detachable parts specified/authorized by manufacturer. -
Page 8: Continuous Operation Conditions
Contraindications: Patients with oxygen toxicity and oxygen allergy are forbidden. Technical parameter Model description Function code: V －－NS Oxygen concentrator W (Basic alarm) Rated Flow Rate 10 L/min. Model V10-W-NS Consumption (VA) Working Voltage (V/Hz) ~230 Flow Rate (L/min) 0-10 Concentration (%) ≥90... - Page 9 Outlet pressure (Kpa) 40±10% Sound Level dB(A) ≤55 Electrical Category Class IIb Net Weight (kg) Dimension (mm) W390×D337×H620 IP Classification IP 21 Atomization Particle ≤5μ reaches 90% only for atomization type...
-
Page 10: Symbols
Symbols Symbol Description This way up Fragile handle with care Keep dry Stacking limit number OFF(power） ON(power） Manufacturer Authorized Representative in the European Community Refer to instruction manual/booklet No open flame; Fire, open ignition source and smoking prohibited P0003 Alternating current Batch code Use-by date Sterilized using ethylene oxide... -
Page 11: Operation Introduction
Operation introduction 1) Indicator light Total 3 indicator lights, and the code of them are 1,2,3from left to right, and their indication for each model are as follows: 1. Power indicator (green), Power-off alarm (red) 2. Trouble indicator, proper functioning(off), defective happened(Red) 3. -
Page 12: Intake Air Filter
7) Oxygen outlet mouth 8) Humidifier Dampen bottle also called oxygen humidifier which used for humidifying oxygen and preventing throat and nasal mucosa stimulated by dry oxygen and dry sputum difficult to spit out. 9) Intake air filter Once need to replace, replace it by special assembly for the machine. 10) Data plate 11) Power socket 12) Exhaust Port... -
Page 13: Self-Diagnoses Function
5. Nasal oxygen cannula by ethylene oxide sterilization, before use to ensure that the packaging in good condition, packing damage do not use. Put the Nasal oxygen cannula inlet end of wetting bottle on the export of appropriate unobstructed flow of gas to the Nasal oxygen cannula, can hear or feel the Nasal oxygen cannula of the outlet of the air. -
Page 14: Maintenance Description
Beep- Beep- Beep- Beep- Beep- Beep- than 1 minute Beep- Beep- Beep- Beep- Beep- Beep- Beep- Beep Beep- Beep Beep- Beep Alarm volume dB(A) Visual alarm Indicator flash Indicator flash Indicator flash Indicator flash Indicator always bright Alarm light Yellow color Alarm delay Alarm preset... -
Page 15: Condition For Transportation And Storage
then rinse the filter window by clean water, please wait the filter window dry in air. 3.Clean air intake filter Clean air intake filter an interval about 1000 hours, open the filter window on the back casking, then unplug and replace the filter bottle inside. 4. -
Page 16: Connection Diagram
Trouble Causes Solution 1. No connection between circuit of 1. Check out whether switch plug, oxygen generator and power. power line in good connection. operation 2. Circuit of fuse protector broken. 2. Replace the fuse protector and find after power 3. -
Page 17: Emc Information
2.The Oxygen Concentrator for medical use is intended used in a HOME HEALTHCARE ENVIRONMENT. ESSENTIAL PERFORMANCE: 1.Oxygen flow rate and accuracy: V10-W-NS: 10L/min, ±10% 2.Oxygen outlet concentration level: ≥90% (reach stated oxygen concentration level after turning on the machine for five minutes) 3.Oxygen outlet pressure: 40Kpa±10%... -
Page 18: Emi Compliance Table
The use of accessories, and cables other than those specified by Shenyang Canta Medical Tech. Co., Ltd., with the exception of accessories and cables sold by Shenyang Canta Medical Tech. Co., Ltd. of The Oxygen Concentrator for medical use as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of the Oxygen Concentrator for medical use. - Page 19 Proximity fields from RF wireless IEC 61000-4-3 Refer to table 3 communications equipment Rated power IEC 61000-4-8 30A/m 50Hz or 60Hz frequency magnetic fields Table 3 – Proximity fields from RF wireless communications equipment Test frequency(MHz) Band(MHz) Immunity test levels 380-390 Pulse modulation 18Hz,27V/m 380-390...
-
Page 20: Classify
Classify Classify by type of Anti-shock: class Ⅱ of External power supply device. Classify by degree of resistance to electric shock: BF application part; Classify by degree of Anti-entry liquid: Non-anti-entry liquid device; Classify by safety level when use it with flammable anesthetic gas mixed with air and air, flammable anesthetic gas mixed with nitrous oxide: can’t use with flammable anesthetic gas mixed with air and air, flammable anesthetic gas mixed with nitrous oxide. - Page 21 Manufacturer information: Shenyang Canta Medical Tech. Co., Ltd. No.2-1 Puyu Road, Shenbei New District, Shenyang, Liaoning Province, People’ s Republic of China Tel: +86(24)-86728299 Fax: +86(24)-86718298 E-mail: canta@canta.com.cn www.canta.com.cn...
