Paxton Access Ins-30000 Net2 Manual

13/03/2006

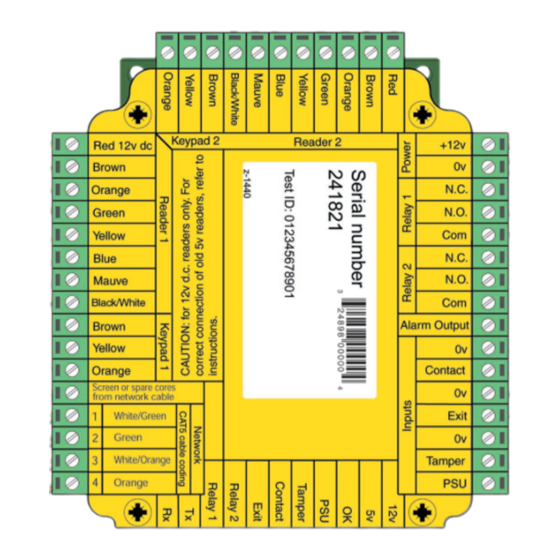

Ins-30000 Net2 control unit
A full Net2 installation manual is available at
(0)845 838 1716.
Reader/keypad
All other wires
from CAT5/screen
from Beldon 8723
From previous
ACU
* When connecting a fail open lock, the link wire to 0v must be connected from Normally closed (N.C.)
IMPORTANT NOTE:
The following readers are 5v:
485-374 TOUCHLOCK keypad stainless steel
600-628 TOUCHLOCK membrane keypad
When using these readers the control unit must be configured to 5v
CONNECTING THE READER.
ACU's label (see picture)
END OF LINE TERMINATION RESISTORS
These must be wired into the beginning and end of the data line
Resistor rating must be 120 ohm
READER & DATA CABLE SCREENS
Must be connected throughout
Reader and keypad screens should be connected to the Black/White
terminals
http://paxton.info/49
Reader/keypad
(optional)
To next ACU
This is done via a jumper found under the
or call the communications team on +44
To 12v dc
Power Supply
(for Paxton exit buttons
Tamper switch
GREEN
(optional)
to reader terminals)
BEFORE
Paxton Access
*
Fail closed
release
Normally closed
door contact
(optional)
Exit button
and RED wires go
