Summary of Contents for Walker Edison BR3DSLDR-T

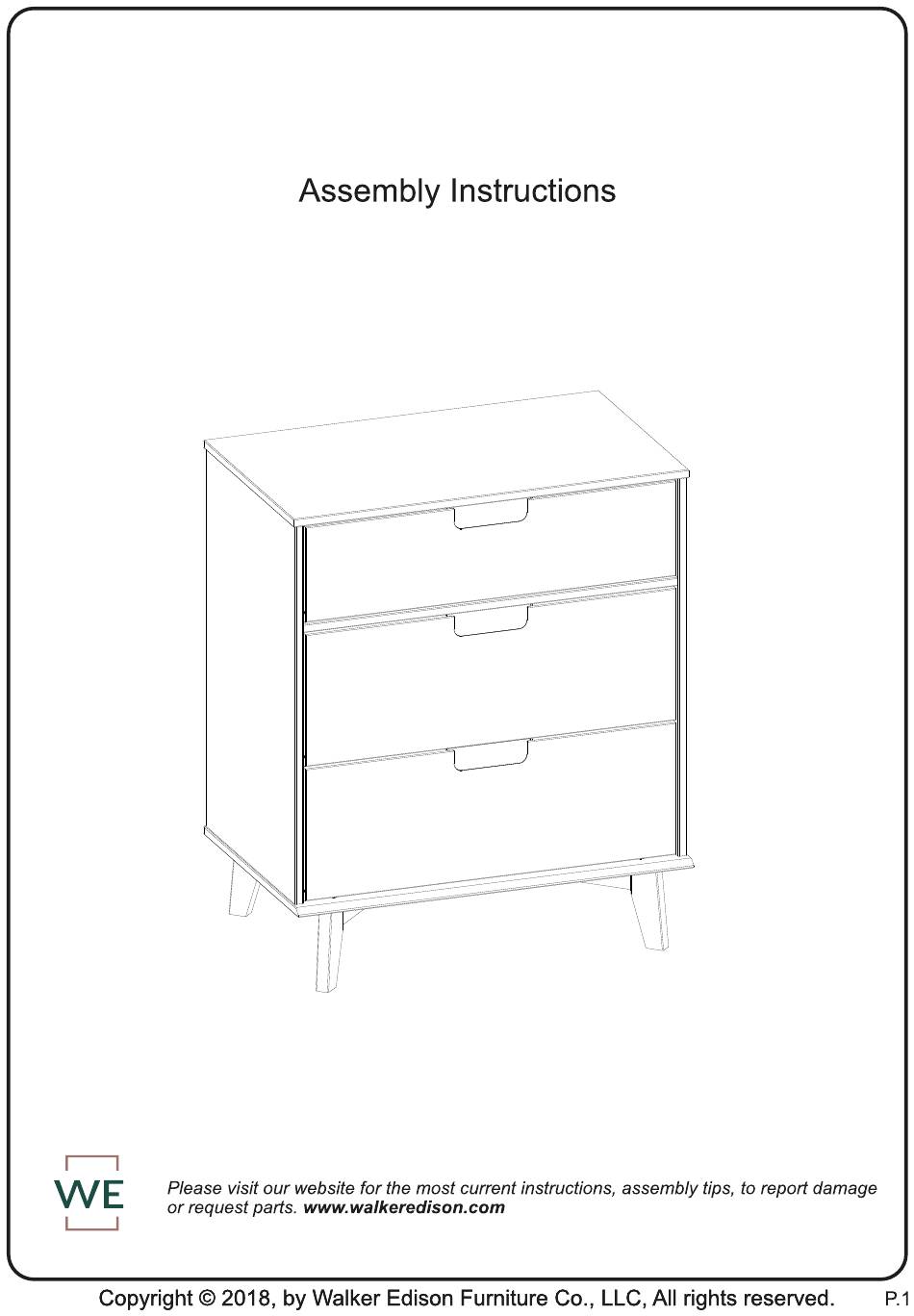

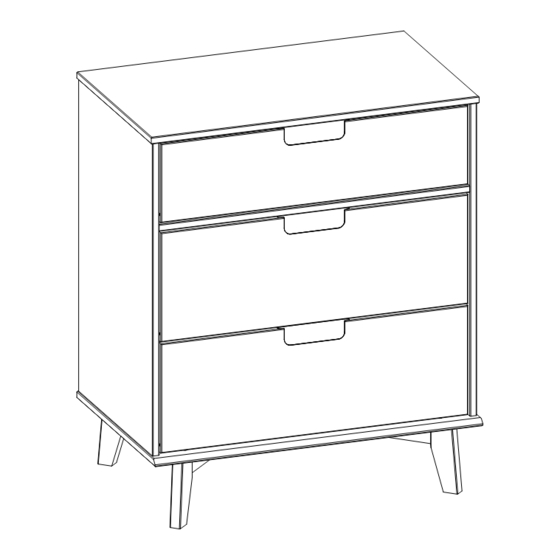

  • Page 1 Item: BR3DSLDR-T Revised 10/2023-V1...
  • Page 2 , hammmer and tape measure...
  • Page 3: Warning Label

    The side drawer with WARNING LABEL, should be mounted in highest drawer. Left drawer side Top panel Right drawer side 02 pcs Left side panel Drawer front 02 pcs Right side panel 02 pcs Bottom panel Drawer back Front rail 03 pcs Drawer bottom 01 pc...
  • Page 4 Ø8*30mm Wooden dowel Ø10*20mm Wooden dowel Ø4*25mm Screw Ø3,5*30mm Screw Ø4,0*40mm Screw Ø6*31mm Cam bolt Screw Ø7*60mm Hex Key Wooden dowel Ø8*40mm Ø15*11mm Cam lock Wall anchor Washer Ø6*35mm Plastic bush Ø4,0*16mm Screw...
  • Page 5 Attention to the Step 1 dowel length: ø10*20mm Ø10*20mm Insert wood dowel (B) into part 17. Step 2 Insert wood dowel (A) into parts 2, 3, 5, 7, 8, 9, 11, 12, 18 and 19. Ø8*30mm...
  • Page 6 Step 3 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten. Attach cam bolt (H) into the holes in parts 1, 2, 3, 13, and 16 with Phillips head screwdriver.
  • Page 7 Step 4 Secure parts 17 to part 2 and 3 with screw (C) and Phillips head screwdriver. Ø4*25mm...
  • Page 8 Step 5 Attach part 5 to part 2 and 3. Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
  • Page 9 Step 7 Attach part 1 to parts 2 and 3. Insert Cam lock (J) in the hole of the parts 2 and 3, and attach with Phillips head screwdriver. Ø15*11mm Step 8 Attach part 7 to part 1.
  • Page 10 Step 9 Use screw (D) to attach part 6 to part 7 with a Phillips head screwdriver. Ø3,5*30mm Step 10 Secure part 4 to part 2 and 3 with screw (E) and Phillips head screwdriver. Ø4,0*40mm P.10...
  • Page 11 Step 11 Secure part 8 to part 4 with screw (D) and Phillips head screwdriver. Ø3,5*30mm Step 12 Attach part 9 to part 10. Do these steps twice. Make sure that the assembly is mirrored. Step 13 Use screw (D) to attach part 9 to part 10 with a Phillips head screwdriver.
  • Page 12 Step 14 Insert wood dowel (A) in the part 9. As shown above. Ø8*30mm Step 15 FRONT Make sure that the screw of the assembled leg is turn back Ø7*60mm Attach assembled leg to part 4 from inside the unit with bolt (G) and hex key (H). P.12...
  • Page 13 Step 16 Attach part 9 to part 4 with Screws (D) and Phillips head screwdriver. Ø3,5*30mm Step 17 FRONT Insert wood dowel (A) into the front hole in the drawer rails 17. Ø8*30mm P.13...
  • Page 14 Step 18 Name and address of the supplier and date of production. Use screw (D) to attach part 7 to part 1 and to part 4 with a Phillips head screwdriver. Ø3,5*30mm Step 19 Attach part 18 and 19 to part 16. Insert Cam lock (J) into the holes in the parts 18 and 19, and attach with Ø15*11mm Phillips head screwdriver.
  • Page 15 Step 20 Insert panel 15 into groves and secure part 20 with screws (D) and Phillips head screwdriver. Ø3,5*30mm Step 21 Attach part 11 and 12 to part 13. Insert Cam lock (J) into the holes in the parts 11 and 12, and attach with Phillips head screwdriver.
  • Page 16 Step 22 Insert panel 15 into groves and secure part 14 with screws (D) and Phillips head screwdriver. Ø3,5*30mm Step 23 The side drawer with WARNING LABEL, should be mounted in highest drawer. Insert wood dowel (I) on the inside of all drawers, with the drawer inside the unit after having passed the wood dowel that is in the drawer slide.
  • Page 17 Step 24 Attach part (K) with screw (N) and washer (L), in the frame of superior panel unit using Phillips head screwdriver. With drilling machine make one hole in the wall, insert part (M) in the hole. Secure part (K) with screw (E) and washer (L) in the wall using a Phillips head screwdriver.
  • Page 18 Assembly Complete! P.18...
