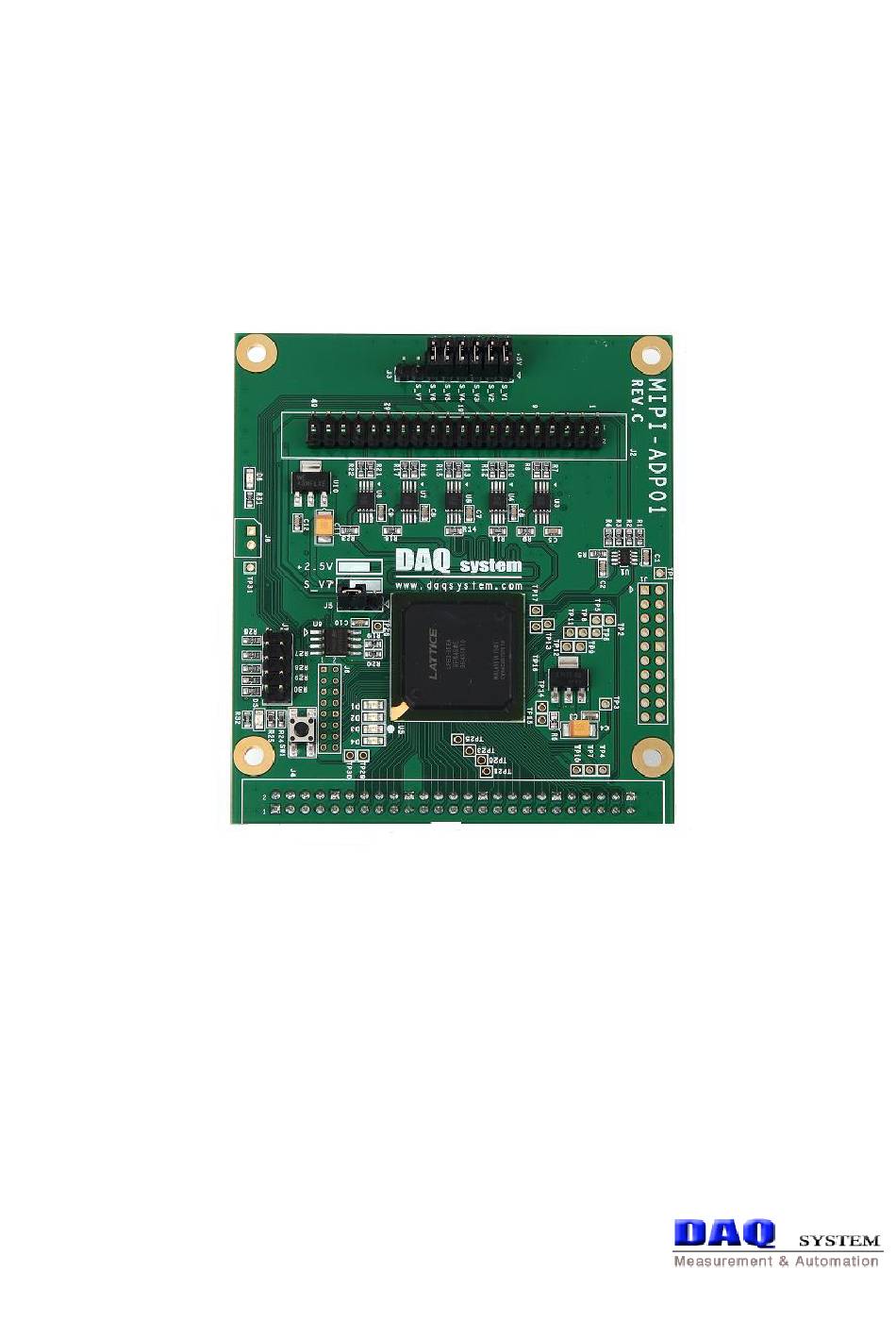

MIPI-ADP01
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system MIPI-ADP01
Summary of Contents for DAQ system MIPI-ADP01
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
MIPI-ADP01 User’s Manual Contents 1. MIPI-ADP01 Introduction --------------------------------------------------------- 2. MIPI-ADP01 Function -------------------------------------------------------------- J1 Connector ------------------------------------------------------------------------------ 2-2 J3 Connector --------------------------------------------------------------------------------- 2-3 J4 Connector ------------------------------------------------------------------------ 2-4 J5 Connector --------------------------------------------------------------------------------- 2-5 SW1 ------------------------------------------------------------------------ Appendix A-1 Board Size ----------------------------------------------------------------------------------- 14 A-2 Repair Regulations ------------------------------------------------------------------------... -
Page 3: Mipi-Adp01 Introduction
MIPI-ADP01 User’s Manual 1. MIPI-ADP01 Introduction MIPI-ADP01 board is a function of transferring to the USB-DIO01 board after being converted into parallel signals received from the MIPI serial signal through MIPI-SENSOR01. The maximum transmission speed is about 600 ~ 700Mbps/Lane. - Page 4 MIPI-ADP01 User’s Manual The block diagram of MIPI-ADP01 is in Figure 1-2. All functions are controlled by the FPGA, and also, the power received from USB3-DIO01 supply to MIPI sensor board. USB3-DIO01 MIPI-SENSOR01 MIPI-ADP01 MIPI Sensor Upto 800MHZ 4Lane Data...
- Page 5 MIPI-ADP01 User’s Manual Some of the features of the I2C-related and USB3-DIO01 sensor INI files, they are as follows: This will be described with reference to the USB3-DIO01 sample program. (We have been promoting integration of Input/Output function, so the sample program may be changed.)
- Page 6 MIPI-ADP01 User’s Manual Example 1) OV5640(5M).ini File Structure [REGISTER] Slave 0x3C //change slave ID as Sensor SLEEP 0x3103 0x11 0x3008 0x82 0x3008 0x42 0x3103 0x03 0x3017 0x00 0x3018 0x00 0x3034 0x1a 0x3035 0x12 0x3036 0x69 0x3037 0x13 0x3108 0x01 0x3630 0x36...
- Page 7 MIPI-ADP01 User’s Manual When you want to control the FPGA of MIPI-ADP01, Slave Address will be fixed to 0x14. The MIPI control signals that you want have to be written the data to the corresponding address register. Example 2) When the FPGA controls, SLAVE ADDRESS(7bit) is fixed to 0x14.
- Page 8 MIPI-ADP01 User’s Manual I2C Read / Write block is composed of a function associated with the transmission of the I2C. (1) “Init” Button It will initiate the resources for the I2C system. (2) “Write” Button Transmit the data through I2C for control to MIPI or CMOS camera.
-
Page 9: Mipi-Adp01 Function
MIPI-ADP01 User’s Manual 2. MIPI-ADP01 Function MIPI-ADP01 names and functions of each are described below. MIPI-ADP01 Board MIPI-ADP01 REV. B S_V1 S_V2 S_V3 S_V4 S_V5 S_V6 S_V7 Name Description I2C (Low Voltage Level Translator) U2, U10, U16 1.3V, 2.5V, 3.3... -
Page 10: J1 Connector
MIPI-ADP01 User’s Manual 2-1 J2 Connector It is connected to the MIPI SENSOR board, signals are as follows. 25 27 [Figure 2-1. J2 Connector (Top View)] [Table 1. J2 Connector Description] Name Description Remark SEN_VOUT1 User Defined Power Connected S_V1 of J3... -
Page 11: J3 Connector
MIPI-ADP01 User’s Manual DATAN_3 MIPI 4 Lane Negative Ground Ground Ground CLKP MIPI Clock Positive Ground CLKN MIPI Clock Negative MCLK Master Clock Ground Ground Ground SEN_VOUT5 User Defined Power Connected S_V5 of J3 SEN_VOUT6 User Defined Power Connected S_V6 of J3 2-2 J3 Connector The J3 connector is used to supply external power to the MIPI sensor. -
Page 12: J4 Connector
MIPI-ADP01 User’s Manual 2-3 J4 Connector The following figure shows the external input and output board of J4 connector pin map. It is used to the Image Control Signals (Hsync, Vsync, Data Enable, Clock). 25 27 [Figure 2-3. J4 Connector (Top View)] [Table 2. -
Page 13: J5 Connector
MIPI-ADP01 User’s Manual DIO_22 Digital Input/Output 22 DIO_23 Digital Input/Output 23 DIO_24 Digital Input/Output 24 DIO_25 Digital Input/Output 25 DIO_26 Digital Input/Output 26 DIO_27 Digital Input/Output 27 DIO_28 Digital Input/Output 28 DIO_29 Digital Input/Output 29 DIO_30 Digital Input/Output 30 DIO_31... -
Page 14: Sw1
MIPI-ADP01 User’s Manual 2-5 SW1 It is 3.3V Power Reset Switch (Low Active). SW_RST Ground [Figure 2-5. SW1 switch]... -
Page 15: Appendix
MIPI-ADP01 User’s Manual Appendix A-1 Board Size The external sizes of the board are as follows. 76.2 12.4 88.9 < Top View >... -
Page 16: Repair Regulations
MIPI-ADP01 User’s Manual A-2 Repair Regulations Thank you for purchasing a DAQSYSTEM product. Please refer to the following regarding Customer Service regulated by DAQSYSTEM. (1) Read the user manual and follow the instructions before using the DAQSYSTEM product. (2) When returning the product to be repaired, please write down the symptoms of the failure and send it to the head office. - Page 17 MIPI-ADP01 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
