Summary of Contents for Canta HPT-10

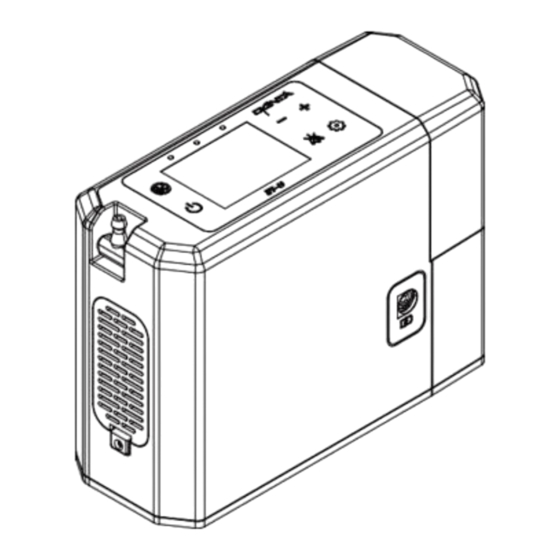

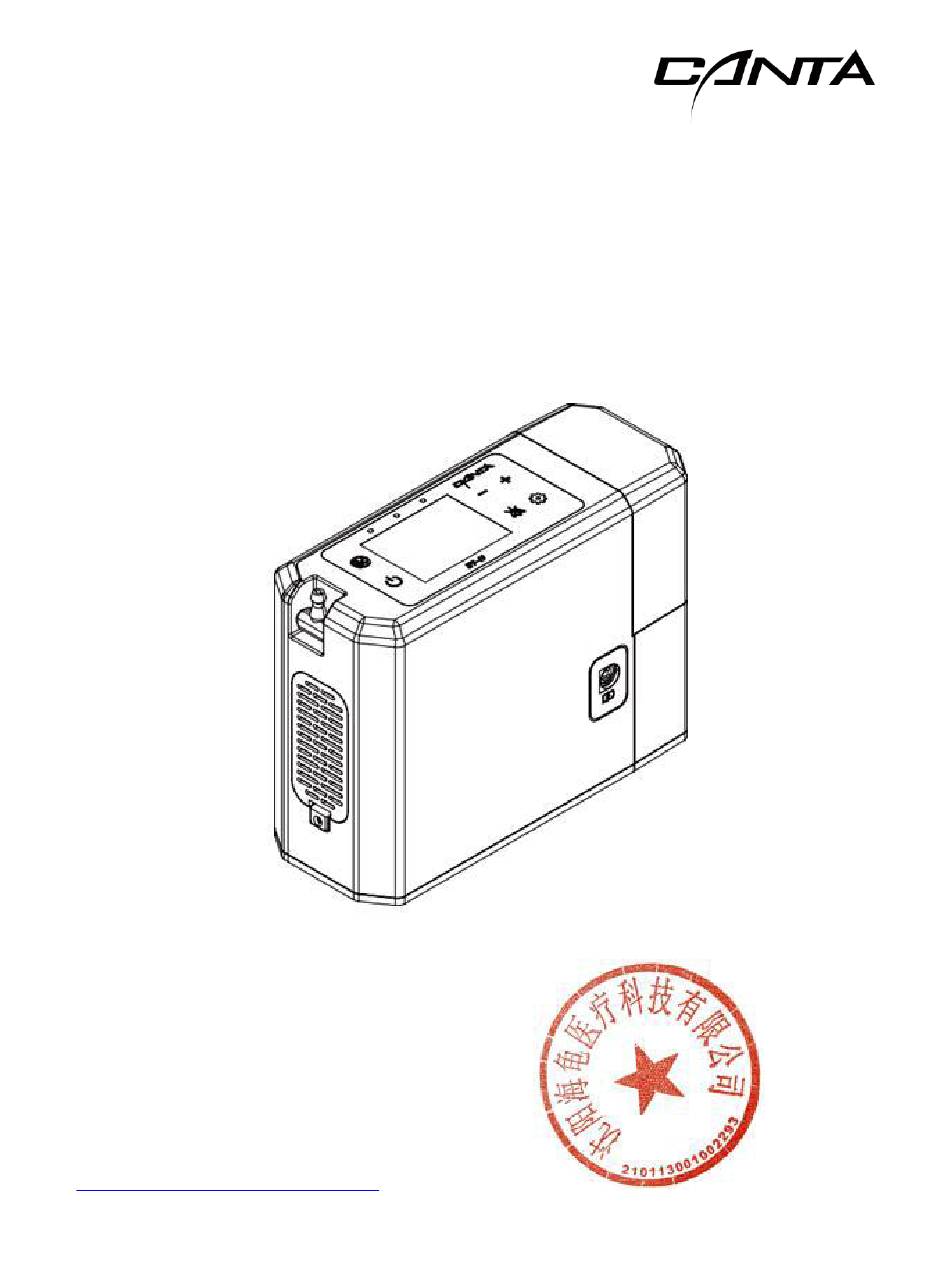

- Page 1 User Manual of Portable Oxygen Concentrator DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL. Version: A / 2 Date: March 7, 2024 https://www.cantamedical.com/products/...
- Page 2 Shenyang Canta Medical Tech. Co., Ltd. Address: No.2-1 Puyu Road, Shenbei New District 110136 Shenyang, Liaoning Province PEOPLE'S REPUBLIC OF CHINA MedNet EC-REP GmbH Address: Borkstraße 10, 48163 Münster, Germany...
-
Page 3: Table Of Contents
Contents Safety notice..............................3 Attention................................3 Product Introduction............................4 Operating Environment............................ 6 Transport and Storage Environment........................ 7 Specifications..............................7 Symbols................................8 Unit Components..............................9 User Control..............................11 Operating Instruction............................. 11 Power Supplies............................... 11 Maintenance..............................12 Alarm Indicators............................. 12 Troubleshooting..............................13 Using lifetime..............................13 Accessories..............................14 Accessories Specification..........................15 Circuit Diagam..............................16 EMC Information............................ -
Page 4: Safety Notice
Foreword Thank you for purchasing our products, hope you will be satisfied with our products. This manual contains functions, operation steps, attention, technical specifications, trouble shooting and so on. To ensure your efficient use of the machine, please have a close read of this operation manual before operating it. -
Page 5: Attention
●If you feel uncomfortable or have a medical emergency during oxygen treatment, immediately seek medical help to avoid injury. ●When the elderly, or other patients are unable to express discomfort, additional monitoring measures or distributed alarm systems can be used to communicate discomfort and medical emergencies to the responsible caregivers to avoid injury. -
Page 6: Product Introduction
●Oxygen output should be set individually for each patient, according to equipment and accessory configurations ●The position of the disposable nasal oxygen cannula in the nostrils and the direction of the air outlet determine the amount of oxygen delivered to the patient's respiratory system. ●Equipment maintenance is prohibited in use. -
Page 7: Operating Environment
Working principle: CANTA Portable Oxygen Concentrator use Pressure Swing Adsorption principle to separate the oxygen in the air from nitrogen and other gases. At normal temperature, connect with the power, it can be continuously separated ≥90% purity of oxygen from air. - Page 8 Product model HPT-10 Sound 55dB(A) Preheat time 5min Oxygen concentration ≥90% Rated flow 1L/min Gear setting pulse Breathing rate Pulse volume(ml) Flow setting and pulse volume IP Clssitication IP21 Breath rate Max 40/ min Respiration sensor sensitivity 25Pa Max pressure of outlet port 40Kpa±10%...
-
Page 9: Symbols
Net weight 1.95KG Size 217*85*156mm Shock proof type classification ClassII Shock proof degree classification BF Application part Note: The corresponding flow error of each gear is ±15% Symbols Graphical symbols Description Date of manufacture Authorized representative in the European Union Serial number Manufacturer CE mark: indicates that the device complies with the EU... -
Page 10: Unit Components
Caution: indicates the need for the user to consult the instructions for use for important cautionary information such as warnings and precautions that cannot, for a variety of reasons, be presented on the medical device itself. Medical device Unique device identifier Fragile, handle with care Keep dry This way up... -
Page 11: User Control
User Control Switch: Press for more than 1 second to start/stop function Mute: Temporarily turn off the button and alarm sound, the sound will be automatically restored after 10 minutes Gear control: Used to select the gear of pulse flow, you can view the current pulse flow gear on the display. -
Page 12: Operating Instruction
Press the setting key again to set the backlight time, breathing intensity, output mode and language selection in turn. When selecting a language option, press the setting key again to return to the main interface. Backlight time: When the selected area is in the backlight time option, press the +/- key to switch the duration of the screen backlight after no operation (1 minute, 10 minutes, 30 minutes, 60 minutes and never extinguished) Respiration intensity: When the selected area is in the breathing intensity option, press the... - Page 13 Caution: non-recommended nasal oxygen cannula may affect performance Connect your cannula to the oxygen outlet, make sure the connection is firm before using. Press the ON/OFF button for one second, and then start the oxygen concentrator. Press the buttons of increase (+) or decrease (-) to set the flow rate. Each time you turn on the unit, a brief alarm sounds.
-
Page 14: Power Supplies
Press the ON/OFF button for one second to turn off the oxygen concentrator. Power Supplies This oxygen concentrator can powered in two different ways: (1) Rechargeable battery pack (2) Adapter Operation information please refer to the following sections. Note: Please use power supply from original supplier and follow rules in user manual. Using a power supply or battery pack beyond original supplier, will result in equipment damage or malfunctioning. - Page 15 Press and hold the battery release button inward and then pull up to slide the battery pack out. Check battery pack charge status If want to check the status of the battery installed in the oxygen concentrator, referring to the battery icon and estimate value on the LCD. General charging information When the battery is installed in the oxygen concentrator and connected to an external power source, the oxygen concentrator will charge the battery pack without exception.
- Page 16 AC power The AC power supplied with your portable oxygen concentrator will power your oxygen concentrator wherever you are. AC power includes the following: AC power adapter, working power conditions are 100V-240V, 50Hz-60Hz. The AC power cord is used to connect the AC power adapter and the corresponding AC socket.
-
Page 17: Maintenance
Maintenance Turn off the unit, clean the plastic housing periodically by wiping with a lint-free cloth or with a water-based washing liquid applied with a damp cloth or sponge. Use no oil, grease, or petroleum-based or other flammable products with the oxygen-carrying accessories or the concentrator unit. -
Page 18: Alarm Indicators
Alarm Indicators Alarm status Technical alarm Low oxygen High temperature Low pressure Low battery Network Aitomatic Name of alarm concentration alarm alarm alarm power alarm mode alarm Alarm level Medium High High High Medium Alarm mode Sound-light alarm Beep- Beep- Beep- Beep- Beep- Beep- Beep- Beep-... -
Page 19: Troubleshooting
Low oxygen purity alarm: Turn off the oxygen concentrator and contact the manufacturer or service provider for repair. Temperature alarm: turn off the oxygen concentrator and check whether the cooling port of the oxygen concentrator is well ventilated. After 30 minutes, turn it on again. If this alarm still occurs, please contact the manufacturer or service provider for repair. -
Page 20: Using Lifetime
supplier for replacement of Molecular sieve Using Lifetime Design life of the whole machine: 10,000 hours or 2 years (whichever comes first) Battery group: 300 full charge and discharge Accessories Portable oxygen concentrator 1 unit User Manual 1 piece Disposable nasal oxygen cannula 2 pcs Quality certification 1 piece Air intake filter cotton 20 pcs( for replacement) Warranty Card 1 piece... -
Page 21: Emc Information
EMC Information This equipment has been tested and found to comply with the limits for medical devices to the Electromagnetic Compatibility standard. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed according with the instructions, may cause harmful interference to other devices. - Page 22 Guidance and Manufacturer’s declaration-electromagnetic immunity The device image intended for use in the electromagnetic environment specified below. The user of the device image intensifier should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic Test level environment-guidance...
- Page 23 Guidance and Manufacturer’s declaration-electromagnetic immunity The device isintended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic Test level environment-guidance...
- Page 24 and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Model 006 is used exceeds the applicable RF complicance level above, the Model 006 should be observed to verify normal operation.
