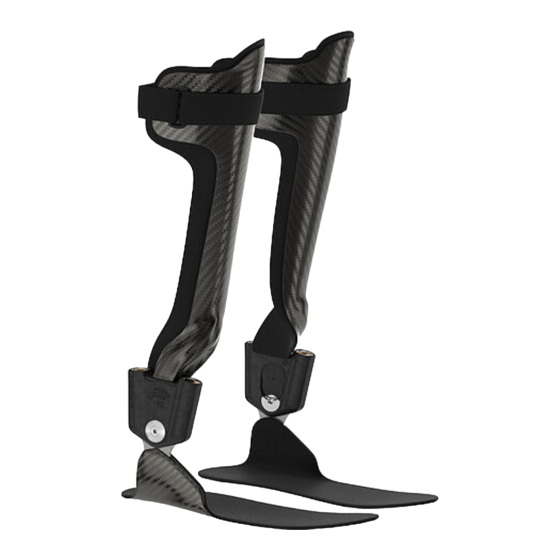

- Page 1 Product Manual for Qualified Specialists in Orthopaedic Technology NEURO SWING FIT AFO Test Orthosis NEURO SWING FIT AFO Download: www.fior-gentz.com Download: www.fior-gentz.com...
-
Page 2: Table Of Contents
11.2 Dirt Removal 12. Spare Parts 12.1 Exploded View Drawings Padding Set and NEURO SWING Carbon 12.2 Spare Parts for the NEURO SWING FIT AFO Test Orthosis 12.2.1 Padding Set 12.3 Spare Parts for the NEURO SWING Carbon System Ankle Joint 12.3.1 Sliding Washers... -
Page 3: Product Manual For Qualified Specialists In Orthopaedic Technology Neuro Swing Fit Afo Test Orthosis
Product Manual for Qualified Specialists in Orthopaedic Technology NEURO SWING FIT AFO Test Orthosis Information This product manual is addressed to qualified specialists in orthopaedic technology and does not contain any notes about dangers which are obvious to them. To achieve optimal test results, please instruct the patient and/or care team in the use of the product. -
Page 4: Use And Indication
Use and Indication The NEURO SWING FIT AFO test orthosis with premounted NEURO SWING Carbon system ankle joint is a preproduced orthosis used as test orthosis for a later treatment with a custom-made AFO to which a system ankle joint with dynamic dorsiflexion and plantar flexion stop is mounted, such as the NEURO SWING. It is only meant for sale to a qualified specialist in orthopaedic technology and may not be handed over to the patient permanently. -
Page 5: Scope Of Delivery
Scope of Delivery The NEURO SWING FIT AFO test orthosis is only available as a set consisting of a left and a right test orthosis. Description Quantity premounted NEURO SWING FIT AFO test orthosis with NEURO SWING Carbon system ankle joint (fig. 1) cloth bag made of cotton for orthoses (without fig.) -
Page 6: Selection Of A Suitable Shoe
Assembly Instructions The NEURO SWING FIT AFO test orthosis is delivered with a premounted NEURO SWING Carbon system ankle joint. All functions are checked beforehand. You have to disassemble the system joint for maintenance. To ensure an optimal functioning, follow the assembly instructions below. Secure the screw with the torque specified in paragraph 9.4. -
Page 7: Checking The System Joint's Free Movement
4 Place the sliding washers onto both sides of the system stirrup (fig. 3). 5 Slide the system stirrup from below into the joint case (fig. 4). Make sure that the sliding washers remain in the correct position. To do so, use the sliding washer centring pin. -
Page 8: Securing The Screw
Securing the Screw The screw is secured after the maintenance of the orthosis. 1 Secure the screw for the joint case (fig. 6) with the torque corresponding to the system width and LOCTITE® 243 medium strength. 2 Let the adhesive harden (final strength after approx. 24 hours). System Width Screw for Joint Case 12mm... -
Page 9: Variable Spring Force
10.3 Variable Spring Force The spring force can be changed by exchanging the spring units. Insert a spring unit into the spring duct that corresponds with the required spring force. There are five spring units with spring forces ranging from normal to extra strong (fig. 11). Note that the spring unit determines the maximum possible range of motion. -
Page 10: Replacing The Sliding Washers
14 11.2 Dirt Removal The NEURO SWING FIT AFO test orthosis can be used by several persons. Therefore, it is recommended to clean the NEURO SWING FIT AFO test orthosis after each use. If there is no visible soiling, the entire orthosis should be cleaned/sprayed with a disinfectant suitable for hospitals and completely dried before the next use. -
Page 11: Spare Parts
12. Spare Parts The following spare parts are available in case something on your NEURO SWING FIT AFO test orthosis has to be replaced: 12.1 Exploded View Drawings Padding Set and NEURO SWING Carbon fig. 16 fig. 15... -
Page 12: Spare Parts For The Neuro Swing Fit Afo Test Orthosis
12.2 Spare Parts for the NEURO SWING FIT AFO Test Orthosis 12.2.1 Padding Set Article Number for System Width Fig. 12mm, left 12mm, right Orthosis Size Padding Set Components PL3751-XXS/L pre-cut padding material, black, left PL3751-XXS/R pre-cut padding material, black,... -
Page 13: Spare Parts For The Neuro Swing Carbon System Ankle Joint
Article Number for System Width Fig. 20mm, left 20mm, right Orthosis Size Padding Set Components PL3755-L/L pre-cut padding material, black, left PL3755-L/R pre-cut padding material, black, right AC5205-L/P/L AC5205-L/P/R KV1004-L550 hook and loop fastener with loop GP1000-L130 strap pad GP1201-L100 strap pad holder PL3755-XL/L pre-cut padding material, black, left PL3755-XL/R pre-cut padding material, black,... -
Page 14: Spring Units
12.3.2 Spring Units Article Number for System Width Fig. 16 Item 12mm 14mm 16mm 20mm Description O-ring for securing the VE3771-085/13 VE3771-100/12 VE3771-12/12 VE3771-15/13 spring unit spring unit, blue, normal, SF5801-C/15/03 SF5802-C/15/05 SF5803-C/15/07 SF5805-C/15/18 max. 15° range of motion spring unit, green, SF5801-C/15/06 SF5802-C/15/11 SF5803-C/15/15 SF5805-C/15/25 medium, max. 15°... - Page 15 Mounted Sliding Washer for Left Orthosis Mounted Sliding Washer for Right Orthosis 1. GS ___________ - ________ 1. GS ___________ - ________ 2. GS ___________ - ________ 2. GS ___________ - ________ Gesellschaft für Entwicklung und Vertrieb Dorette-von-Stern-Straße 5 +49 4131 24445-0 info@fior-gentz.de von orthopädietechnischen Systemen mbH 21337 Lüneburg (Germany)
