Summary of Contents for Leading Edge TRIREX TR-000-01-20-ASM

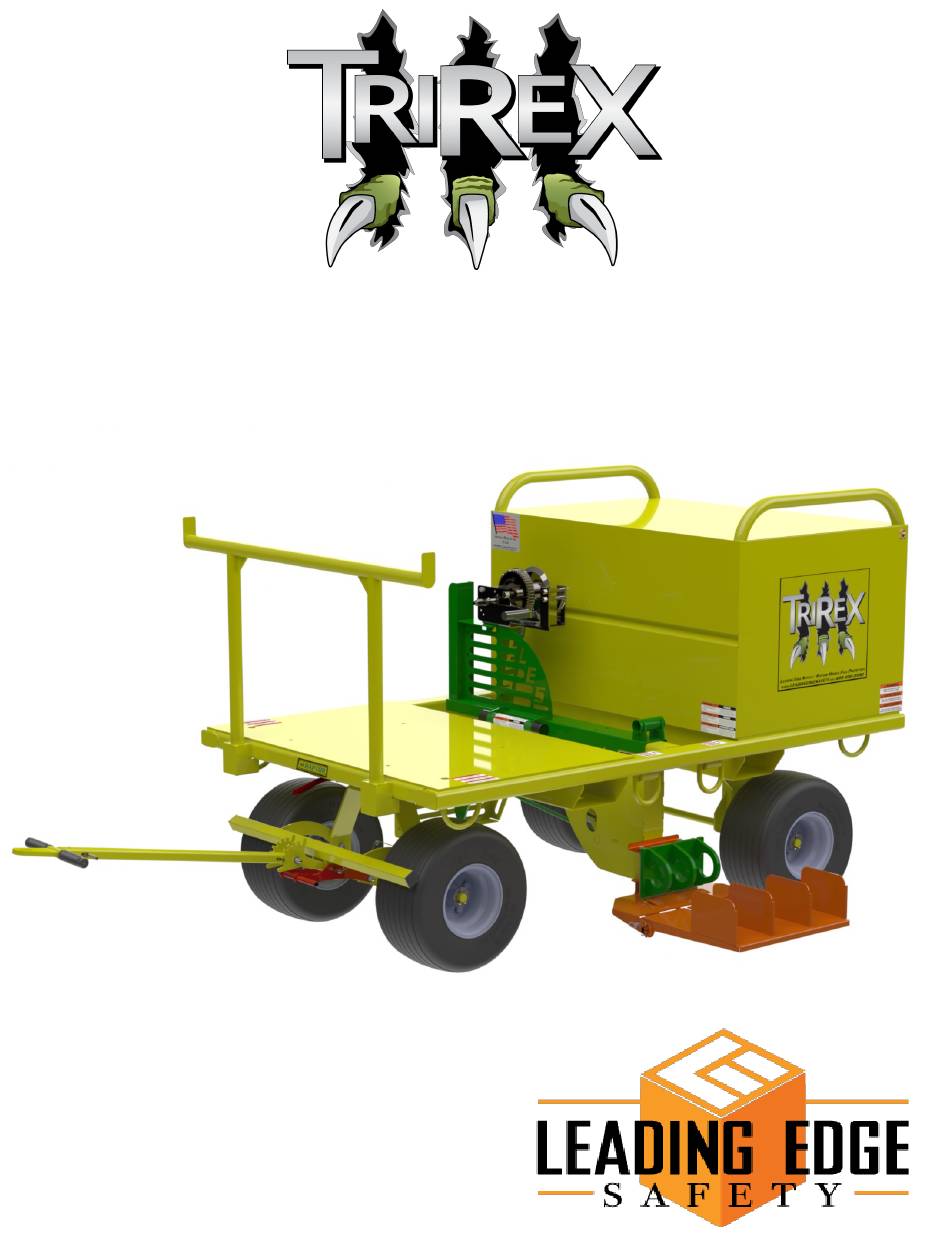

- Page 1 MOBILE FALL PROTECTION CART Inspection, Maintenance and Serviceable Parts Manual TriRex™ Mobile Fall Cart: TR-000-01-20-ASM Raptor Rescue System: RMS-000-16-ASM Self Retracting Lifeline Tray: SRL-000-13 Attachment Point Restrictor: APR-000-12...
- Page 3 Table of Contents TriRex Inspection and Maintenance Log____________________ Parts to Change if a Fall Occurs__________________________ Engagement Arm Shock Replacement_____________________ Engagement Arm Replacement___________________________ 12 TriRex Serviceable Parts________________________________ Raptor Rescue Serviceable Parts__________________________ 22 SRL Tray Serviceable Parts______________________________ 23 Attachment Point Restrictor Serviceable Parts________________ 24...
- Page 4 TRIREX MOBILE FALL CART INSPECTION AND MAINTENANCE LOG PLEASE COPY THIS LOG, FILL IT OUT BEFORE EACH USE, AND KEEP IT IN YOUR RECORDS. EQUIPMENT MODEL #: ____________________ EQUIPMENT SERIAL #: ____________________ DATE OF PURCHASE: ____________________ INSPECTION DATE: ____________________ 1, 2 Corrective Action Inspection Item Maintenance Performed...
- Page 5 TRIREX MOBILE FALL CART INSPECTION AND MAINTENANCE LOG Corrective Action Inspection Item Maintenance Performed Needed? 1 - Inspect Axle Locking Handle for Damage and Grease Inspected By: 2 - Inspect Braking System for Damage Inspected By: 3 - Inspect Both Front and Rear Axle for Damage—Straight / Not Bent Inspected By:...
- Page 6 TRIREX MOBILE FALL CART INSPECTION AND MAINTENANCE LOG Corrective Action Inspection Item Maintenance Performed Needed? 1 - Inspect Claw Guard for Damage and To Make Sure It Is Not Obstructing the Claw Movement Inspected By: 2 - Inspect Claw Lock Spring For Rust and Damage Inspected By: 3 - Inspect Gas Shock for Damage And That It Is Holding The Claw In The Full Upright Position Inspected By:...
- Page 7 TRIREX MOBILE FALL CART INSPECTION AND MAINTENANCE LOG Corrective Action Inspection Item Maintenance Performed Needed? 1 - Insure that a copy of the instruction manual is present and in good condition Inspected By: 2 - Inspect fasteners for proper installation Inspected By: 3 - Inspect cables for rust, kinks and/or wear...
- Page 8 PARTS TO CHANGE IF A FALL OCCURS Part Number: SHOCK 150 Part Number: PIVOT POINT...
-
Page 9: Shock Removal
ENGAGEMENT ARM SHOCK REPLACEMENT READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS TOOLS NEEDED: Side cutting pliers, pliers, baling wire Shock Removal STEP 1 Press downward on the Engagement Arm Assembly (6) approximately 4 inches to compress the shock. The Locking Mechanism (7) will engage, making a “BONG”... - Page 10 ENGAGEMENT ARM SHOCK REPLACEMENT (CONT.) READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS STEP 4 While the Engagement Arm Shock (19) is still mounted to the machine and before removing any Clevis Joint Snap-In Pin (19a) from the Engagement Arm Shock (19), tightly wind baling wire around the compressed Engagement Arm Shock (19), two times and twist baling wire ends together 3 - 4...
- Page 11 ENGAGEMENT ARM SHOCK REPLACEMENT (CONT.) READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS STEP 7 Install new Engagement Arm Shock (19) to mounting points, securing with Clevis Joint Snap-In Pins (19a). STEP 8 Cut and remove the baling wire from the Engagement Arm Shock (19).
- Page 12 ENGAGEMENT ARM INSTALLATION READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS TOOLS NEEDED: Side cutting pliers Follow steps 1– 6 of OF SHOCK REPLACEMENT to remove the Engagement Arm Shock prior to removal of the Engagement Arm Assembly.
- Page 13 ENGAGEMENT ARM INSTALLATION (CONT.) READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS STEP 4 Place the 1” Flat Washer (18c) over the Clevis Pin (18b). STEP 5 Insert and secure 3/16” x 2” Cotter Pin (18d) into the Clevis Pin (18b) by bending the legs outward in each direction as shown.
- Page 14 ENGAGEMENT ARM INSTALLATION (CONT.) READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS STEP 7 Insert the Clevis Joint Snap-In Pins (19a) through Yoke End Linkage (19b) and mounting points as shown. Repeat for both ends.
- Page 15 ENGAGEMENT ARM INSTALLATION (CONT.) READ AND UNDERSTAND THE ENTIRE SET OF INSTRUCTIONS BEFORE PERFORMING ANY STEP IN THIS PROCESS STEP 10 Secure the Engagement Arm Cable (20) through the attachment point as shown with 3/4-10 x 3.25” Hex Bolt (20a), two 1” Flat Washers (20b), and 3/4-10 Locknut (20c).
- Page 16 TRIREX MOBILE FALL CART SERVICEABLE PART LIST...
- Page 17 TRIREX MOBILE FALL CART SERVICEABLE PART LIST...
- Page 18 TRIREX MOBILE FALL CART SERVICEABLE PART LIST...
- Page 19 TRIREX MOBILE FALL CART SERVICEABLE PART LIST...
- Page 20 TRIREX MOBILE FALL CART SERVICEABLE PART LIST Safety Engagement System...
- Page 21 TRIREX MOBILE FALL CART SERVICEABLE PART LIST Front Axle and Handle Assembly...
- Page 26 Copyright © 2023 by Leading Edge Safety, LLC 1345 Taney, North Kansas City, MO 64116 www.LeadingEdgeSafety.net...
