4.4.

SAW BLADE

This mitre saw is supplied complete with a 14 teeth per inch blade for general purpose wood cutting.
4.5.

MITRE CUTS USING PRE-SET ANGLES

The angle pivot arm (fig. 2.A) may be locked in a number of commonly used settings: 45
To set the saw to one of these angles lift locking handle (B) to release locking pin (C) (which slots into holes on the underside of the base).
Move pivot arm (A) until the pointer corresponds with the required angle setting (fig. 3).
Release the locking handle to enable the locking pin (C) to slot into the common angle hole in the underside of the base.

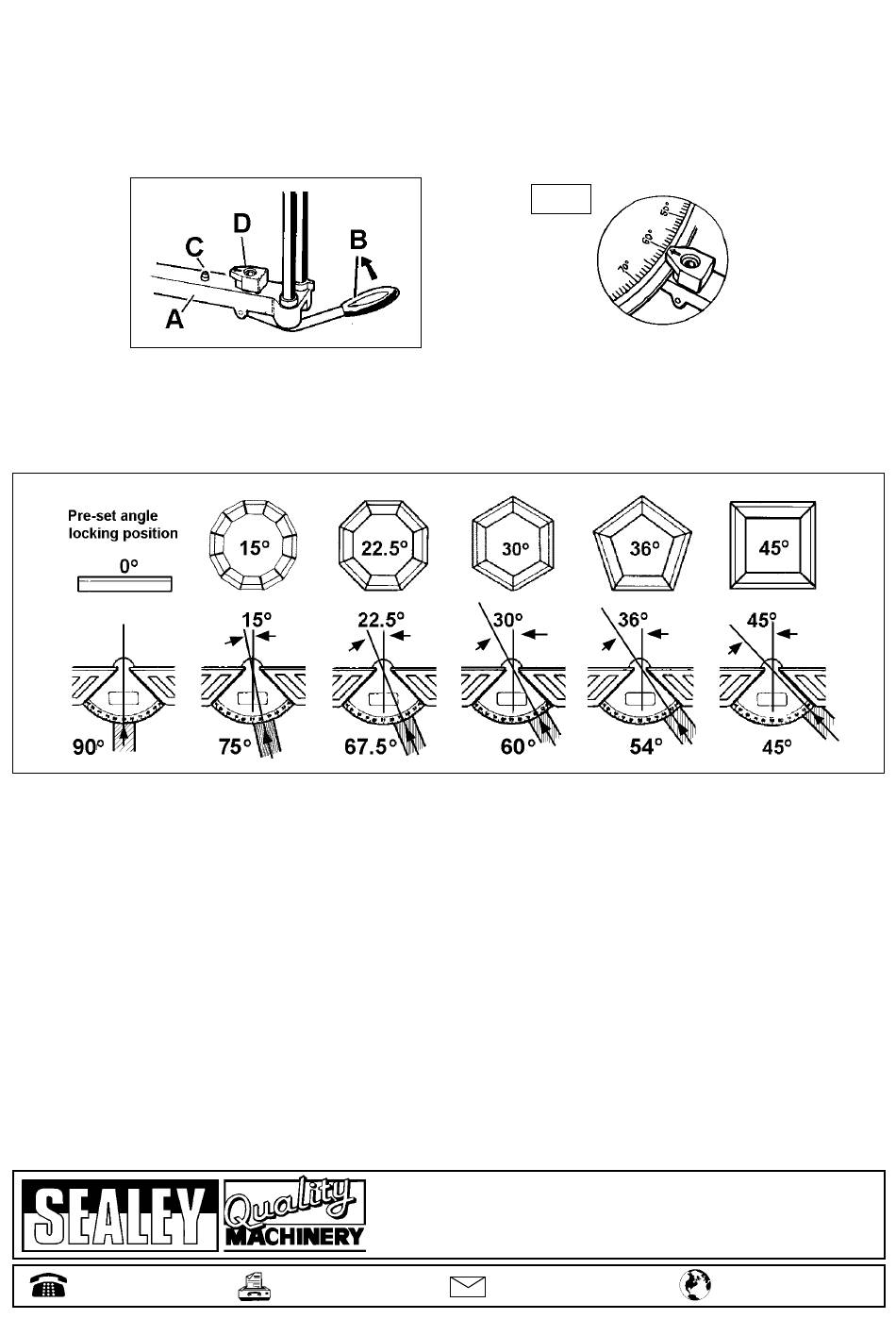

Refer to fig. 4 for angle setting and approximate saw locking position.
fig. 2
4.6.

CUTTING ANGLES

The base angle scale is given in degrees from the back wall of the saw base. Therefore, set the saw at 90
Example: A required angle of 22.5
angle will therefore read as 60
4.7.

ACHIEVING A TRUE CUT

To produce an accurate cut, ensure that:
4.7.1. The saw blade is tensioned sufficiently to avoid ‘whip’, which will cause the blade to deviate.
4.7.2. The blade is ‘in-line’ and central to the frame.
4.7.3. The workpiece is square and true and firmly clamped.
4.7.4. The correct blade is used for the material to be cut.
4.7.5. Blade tension is always released after use.
IMPORTANT: Before making a cut ensure that you read, understand and apply the safety instructions in Section 1. When you have finished,
clean the saw and store it in a safe, dry, childproof area. DO NOT use the saw if any part of the assembly or the blade is
damaged. Contact your local Sealey dealer for advice.
NOTE:
It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
