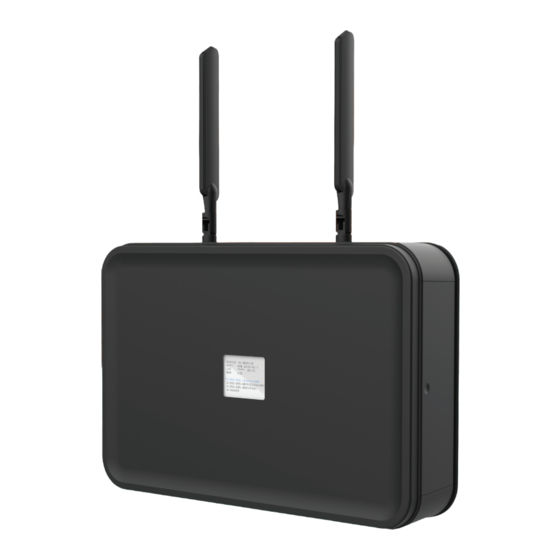

ooma AirDial Quick Start Manual
Hide thumbs Also See for AirDial:

Advertisement

Quick Links

Have a question or need assistance?
Ooma has a wealth of available resources if you need assistance.
Support articles. Access our comprehensive knowledge base at
https://support.ooma.com/office
User manuals. Access this guide and all other product manuals at
https://support.ooma.com/office/manuals/
Speak with a support specialist 24/7 at 1-866-939-6662 (US) or 1-877-948-6662 (Canada)
525 Almanor Avenue, Suite 200
Sunnyvale, CA 94085
www.ooma.com
Learn more at
or call 1-866-939-6662 (US) or 1-877-948-6662 (Canada)
This device is intended for commercial use only, do not use this device inside a residence
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
© 2021 Ooma, Inc. All rights reserved. Patent Pending. Ooma, Ooma Telo, Ooma Connect 4G Adapter, Ooma Premier, Ooma HD3 Handset, Ooma Linx,
Ooma Home Security, and the Ooma logo are trademarks or service marks of Ooma, Inc. Other company and product names mentioned herein are trademarks of
their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation.
Ooma assumes no responsibility with regard to the performance or use of these products. P/N: 700-0303-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirDial and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ooma AirDial

  • Page 1 © 2021 Ooma, Inc. All rights reserved. Patent Pending. Ooma, Ooma Telo, Ooma Connect 4G Adapter, Ooma Premier, Ooma HD3 Handset, Ooma Linx, Ooma Home Security, and the Ooma logo are trademarks or service marks of Ooma, Inc. Other company and product names mentioned herein are trademarks of their respective companies.
  • Page 2 AirDial Quick Start Guide...
  • Page 4: Table Of Contents

    Connect AirDial to the Internet . . . . . . . . . . . . . . . . . .
  • Page 5: Package Contents

    Package Contents Mounting Screws and Anchors Two External Detachable LTE Antennas Ooma AirDial 4x Phone Wires Power Adapter Mounting Bracket Ethernet Cable (CAT5) Power Adapter Cable...
  • Page 6: Account Activation

    Account Activation If the packaging of your AirDial says it is already activated, then you may skip the activation step. You should have received an email containing your account number, the device’s serial number, and the phone number of your pre-activated AirDial when the device shipped.
  • Page 7: Assembly

    POWER The power adapter has a snapping connector to prevent accidental disconnects. To remove it from the AirDial unit, squeeze the connector from the top and bottom and gently pull it out. Turn the power switch to the ON position...
  • Page 8: Connect Airdial To The Internet

    Connect AirDial to the Internet When your AirDial starts up for the first time, it will download and install updates. This process can take up to five minutes, during which time the LCD panel might go blank. When the AirDial is powered on and ready for use, its status will change to IN-SERVICE.
  • Page 9 AirDial between locations to identify a spot with ideal signal strength. The AirDial comes with four phone cables that can be used to connect it to an alarm, dialer, patch panel, or other telephony equipment. If the AirDial is installed in a location that is more than six feet from the equipment for which it will provide POTS replacement service, then you will need a longer phone cable to connect it to your equipment.
  • Page 10: Installation Or Mounting Instructions

    If necessary, use the included plastic wall or it can be mounted vertically on a wall. anchors. Align the AirDial with the mounting bracket and then slide it down slightly to lock it into place . The cables should...
  • Page 11: Monitoring And Configuration

    The AirDial can be monitored and configured remotely from any http://rdm.ooma.com web browser. To configure a device, visit Log in with your Ooma username and password. You will see a list of devices associated with your account. For additional information about existing devices, adding new devices, device settings and notification options visit http://rdm.ooma.com...
  • Page 12: Quick Reference Guide

    Quick Reference Guide POWER OFF/ON Phone 1 Phone 3 Ethernet USB – GPS – Reserved Reserved Phone 2 Phone 4 Ethernet LAN – Power Off/On Reserved ■ Phone 1-4: Connect to your telephony device using ■ Power: Use the provided AC adapter to connect to a an RJ11 wire power outlet ■...
  • Page 13: Optional Accessories

    Visit ooma.com to order a 50-foot cable direct from Ooma, or head to your local hardware store to view their selection of phone cables. Coax extension cables for antennas You can extend the range of your antennas by connecting them to SMA coax extension cables.
  • Page 14: Battery Replacement

    BATTERY WARNING: The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat, or incinerate. Replace battery with Ooma authorized replacement pack only. Use of another battery may present a risk of fire or explosion.
  • Page 15: Device Specifications

    Device Specifications Processor • Dual-core ARM Cortex A9 CPU Modem • Quectel EG95-NAXD Cat-4 LTE LTE Band Support • B2/B4/B5/B12/B13/B25/B26 LTE Data Rates • Up to 150 Mbps down and 50 Mbps up • Two Wideband 5G/4G Terminal Mount Antennas Antennas •...
  • Page 16: Support

    Support Need help? Ooma has a wealth of available resources to help if you need assistance. Support Articles and User Manuals. Access our comprehensive knowledge base at https://support.ooma.com Live Customer Care. Speak with a support specialist 24/7 at 1-866-939-6662 (US)
  • Page 17 Appendix I Connecting AirDial to an emergency phone or monitoring system dialer AirDial POWER OFF/ON Phone wires with RJ11 jack Telephone Entry System Automatic dialers for alarms Emergency Elevator, Emergency pool phones and monitoring systems parking, and ATM phones...
  • Page 18 Appendix II Connecting AirDial to Digital Alarm Communication Transmitter (DACT) AirDial POWER Ethernet wire OFF/ON with RJ45 connector Phone wire with RJ11 jack RJ45 to RJ11 adapter Fire alarm 411 digital communication transmitter...
  • Page 19: Notes

    Notes:...
