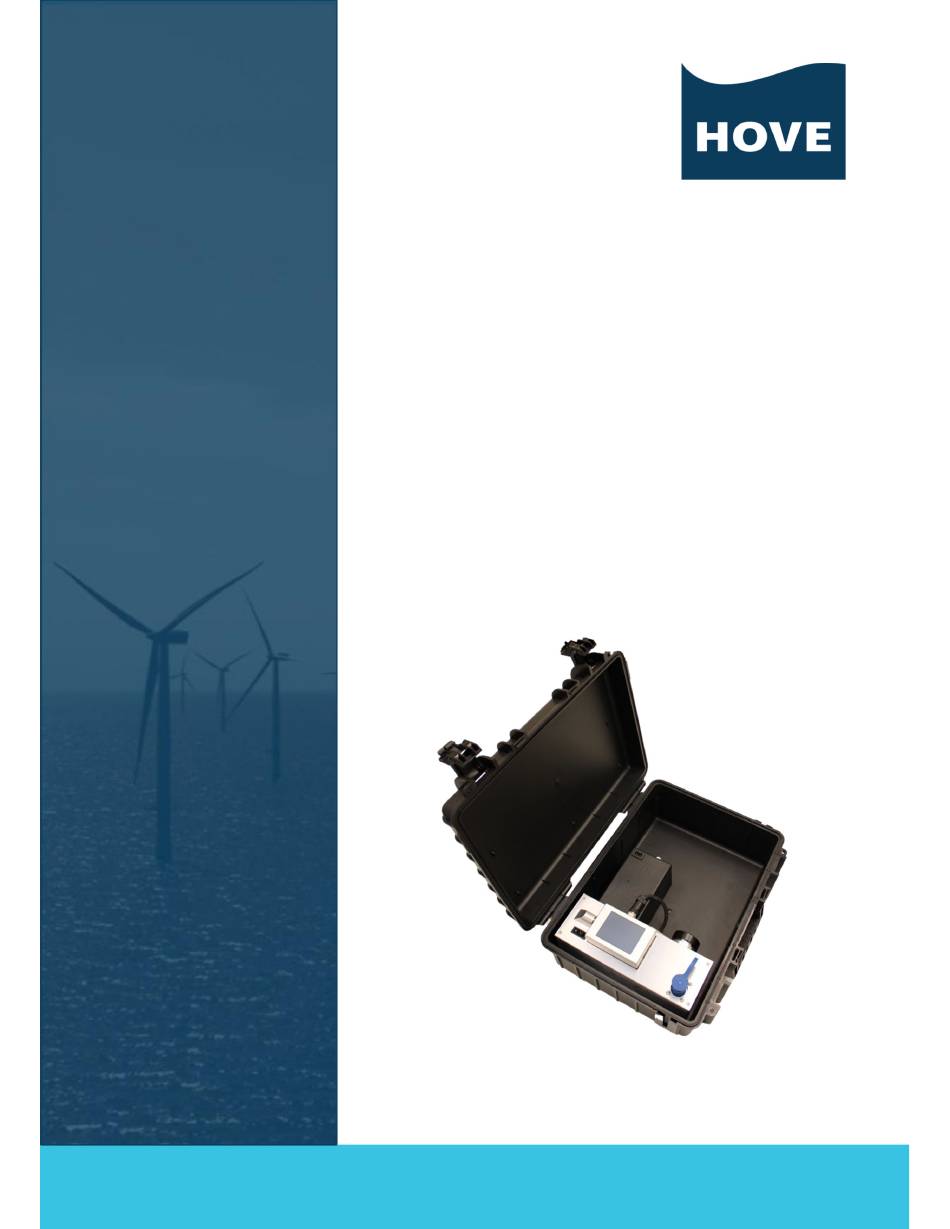

- Page 1 EASY GREASE Operator and Owner’s Manual ©Hove a/s 2024 O‐O Manual Easy Grease v.5 ...
-
Page 2: Table Of Contents
ON DELIVERY OF THE EQUIPMENT .................. 3 THE PACKAGE INCLUDES ...................... 3 THE PRODUCT .................... 4 PREPARATIONS .................... 5 Charging the battery (optinal) .................... 5 Cleaning the machine before first use .................. 5 Preparing the Easy Grease v.5 .................... 5 Connecting to Smart Lube (Full‐Automatic Mode) ............... 6 Selecting “Semi‐automatic mode” and “manual mode” ............8 USING THE HOVE EASY GREASE V.5 .............. 9 Operating the machine ...................... 9 Operating in Full‐Automatic Mode (with scanner) ............... 9 Operating in semi‐Automatic and manual mode (without scanner) ........ 10 Empty cartridge ........................ 12 Flushing the Easy Grease v.5 .................... 13 After use .......................... 13 TECHNICAL DATA ................... 1 4 EU Declaration of Conformity .................... 15 TROUBLESHOOTING .................. 1 6 Can’t connect the Easy Grease v.5 to the Smart Lube . -
Page 3: General Description
GENERAL DESCRIPTION Hove Easy Grease v. 5 is a 48VDC automatic lubrication pump for direct lubrication of bearings. It can be powered from the detachable 100 – 240VAC / 50‐60Hz Class II power supply unit or an optional 48VDC / 6Ah Li‐ion battery unit. This unique setup eliminates the grease pump's protective earth (PE) and thus the related risk of electric shock due to improper equipment earthing. The optimal battery makes the pump independent of mains power and thus ideal for lubrication tasks in hard‐to‐reach places. The battery is designed to pump approx. 15 kg of grease before charging is required. The Easy Grease v.5 functions in two different ways; semi‐automatic and full‐automatic. FULL‐AUTOMATIC MODE (WITH SCANNER) The full‐automatic mode is the preferred mode for the Easy Grease v.5. In full‐ automatic mode the Easy Grease v.5 is controlled by the Smart Lube app and scanner. In this mode, all functions are pre‐programmed and works like “Scan and Pump”. Use the scanner for all functions; connecting to the Easy Grease v.5, selecting the Grease Cartridge and scan the QR‐ codes located near the lubrication points. The QR‐codes will be provided, and on request glued on the equipment, by Hove. SEMI‐AUTOMATIC MODE (WITHOUT SCANNER) Alternatively, when no Smart Lube option is selected, you can operate the Easy Grease v.5 in semi‐automatic mode without Smart Lube. In semi‐automatic mode the Easy Grease v.5 is controlled via the display included in the pump. The detachable display can be re‐located outside the cover for convenience and connected with the extension cord. ©Hove a/s 2022 2 ... -
Page 4: Intended Use
Read and understand the instructions as written in this manual Do not use the Easy Grease v.5 for any other purposes than described in "Intended use" Never point the hose from the Easy Grease v.5 to people or animals Follow the local legislations for working on height and for working with electrical and moving equipment Follow all site‐recommendations Always wear safety glasses and gloves when working with lubrication Always use the built‐in handle for carrying the Easy Grease v.5 Always use approved lifting equipment when lifting the Easy Grease v.5 Always use required Personal Protection Equipment (PPE) when using lifting devices Only use Hove A/S approved spare parts Properly connect the battery to the charger or the power supply to the mains outlet Do not short circuit the power supply connector, battery connector, or charger connector Do not open the power supply unit, battery unit, or charger unit Handle the battery with care: o Do not leave or charge the battery where the temperature may become higher than 50˚C (120˚F) Do not short circuit the battery Do not let the battery get wet Do not drop the battery, or in other ways apply impacts to the battery Do not disassemble or modify the battery Dispose a battery that requires very frequent charging Remove the battery from a device that is not being used for an extended period Charge the battery before storing it for an extended period ... -
Page 5: On Delivery Of The Equipment
ON DELIVERY OF THE EQUIPMENT Check if the packaging is intact Do not use if damaged Dispose packaging material according to local regulations Read the instruction manual carefully. It contains important information about the use and maintenance Keep the instruction manual in a safe, accessible location for future reference THE PACKAGE INCLUDES Hove Easy Grease v.5 grease pump Flushing adaptor Cartridge adapter Power supply Extension cord for display Battery and charger (optional) Lubrication hose (optional) ©Hove a/s 2022 4 O‐O Manual Easy Grease v.5 ... -
Page 6: The Product
Charger for 9 battery(Optional) 8 Extension cord for Display ©Hove a/s 2022 5 O‐O Manual Easy Grease v.5 ... -
Page 7: Preparations
Connect the power plug of the battery charger to an outlet with 100‐240VAC The indicator LED of the battery charger lights red during the charging When it turns green, the battery is ready for use Turn off the mains supply or disconnect the power plug before disconnecting the charger plug from the battery connector CLEANING THE MACHINE BEFORE FIRST USE Clean the inside of Easy Grease v.5 with a lint‐free cloth rag to prevent any contamination of grease or pump Flush the pump with the desired type of grease before start (see section “Flushing the Easy Grease v.5”) PREPARING THE EASY GREASE V.5 Open the top cover (1) Make sure the power switch (2) is in “OFF” position Remove the adapter (6) by turning the lock lever (5) fully counter‐clockwise Screw the adapter onto a full Hove cartridge (11) with the desired type of grease Be sure to screw the adapter sufficiently firm, so the joint is airtight Install the grease cartridge with adapter on the machine Lock the adapter by turning the lock lever (5) fully clockwise Switch ON the machine (2) The machine is ready when the MAIN screen appears on the display (3) ©Hove a/s 2022 6 O‐O Manual Easy Grease v.5 ... -
Page 8: Connecting To Smart Lube (Full-Automatic Mode)
Type in the following code: 45654 Select “Set” under “Smart Lube (#)” Type “1” under “Smart Lube (#)” Press “Enter” The screen returns to start screen The MAC address on the pump display appears The pump is ready for Bluetooth pairing with the PDA Start screen System screen Set model Type “45654” Start screen appears Set Smart Lube Type “1” with the MAC number The pump remains in “Bluetooth mode” until it is manually switched off See also instructions on how to connect the Easy Grease v.5, Hove Smart Lube and Portal, in the manual of the Smart Lube ©Hove a/s 2022 7 O‐O Manual Easy Grease v.5 ... - Page 9 Connecting the Hove Easy Grease v.5 with the Hove Smart Lube Open the Hove Smart Lube app on your PDA or smartphone Press “Start” Select an “Asset” Select any “Lube Point” Optionally “Add a photo” (when missing) or select “Cancel” Swipe “Confirm” “Scan” the QR‐code located in your pump The Bluetooth logo appear green The pump and HSL are now connected The system remembers the pump until shutdown Start Asset Lube point Cancel or add photo Confirm Alternatively, you can also add the Easy Grease v.5 manually: Press “+” next to “Not scanned yet” Select correct pump ...
-
Page 10: Selecting "Semi-Automatic Mode" And "Manual Mode
Select “Set” under “Model (#)” Type in the following code: 45654 Select “Set” under “Smart Lube (#)” Type “0” under “Smart Lube (#)” Press “Enter” The screen returns to start screen The MAC address on the pump display disappears Start screen System screen Set model Type “45654” Set Smart Lube Type “0” Start screen appears The Easy Grease v.5 is now in Semi‐automatic/manual mode and remains in this mode until manually changed. In this mode, the Easy Grease v.5 cannot connect to Bluetooth and the Smart Lube option is not available ©Hove a/s 2022 9 O‐O Manual Easy Grease v.5 ... -
Page 11: Using The Hove Easy Grease V.5
USING THE HOVE EASY GREASE V.5 OPERATING THE MACHINE The Hove Easy Grease v.5 has been designed to be extremely user‐friendly. It is easy to operate, easy to maintain, and easy to use. The Hove Easy Grease v.5 operates indoors and outdoors under harsh conditions Hove advises to use the Hove Easy Grease v.5 together with the Hove Smart Lube (Full‐ Automatic mode) to get the most out of the system. Refer to the manual of the Hove Smart Lube for more information OPERATING IN FULL‐AUTOMATIC MODE (WITH SCANNER) Make sure that the machine is ready to operate as described in section “PREPARATIONS” Switch ON the machine The start‐up display appears Select your language The system display appears Switch on Bluetooth. Follow the instruction in section “Connecting to Smart Lube (Full‐Automatic Mode)” Open the Hove Smart Lube app on your PDA (scanner or smartphone) Connect the Easy Grease v.5 with Smart Lube via Bluetooth. Follow the instructions in section “Connecting the Hove Easy Grease v.5 with the Hove Smart Lube” The above procedure only must be performed once during your lubrication round. The Easy Grease v.5 and Smart Lube are now connected and ready to use Scan the Cartridge Point the PDA towards the QR‐code on the cartridge Press “SCAN‐key” until a sound is heard ... -
Page 12: Operating In Semi-Automatic And Manual Mode (Without Scanner)
Cartridge scanned Scan the QR‐code near the lubrication point Scan the grease lube point Point the PDA towards the QR‐code on the lube point Press “SCAN‐key” until a sound is heard A green circle appears next to the lube point name on the display Press “Connect Hose” Press “Start Lubrication” The pump starts to pump grease When finished, the screen shows “Lubrication done” Press “Next Lube” Repeat step 1...4 until all lubrication points are filled up Connect hose Start lubrication Lubrication in progress Lubrication done OPERATING IN SEMI‐AUTOMATIC AND MANUAL MODE (WITHOUT SCANNER) Switch on the pump Make sure the Easy Grease v.5 is in “Semi‐automatic mode”. See “selecting “Semi‐ automatic mode” and “Manual mode”” After selecting your language, the “System” screen appears ©Hove a/s 2022 11 O‐O Manual Easy Grease v.5 ... - Page 13 Select “Setup” Select “Set” under “Auto (g)” Type the required amount of grease Press “Enter” The values are saved and remain the same until manually changed Connect the hose to the grease nipple Press “Start” The Easy Grease v.5 starts pumping grease o The field “Auto” turns yellow and counts down until the desired amount of grease has been pumped into the bearing o The field turns green and reads “Ended” for several seconds, and than returns to the default state At any time, you can press “Stop” to stop the pump Repeat step 1 and 2 until all grease points are lubricated. o You can change the value under “Auto” (amount of grease to be pumped) at any time during the operation Select the amount of Start screen System, press “Setup” “Set” under “Auto” grease (g) and “Enter” ©Hove a/s 2022 12 O‐O Manual Easy Grease v.5 ...
-
Page 14: Empty Cartridge
Switch on the pump After selecting your language, the “System” screen appears Select “Start” under “Manual” The Easy Grease v.5 starts pumping grease Press “Stop” to stop pumping grease Note: The Easy Grease v.5 continues to pump grease into the bearing until the “Stop” button is pressed! The value under “Manual” keeps counting upwards until “Reset” has been pressed Note: It is advisable to decrease the speed in “Manual” mode, to prevent over‐ lubrication! Press “Start” under System counts until “Stop”, the value remains Start screen “Manual” “Stop” is pressed until “Reset” is pressed EMPTY CARTRIDGE If the built‐in flowmeter does not register the expected grease flow for a predetermined amount of time, either during manual or automatic dosing, the pump stops, and the grease counter turns red and flashes “EMPTY”. ©Hove a/s 2022 13 O‐O Manual Easy Grease v.5 ... -
Page 15: Flushing The Easy Grease V.5
After selecting your language, the “System” screen appears Select “Start” under “Manual” The Easy Grease v.5 starts pumping grease Observe the change in colour of the grease Press “Stop” to stop pumping grease when the colour has changed to an even shade Note: The Easy Grease v.5 continues to pump grease into the bearing until the “Stop” button is pressed! Press “Start” under System counts until “Stop”, the value remains Start screen “Manual” “Stop” is pressed until “Reset” is pressed AFTER USE Switch OFF the machine Clean the Hove Easy Grease Easy Grease v.5 with a lint‐free cloth to prevent any contamination of grease or pump Dispose empty Hove grease cartridges in an environmentally safe manner according to current local regulations ©Hove a/s 2022 14 O‐O Manual Easy Grease v.5 ... -
Page 16: Technical Data
Weight: 8,5kg (9kg with battery) Power supply Power supply: 100 – 240VAC/50‐60Hz Battery: Li‐ion 48V/6Ah (optional) 1‐hour battery life at 100% speed and 250bar Drive BLDC Electric motor Maximum Output Pressure Continuously: 250bar/3.625psi Maximum Output Volume 500ml/min 17oz/min Operation Full‐automatic Semi‐automatic Controller Hove Electronic Controller Dosing Repeatability +/‐ 1% LpA Sound Pressure Level 58dB(A) Power Consumption Max. 350W ©Hove a/s 2022 15 O‐O Manual Easy Grease v.5 ... -
Page 17: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Hove Easy Grease Easy Grease v.5 ver. 2 is in conformity with: Directive 2014/30/EU ‐ Electromagnetic Compatibility (EMC) Directive 2006/42/EC ‐ Machinery (MD) Directive 2011/65/EU ‐ Restriction of the use of certain hazardous substances (RoHS) Directive 2014/68/EU ‐ Pressure equipment (PED) And the following harmonized standards and technical specifications have been applied: EMC: Emission: Product family standards EN 301 489‐1 v2.1.1 Sub‐standard: EN 301 489‐3 v.2.1.1 Product family standard, Measurement, control and laboratory equipment EN 61326‐1:2013 Immunity: Product family standards EN 301 489‐1 v2.1.1 Sub‐standard: EN 301 489‐3 v.2.1.1 Product family standard Measurement, control and laboratory equipment EN 61326‐1:2013 Electrical Safety: EN 60204‐1:2018 ‐ Safety of machinery ‐ Electrical equipment of machines ‐ General requirements EN 62133‐2:2017 ‐ Secondary cells and batteries containing alkaline or other non‐acid electrolytes ‐ Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications ‐ Part 2: Lithium systems ©Hove a/s 2022 16 O‐O Manual Easy Grease v.5 ... -
Page 18: Troubleshooting
TROUBLESHOOTING In most cases, the problem at hand can be solved by following the below troubleshooting guide. In case the Easy Grease v.5 is found to be broken, please contact your nearest Hove dealer or repair centre: www.hove‐as.com/contact CAN’T CONNECT THE EASY GREASE V.5 TO THE SMART LUBE Make sure both the PDA and the pump are in “Bluetooth mode” See section: “CONNECT SCANNER TO BLUETOOTH” and “CONNECT THE PUMP TO HOVE SMARTL LUBE” If the issue remains, please contact us: www.hove‐as.com/contact/ CAN’T START PUMPING WITH THE SMART LUBE Make sure the Easy Grease v.5 is connected to Smart Lube via Bluetooth Make sure the Grease Cartridge is not empty Make sure the type of grease is the correct one. If not, change the cartridge and flush the pump before use If the issue remains, please contact us: www.hove‐as.com/contact/ CAN’T FIND MY EASY GREASE V.5 IN THE PORTAL Make sure the pump data is inserted to the Portal If the issue remains, please contact us: www.hove‐as.com/contact/ SYSTEM IS “FROZEN” Switch OFF the Easy Grease v.5 for at least 30 seconds and switch ON again Close the Smart Lube app and re‐open If the issue remains, please contact us: www.hove‐as.com/contact/ ©Hove a/s 2022 17 O‐O Manual Easy Grease v.5 ... -
Page 19: Contact Us
CONTACT US TECHNOLOGY WITH INGENUITY Hove A/S is a Danish‐owned company that was founded in 2000 and has grown significantly since. Hove A/S has its own production and development departments. We sell and develop: Specially designed pumps Dosing units Fittings Flow distribution systems SUPPORT, SERVICE, AND REPAIR HEAD QUARTERS Hove Service Center Phone: +45 61 71 22 83 Herstedoestervej 7 Whatsapp: +45 61 71 22 83 DK‐2600 Glostrup Email: repairs@hove‐as.dk Denmark Website: www.hove‐as.dk Other service centers are listed at www.hove‐as.dk Dealer ...
