Summary of Contents for Outsunny 867-209V70

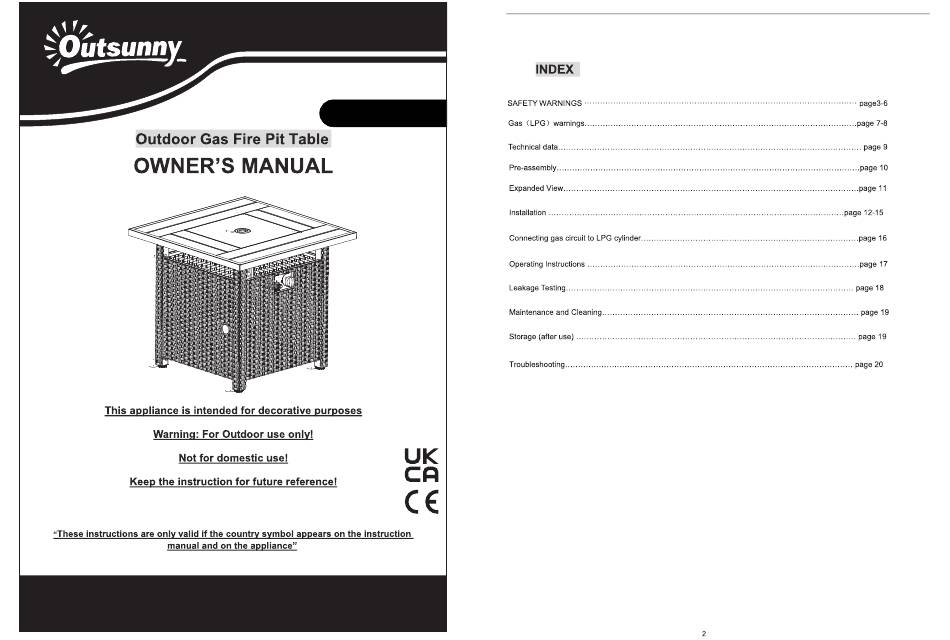

- Page 1 IN231100154V01_UK 867-209V70 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTIONS...
-
Page 5: Hardware Included
HARDWARE INCLUDED Part Description Quantity M6 x mm Bolt +1(spare) M6 x 12 mm Bolt +1(spare) M6 x 16 mm Bolt +1(spare) M5 x 12 mm Bolt +1(spare) -
Page 6: Assembling The Side Panels
Assembling the side panels Connect the side panel (B) to the door(C) by using one M6x16 mm bolt(CC) Don’t tighten the hardware. Assembling the side panel with window Connect the side panel with window(A)to the table top(G) by using four M6x10 mm bolts(AA). Do not tighten the bolts at this step. -
Page 7: Place The Lava Rock
Assembling the gas tank support Assembling the Side Panels Connect gas tank support (H) to the semi-assembled body by using four M6x16 mm bolts(CC) Connect the side panel (B）and door(C) to the table top (G) by using four M6x10 mm bolts(AA) Tighten all bolts with a Phillips screwdriver (not included). - Page 8 secure the cylinder by tightening the screw in the gas tank support. Connect the hose and regulator to cylinder. Open the igniter and place the AAA battery (NOT INCLUDED) into the igniter. Then tighten clockwise. Note: The Cloth Cover(J) must be removed when the burner is in operation.
