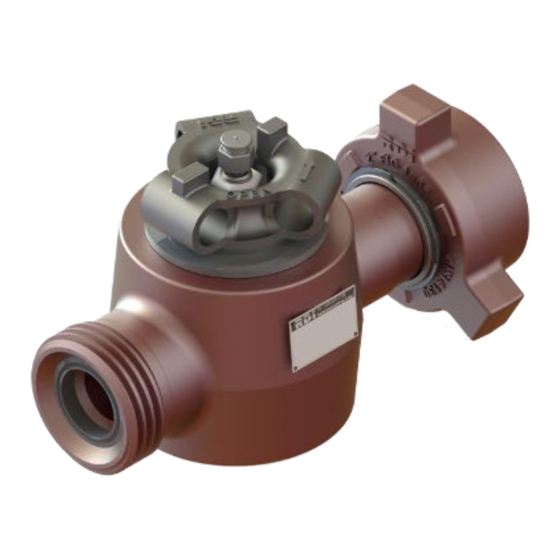

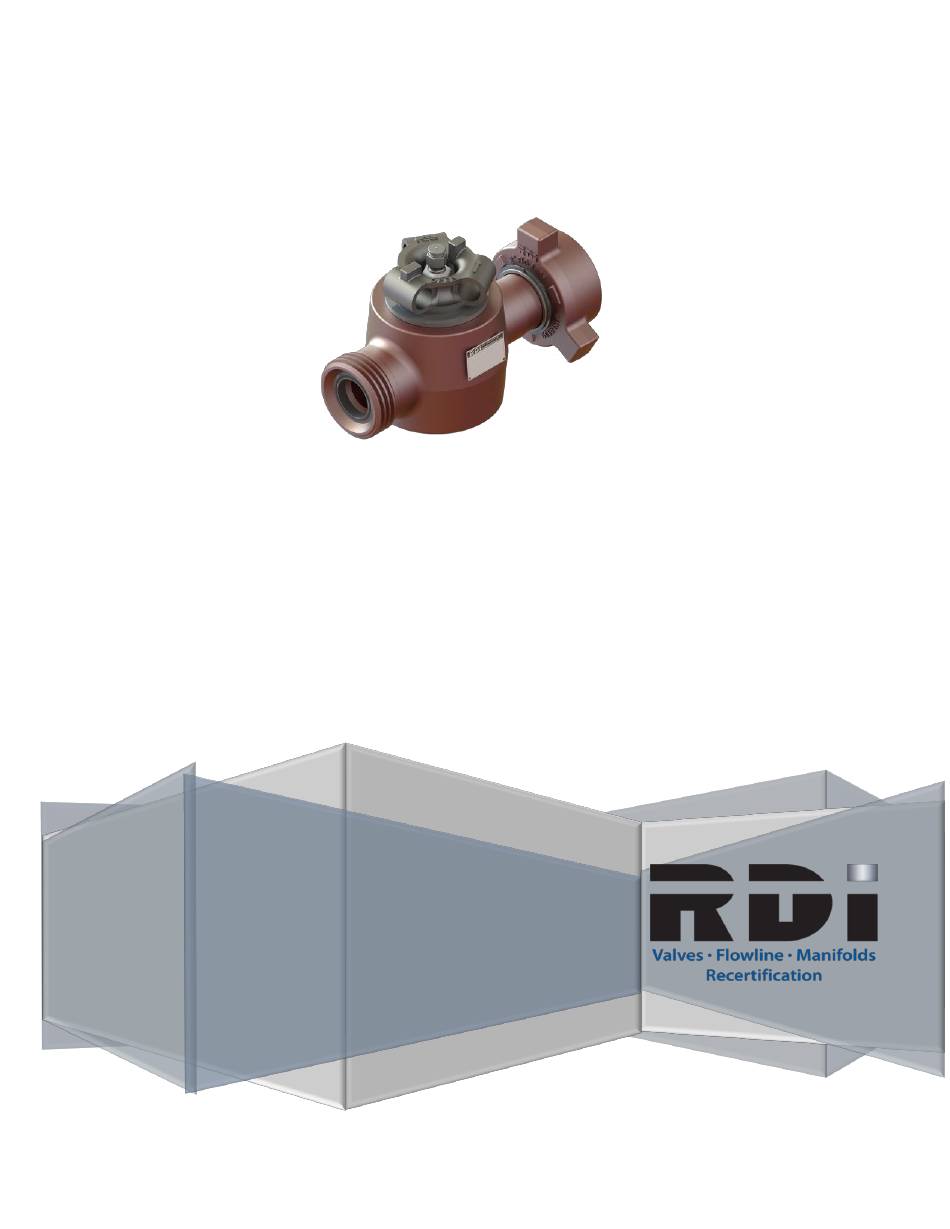

- Page 1 Red Deer Ironworks 2” Top Entry Plug Valve Maintenance Manual Parts Covered: PV21502, PV21502STD, PV21502STD/ACID, PV2X11502, PV2X11502STD, PV2X11502STD/ACID, PV2206, PV2602, PV2607 & PV2607LH MM-02 Revision 1 Revision Date: August 9, 2018...
-
Page 2: Table Of Contents
Wingnut Kit Parts Listing - 2” 607LH ......................17 Assembly Procedure ........................... 18 Greasing Instructions ..........................28 Tear-Down Procedure ..........................28 Pressure Relieving Procedure ........................28 RDI Sales & Service Centers ................Error! Bookmark not defined. Page 1 of 29... -
Page 3: Exploded View - 2" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Exploded View - 2” 1502 Plug Valve Page 2 of 29... -
Page 4: Parts Listing - 2" 1502 Plug Valve
WNKIT21502 WNKIT21502STD WNKIT21502STD (see page 15) (see page 15) (see page 15) 2 Grooved Pin PV215PIN PV215PIN PV215PIN 1 Plug Valve Body PV21502 PV21502STD PV21502STD 1 Name Plate VLVTAG VLVTAG VLVTAG 1 Union Seal - 2in SEAL2 SEAL2STD SEAL215BUBR Page 3 of 29... -
Page 5: Major Repair Kit Parts Listing - 2" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Major Repair Kit Parts Listing - 2” 1502 Plug Valve Item Qty Description Part # Sour (H S) and Standard Part # STD/ACID PVRK215MAJ PVRK215MAJA Major Repair Kit Weather Seal - 2in Plug Valve PV2602WSEAL PV2602WSEAL Back Up O-Ring 239 - 2in Plug Valve Cap... -
Page 6: Minor Repair Kit Parts Listing - 2" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Minor Repair Kit Parts Listing - 2” 1502 Plug Valve Item Qty Description Part # Sour (H S) and Standard Part # STD/ACID Minor Repair Kit PVRK215MIN PVRK215MINA Back Up O-Ring 239 - 2in Plug Valve Cap ORB-NXX-239 ORB-NXX-239 O-Ring 4mm X 54mm... -
Page 7: Exploded View - 2"X 1" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Exploded View - 2”x 1” 1502 Plug Valve Page 6 of 29... -
Page 8: Parts Listing - 2"X 1" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Parts Listing - 2”x 1” 1502 Plug Valve Item Qty Description Part # Sour (H Part # Standard Part # STD/ACID 1 Grease Fitting ¼” NPT (GBH14) SH-013 SH-013 SH-013 Nylon Lock Nut - 7/8-9 UNC PV2HNDLNUT PV2HNDLNUT PV2HNDLNUT... -
Page 9: Major Repair Kit Parts Listing - 2"X 1" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Major Repair Kit Parts Listing - 2”x 1” 1502 Plug Valve Item Qty Description Part # Sour (H S) and Standard Part # STD/ACID PVRK115MAJ PVRK115MAJA Major Repair Kit Weather Seal - 2x1in Plug PV115WSEAL PV115WSEAL VALVE... -
Page 10: Minor Repair Kit Parts Listing - 2"X 1" 1502 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Minor Repair Kit Parts Listing - 2”x 1” 1502 Plug Valve Item Qty Description Part # Sour (H S) and Standard Part # STD/ACID PVRK115MIN PVRK115MINA Minor Repair Kit Weather Seal - 2x1in Plug Valve PV115WSEAL PV115WSEAL O-Ring 230... -
Page 11: Exploded View - 2" 206 Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Exploded View - 2” 206 Plug Valve Page 10 of 29... -
Page 12: Exploded View - 2"602, 2"607 & 2"607Lh Plug Valve
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Exploded View - 2”602, 2”607 & 2”607LH Plug Valve Page 11 of 29... -
Page 13: Parts Listing - 2"206, 2"602, 2"607 & 2"607Lh Plug Valves
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Parts Listing - 2”206, 2”602, 2”607 & 2”607LH Plug Valves Item Qty Description Part # PV2206 Part # PV2602 Part # PV2607/ PV2607LH 1 Grease Fitting ¼” NPT (GBH14) SH-013 SH-013 SH-013 1 Nylon Lock Nut -7/8-9 UNC PV2HNDLNUT... -
Page 14: Major Repair Kit - 2"206, 2"602, 2"607 & 2"607Lh Plug Valves
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Major Repair Kit - 2”206, 2”602, 2”607 & 2”607LH Plug Valves PV2206 PV2602 PV2607/PV2607LH Item Qty Description PVRK2206MAJ PVRK2602MAJ PVRK2607MAJ/PVRK2607LHMAJ Major Repair Kit Weather Seal - 2” PV2602WSEAL PV2602WSEAL PV2602WSEAL O-Ring OR-H90-234 OR-H90-234 OR-H90-234... -
Page 15: Minor Repair Kit - 2"206, 2"602, 2"607 & 2"607Lh Plug Valves
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Minor Repair Kit - 2”206, 2”602, 2”607 & 2”607LH Plug Valves PV2206 PV2602 PV2607/PV2607LH Item Qty Description PVRK2206MIN PVRK2602MIN PVRK2607MIN/PVRK2607LHMIN Minor Repair Kit O-Ring OR-H90-40050 OR-H90-40050 OR-H90-40050 O-Ring OR-H90-234 OR-H90-234 OR-H90-234 Plug Seal 2”... -
Page 16: Wingnut Kit Parts Listing - 2" 1502 & 2"X1" 1502
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Wingnut Kit Parts Listing - 2” 1502 & 2”x1” 1502 Item Qty Description Part # Sour (H Part # Standard and STD/ACID Wingnut Kit WNKIT21502 WNKIT21502STD Spiral Retaining Ring SNAPRINGWST334 SNAPRINGWST334 Wingnut WN21502 WN215DETSTD... -
Page 17: Wingnut Kit Parts Listing - 2" 206
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Wingnut Kit Parts Listing - 2” 206 Item Description Part # Wingnut Kit WNKIT2206 17.1 Spiral Retaining Ring SNAPRINGWST275 17.2 Wingnut WN2206 17.3 Segment Set (3) SEG2206 Wingnut Kit Parts Listing - 2” 602 Item Description Part #... -
Page 18: Wingnut Kit Parts Listing - 2" 607
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Wingnut Kit Parts Listing - 2” 607 Item Description Part # Wingnut Kit WNKIT2607 17.1 Spiral Retaining Ring SNAPRINGWST306 17.2 Wingnut WN2607 17.3 Segment Set (3) SEG2602 Wingnut Kit Parts Listing - 2” 607LH Item Description Part #... -
Page 19: Assembly Procedure
Do not sand or de-burr any items while at the assembly workstation. Note: RDI-6430 (assembly grease), RDI-2015 (performance grease) and Nikal (anti-seize compound) are used in this procedure. Use of grease other than that listed in this manual is not recommended as it may adversely affect the performance and functionality of the Plug Valve. - Page 20 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 3. Slide the Wingnut (#15.2) onto the male end up to the Spiral Retaining Ring. Place the Segment Set (3) (#15.3) around the male end and pull the Wingnut over the Segments to hold them in place.
- Page 21 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Mount the Plug Valve Body on a bench receiver. 6. Insert the two (2) Grooved Pins (#16) into the pin holes in the bottom of the PV Body. Note: Insert Pins small end first.
- Page 22 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 8. Coat O-Rings (#14) with assembly grease then install them into the grooves of the Seat Carriers (#13). Grease the sealing surface of the Seat Carriers. Grease the internal wall of the PV Body.
- Page 23 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Grease both sides of the Seat Spacers (#12) then insert them between the Seat Carriers flush to the wall of the PV Body. Grease the bottom sealing surface of the Plug Body (#11) then install the first Plug Seal (#10).
- Page 24 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 14. Press the Plug Body between the Seat Carriers by applying downward pressure until fully engaged. 15. Coat the second Plug Seal grease with then install on the Plug Body. 16. Coat Backup O-Ring (#8) with grease then install into the groove of the Cap Body (#7).
- Page 25 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 17. Coat O-Ring (#9) with grease then install on top of the Backup O-Ring. Note: Ensure O-Rings (# 8 and # 9) don’t get twisted on each other. Grease the sealing surface of the Cap Body.
- Page 26 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 20. Install the Weather Seal (#6) over the threaded end of the Plug Body and into the pocket of the Cap Body. Ensure concave side is facing up. 21. Apply anti-seize compound the threads of the Cap Screw (#4) then thread it into the top of the PV Body and tighten it...
- Page 27 Grease Fitting (#1) and install it into the Plug Body. Grease the Plug Valve with RDI 2015 performance grease before and after Hydro Test. Note: Refer to Greasing Instruction on page 28. Page 26 of 29...
- Page 28 MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 26. Remove the excess grease from the bore of the Plug Valve with a clean rag. 27. Make a final inspection of the Plug Valve. Ensure the bores are in perfect alignment and the Plug Valve Handle corresponds to the open and close positions of the Plug...
-
Page 29: Greasing Instructions
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 Greasing Instructions Ensure you have the most recent version of the RDI Greasing Instructions by visiting: https://rdironworks.com/products/plug-valves/ or contact our sales team, toll-free: 1.855.973.4766 Tear-Down Procedure WARNING: If the Plug Valve Handle is hard to cycle or turn and the Plug Valve seems to be stuck or locked, there may be pressure trapped in the Valve, also known as “pressure locking”. -
Page 30: Rdi Sales & Service Centers
MM-02 2” Top Entry Plug Valve Maintenance Manual Rev.1 RDI Sales & Service Centers For a list of our locations visit our website @ https://rdironworks.com/contact-a-location-near-you/. Toll Free Phone: 855.973.4733 Toll Free Fax: 855.573.4473 Email: info@rdironworks.com Page 29 of 29...
