instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
LEFT POST
1 PC
2
RIGHT POST
1 PC
3
TOP RAIL
1 PC
4
CENTER RAIL
2 PCS
5
BOTTOM RAIL
1 PC
6
SPACER BLOCK
2 PCS
7
SUPPORT RAIL
1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

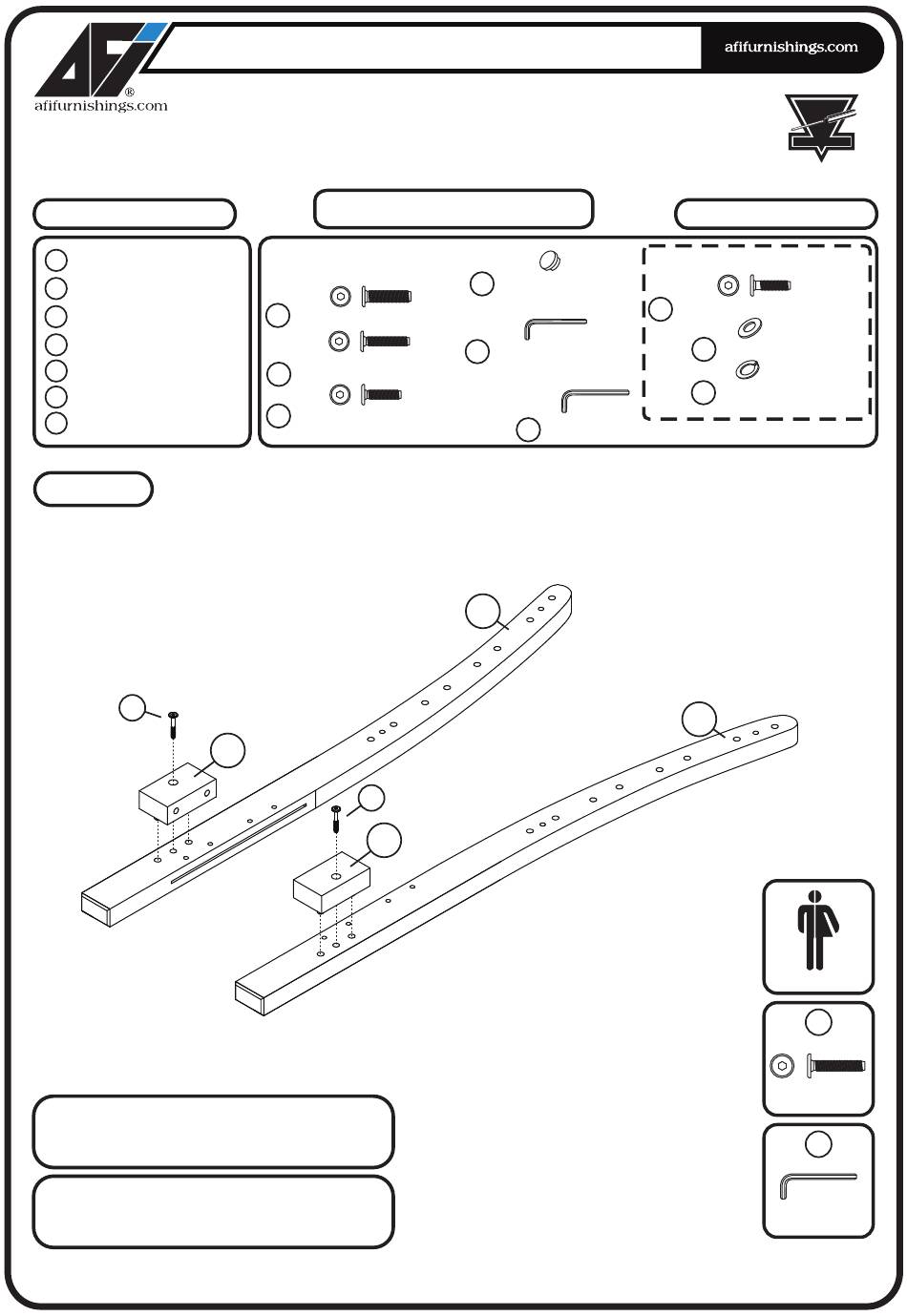

Step 1
Attach spacer block (6) to left right post (1)(2), using JCB (B). Tighten with the Allen wrench (E).
B
PO:
CODE
ITEM
HB-SAV
R-29782X
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
JCB M8 X 40mm (1 1/2") - 4 pcs
B
JCB M6 X 40mm (1 1/2") - 2 pcs
C
JCB M6 X 30mm (1 1/4") - 5 pcs
6
B
6
ITEM
R-29783X
TWIN > FULL
D
Wood button - 4 pcs
Spare - 1pc
Spare - 1 pc
E
Allen wrench M4 - 1pc
Spare - 1 pc
F
Allen wrench M5 - 1pc
Spare - 1 pc
2
READY
TO
ASSEMBLE
HARDWARE
HARDWARE FOR METAL BED FRAME
G
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
H
Flat washer - 4 pcs
Spare - 1 pc
I
Split washer - 4 pcs
Spare - 1 pc
1
Adult assembly
Adult assembly
B
JCB M6 X 40mm
E
Allen wrench M4
Page 1 of 3
Advertisement
Related Manuals for AFi HB-SAV
Summary of Contents for AFi HB-SAV
- Page 1 Step 1 Attach spacer block (6) to left right post (1)(2), using JCB (B). Tighten with the Allen wrench (E). Adult assembly Adult assembly JCB M6 X 40mm CODE ITEM ITEM Allen wrench M4 HB-SAV R-29782X R-29783X Page 1 of 3...
- Page 2 TWIN > FULL Step 2 Attach top rail (3) center rails (4) and bottom rail (5) to the left right post (1)(2) as shown below. Using JCB (A) tighten with Allen wrench (F). Adult assembly Adult assembly Step 3 Attach support rail (7) to the headboard assemble as shown below.
- Page 3 ATTACHING HEADBOARD TO METAL BED FRAME ASSEMBLY INSTRUCTIONS Before assembling your bed, please read through these instructions carefully and familiarize yourself with the different parts. Instructions apply for bed sizes TWIN > FULL > QUEEN > KING Adult assembly Metal bed frames are sold separately from wood headboards. The hardware shown on this page is supplied with your wood headboard for attaching the bed frame to the headboard.
