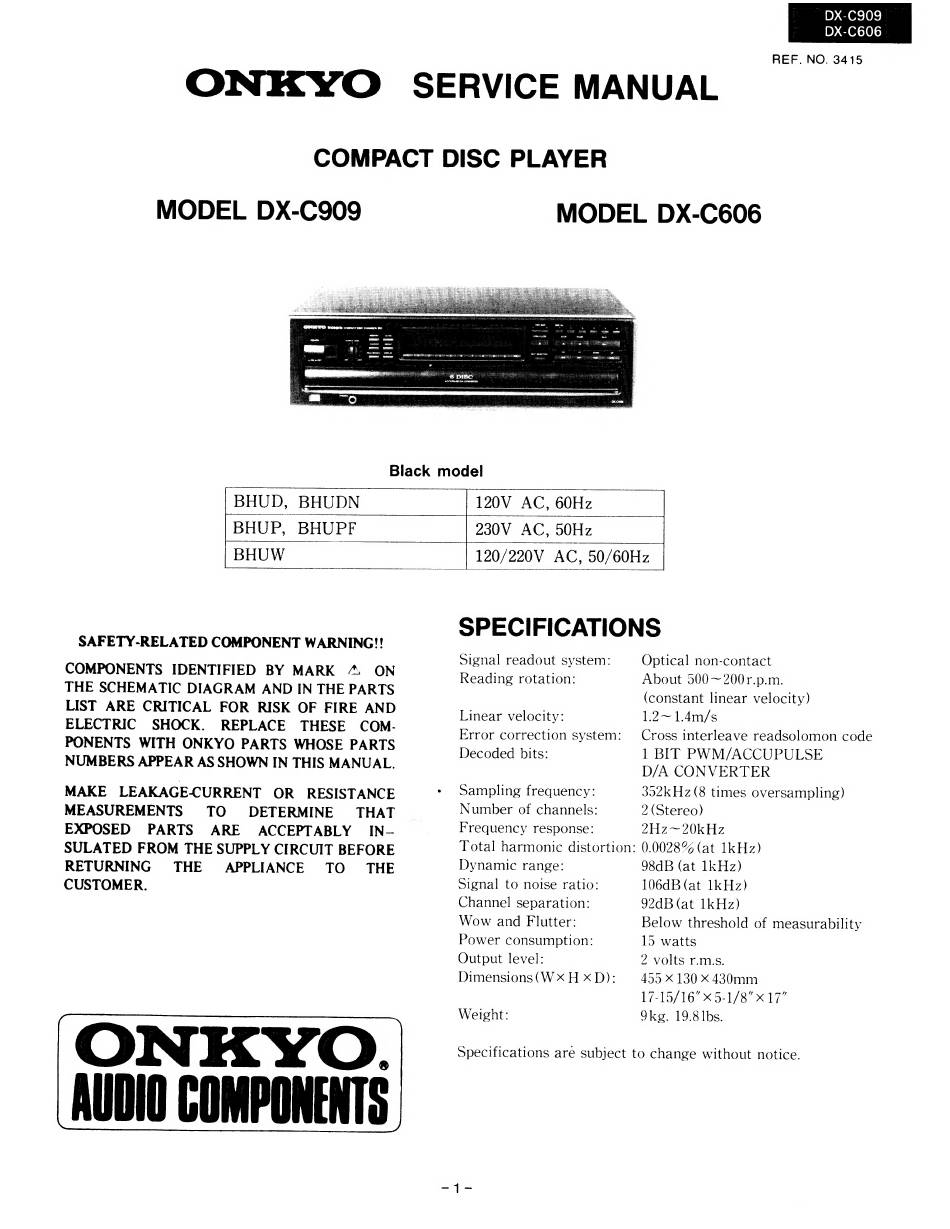

Onkyo DX-C909 Service Manual

DX-C909
DX-C606
REF. NO. 3415
COMPACT DISC PLAYER
MODEL DX-C909
MODEL DX-C606
Black model
BHUD, BHUDN
BHUP, BHUPF
120V AC, 60Hz
230V AC, 50Hz
120/220V AC, 50/60Hz
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK "4 ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
SPECIFICATIONS
Signal readout system:
Reading rotation:
Optical non-contact
About 500~200r.p.m.
(constant linear velocity)
Linear velocity: 1.2~1.4m/s
Error correction system: Cross interleave readsolomon code
Decoded bits: 1 BIT PWM/ACCUPULSE
D/A CONVERTER
Sampling frequency: 302kHz (8 times oversampling)
Number of channels: 2 (Stereo)
Frequency response: 2Hz~20kHz
Total harmonic distortion: 0.0028% (at 1kHz)
Dynamic range: 98dB (at 1kHz)
Signal to noise ratio: 106dB (at 1kHz)
Channel separation: 92dB (at 1kHz)
Wow and Flutter:
Below threshold of measurability
Power consumption: 15 watts
Output level: 2 volts r.m.s.
Dimensions(WXH XD): 455 * 130 X 430mm
17-15/16" X 5-1/8" 17"
Weight: 9kg. 19.8 lbs.
Specifications are subject to change without notice.
