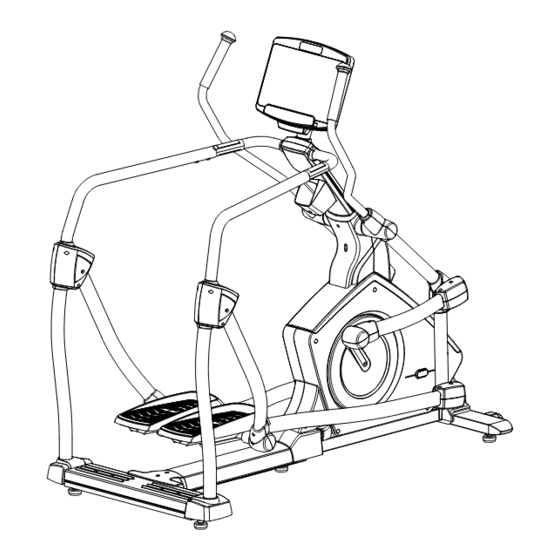

Salter FENX M-9600 Owner's Manual

Climber
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MANUAL DEL USUARIO
OWNER'S MANUAL
OWNER'S MANUAL V. 122022 ENGLISH
M-9600 CLIMBER FENX
This manual can be downloaded on www.salter.es
M-9600 CLIMBER FENX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FENX M-9600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Salter FENX M-9600

Summary of Contents for Salter FENX M-9600

  • Page 1 MANUAL DEL USUARIO OWNER’S MANUAL M-9600 CLIMBER FENX OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 2: Safety Instructions

    21. Make sure that adequate space is available for access to and passage around the equipment; keep at least a distance of 1 meter from any obstruction object while using the machine. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 3: Before You

    2. BEFORE YOU BEGIN” Thank you for choosing SALTER. We take great pride in Too often, our busy lifestyles limit our time and producing this quality product and hope it will provide many opportunity to exercise. The device provides a convenient...

  • Page 4: Hardware Identification

    121 Self-Tapping Screw, Flat Head (M4x20mm) 6pcs 125 Screw, Round Head (M5xp0.8x15mm) 17 pcs 177 Bolt, Hex Head Flange (M8xp1.25x16mm) 9 pcs 126 Screw, Round Head (M6xp1.0x15mm) 4 pcs OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 5 Bottom Handrail Rear Base Frame Pedal Support Arm Front & Rear Stabilizer Decoration Cover Cover Adaptor & Power Pivoting Arm Long Stationary Handrail Main Frame Cord OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 6 Remove above bolts & nuts. d. Attach the Rear Stabilizer (3) to the Main Frame (1) and secure with 4pcs Bolts (M8×65mm)(137) and Nylon Nuts (M8)(152). OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 7 2pcs Washers (8x30x2.0t)(113) and 2pcs Hex Flange Bolts (M8xp1.25x16mm)(177) have preassembled into two sides of the Upright Post. b. Remove above washers and bolts. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 8 Double make sure Pivoting Arm (14, 15) has no any movement space/gap. Attach the Upright Post Decoration Covers (167, 168) to the Upright Post (4) and fully secure with 4pcs Bolts (M5xp0.8x15mm)(125). OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 9 Then follow the above step c. and d. to attach the Rear Right Linkage (16). e. Then fully tighten all Linkage (16) Bolts as tight as possible. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 10 Then attach the bottom side of Left and Right Long Stationary Handrail (10,11) to the Rear Stabilizer (3) and fully secure with 4pcs Nylon Nuts OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 11 Bottom Handrail Decoration Cover - Inner (7) and secure with 2pcs Screws (M4x12mm)(118) into the bottom of the Rear Stabilizer (3). c. Repeat the above same procedure for the right side. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 12 Support Arm (18) and fully secure with 4pcs Socket Bolts (M8xp1.25x15mm)(134) and 4pcs Washers (8x23x2.0t)(112). Then place the Non-Slip Pad (75) onto the Right Pedal (76). b. Repeat the above same procedure for the left side. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 13 Make sure the Console Tube (40) is in the center of the Handlebar and then fully tighten 2pcs Hex Head Flange Bolts (M8xp1.25x16mm)(177) as shown below. NOTE: Be careful not to pinch the wires. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 14 For Ethernet connection if necessary, connect Ethernet cable (45c, d) as the right drawing shown. NOTE: Be careful not to pinch the wires. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 15 (31, 32) to the Right Long Stationary Handrail (11) and secure with 2pcs Screws (M4x20mm)(121) and 2pcs Bolts (M5xp0.8x15mm)(125). b. Repeat the above same procedure for the left side. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 16 **Check whether the levelers are even on the floor (if the levelers are not even will produce noise), if not, review the LEVELING NOTE. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 17 Make sure the floor is level while towing the item.  TRIDE LENGTH INFO. The paten stride length of this item is 24’’ (609.6mm). OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 18 Select the different training programs such as HRC, virtual ride, etc. c. Decide whether to identify yourself. d. View health recommendations. e. Access to the administration mode OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 19 OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 20 7.2 IDENTIFICATION SCREEN: Once an athlete is registered in SALTER CLOUD (www.salter.cloud), he/she can identify him/herself in the console through his/her credentials or download the SALTER FIT APP and follow the steps indicated on the screen. It is important to have registered the athlete within the club to access these features.
  • Page 21 [Workout view, where power and resistance can be manually changed] [You can choose the types of parameters to be viewed at any time]. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 22 COOL-DOWN [Selecting the thermometer starts a 5-minute cooldown, halving the resistance.] [In the cool-down screen, some buttons are blocked after selecting it]. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 23: End Of Training

    PAUSE [Pressing the two grids pauses the exercise]. END OF TRAINING [Pressing "STOP" on the console to end the exercise]. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 24 MULTIMEDIA [Multimedia are entertainment applications such as Youtube, Television, Spotify, etc.]. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 25 [The TV has the same operation, but the change of channels (dates) and their selection in the list (control button) are added]. [List of channels] OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 26: After Training

    AFTER TRAINING [In the exercise results you will be able to see the performance but also save the training in SALTER CLOUD for later viewing (if previously identified)]. 7.4 PROGRAMS: different types of workouts to choose from. Within each of them, you will have options quite similar to the "quick workout".
  • Page 27 The training ends when the target parameter is reached. During the training a bar will be filled in indicating how much has been exceeded and how much is left of the target parameter. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 28 - MOUNTAIN/INCLINATION/CARDIO/INTERVALS/STRENGTH/etc.: Each one is characterized by specific incline graphs depending on the type of training to be performed. These vary over time depending on the difficulty. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 29 - VO2 MAX TEST: Maintain between 65 and 75 revolutions per minute while the resistance will gradually increase. The longer you can hold out, the higher the score. For safety, heart rate must be measured at all times. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 30 [For safety, it is mandatory to send the heart rate to the machine through the handlebars or a heart belt (more recommended)]. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 31 - 12 MINUTE TEST: The goal is to burn as many calories as possible by increasing the resistance level and RPM (calculating calories based on these two parameters). The evaluation will be made on this measurement of Kcal, age and gender. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 32 In all of them, the speed is progressively adapted to reach the target heart rate. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 33 If the heart rate is below the target, the speed will be increased, while if it is above the target, the speed will be reduced to keep the heart rate slightly below the target. The incline can be increased or decreased. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 34 CUSTOM: this program differs from the previous ones in that you can edit the target heart rate you want to set for training. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 35 7.7 VIRTUAL" TRAINING: A selection of interactive videos are available. Each will have unique distance and slope curves depending on the terrain of the site. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 36 7.8 WATTS PROGRAM: In this program, you will work for constant watts in a certain time. The machine will adapt the resistance dynamically to always achieve the same. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 37: Administration Mode

    7.9 ADMINISTRATION-MODE To access to the administration mode, you have to press the central part of the SALTER logo for 3 seconds and it will ask for an administrator password: "5598". There you will be able to configure the WiFi, see the software version of the machine and get information (log) to share with the technicians in case something is not working properly.
  • Page 38 In the event that the system has a serious error, the machine will display the following screen: In case you have activated the emergency switch, for safety reasons, any training or menu will be disabled: OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 39: Conditioning Guidelines

    14, your heart rate is 140 beats per minute. (A six-second count is used because your heart rate will drop rapidly when you stop exercising.) Adjust the intensity of your exercise until your heart rate is at the proper level. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 40: Warm-Up And Cool-Down

    A proper cool-down lowers your heart rate and allows blood to return to the heart. Your cool-down should include the stretches listed above and should be completed after each strength-training session. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 41: Maintenance

    11. WARRANTY CONDITIONS Consult warranty conditions at www.salter.es. It is essential to indicate the serial number of the equipment for repairs under warranty. OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...

  • Page 42: Product Parts Drawing

    12.PRODUCT PARTS DRAWING OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 43 OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
  • Page 44 OWNER’S MANUAL V. 122022 ENGLISH M-9600 CLIMBER FENX This manual can be downloaded on www.salter.es...
