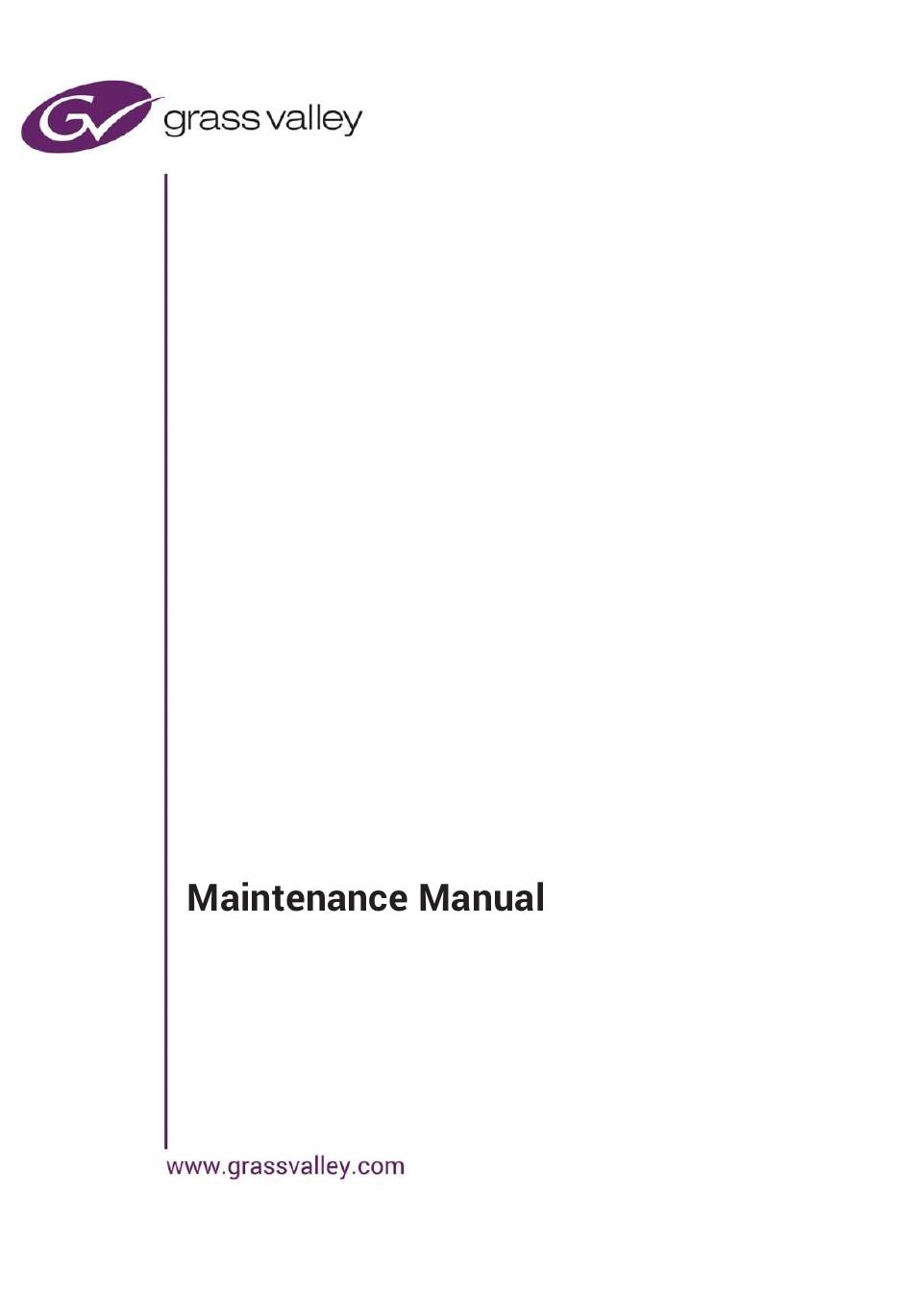

VF 7-100X
7-Inch HD VF for LDX100 Series
13-00102-000 vv1.0
2021-3-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VF 7-100X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRASS VALLEY VF 7-100X

Summary of Contents for GRASS VALLEY VF 7-100X

  • Page 1 VF 7-100X 7-Inch HD VF for LDX100 Series 13-00102-000 vv1.0 2021-3-16...

  • Page 2: Patent Information

    Please read the following terms and conditions carefully. By using LDX IP Series documentation, you agree to the following terms and conditions. Grass Valley hereby grants permission and license to owners of LDX IP Series to use their product manuals for their own internal business use. Manuals for Grass Valley products may...

  • Page 3: Important Safety Information

    Use anti-static procedures, equipment and surfaces during servicing. The presence of this symbol in or on Grass Valley equipment means that it has been tested and certified as complying with applicable Underwriters Laboratory (UL) regulations and recommendations for USA.
  • Page 4 Notices Warnings A warning indicates a possible hazard to personnel, which may cause injury or death. Observe the following general warnings when using or working on this equipment: • Any instructions in this manual that require opening the equipment cover or enclosure are for use by qualified service personnel only.

  • Page 5: Battery Handling

    • Avoid extreme highlights as these can cause various kinds of optical reflections. • Be careful when connecting and disconnecting fiber cables. • Do not connect Grass Valley camera systems with other manufacturer’s camera system parts. • Make connections swiftly and firmly to avoid false error messages.
  • Page 6 Notices Mesures de sécurité et avis importants La présente section fournit des consignes de sécurité importantes pour les opérateurs et le personnel de service. Des avertissements ou mises en garde spécifiques figurent dans le manuel, dans les sections où ils s’appliquent. Prenez le temps de bien lire les consignes et assurez-vous de les respecter, en particulier celles qui sont destinées à...
  • Page 7 électrique, de compatibilité électromagnétique et de conformité environnementale. Le symbole ci-contre sur un appareil Grass Valley ou à l’intérieur de l’appareil indique qu’il est conforme aux normes applicables en matière de sécurité laser. Avertissements Les avertissements signalent des conditions ou des pratiques susceptibles d’occasionner des blessures graves, voire fatales.
  • Page 8 Notices • Ne pas utiliser cet appareil dans une atmosphère explosive. • Présence possible de courants de fuite. Un raccordement à la masse est indispensable avant la mise sous tension. • Après tout travail d’entretien ou de réparation, faites effectuer des contrôles de sécurité par le personnel technique qualifié.

  • Page 9: Environmental Information

    équivalent recommandé par le fabricant. Disposez des piles usagées conformément aux instructions du fabricant. Avant de vous séparer de votre équipement Grass Valley, veuillez consulter les informations de mise au rebut et de recyclage à: http://www.grassvalley.com/assets/media/5692/Take-Back_Instructions.pdf Précautions pour les écrans LCD et TFT Regarder l’écran pendant une trop longue période de temps peut nuire à...

  • Page 10: Lithium Batteries

    Lithium Batteries Battery Warning Your Grass Valley equipment usually comes with at least one button battery located on the main printed circuit board. The batteries are used for backup and should not need to be replaced during the lifetime of the equipment.

  • Page 11: Laser Safety

    Laser Safety - Fiber Output SFP and QSFP Modules Warning LASER SAFETY The average optical output power does not exceed 0 dBm (1mW) under normal operating conditions. Unused optical outputs should be covered to prevent direct exposure to the laser beam. Even though the power of these lasers is low, the beam should be treated with caution and common sense because it is intense and concentrated.
  • Page 12 Notices Safety and EMC Standards This equipment complies with the following standards: Safety Standards EN62368-1:2014 + AC:2015 Safety of Audio/video, information and communication technology equipment EMC Standards This unit conforms to the following standards: EN55032:2012 + C2:2013 Electromagnetic Compatibility - Emission EN55103-2:2009 Electromagnetic Compatibility - Immunity WARNING...
  • Page 13 EMC Performance of Cables and Connectors Grass Valley products are designed to meet or exceed the requirements of the appropriate European EMC standards. In order to achieve this performance in real installations it is essential to use cables and connectors with good EMC characteristics.
  • Page 14 1-4200200-0000 - VF 7-100X 7-Inch HD VF for LDX100 Series List of Field Replacable Units (FRUs): Part Number Description 510-00049-01 7" FHD VF Sun Hood...
  • Page 16 94-00085-000 - 7 INCH FHD VF HOUSING List of Field Replacable Units (FRUs): Part Number Description Quantity 94-00038-010 FRONT ASSEMBLY 7 INCH FHD VF 500-00096-03 DISPLAY CABLE ASSY 7" FHDLCD 500 MM HIGHLY FLEXIBLE 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 4-000000022-00 FRU kit COMBI SCR PAN STL ST M3X10 90-00059-000 PCBA TITAN MAIN BOARD 7”...
  • Page 18 94-00038-010 - FRONT ASSEMBLY 7 INCH FHD VF List of Field Replacable Units (FRUs): Part Number Description Quantity 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 4-000000043-00 FRU kit 7" FHD VF Rotary Knob...
  • Page 20 94-00084-000 - REAR ASSEMBLY 7 INCH FHD VF List of Field Replacable Units (FRUs): Part Number Description Quantity 510-00013-01 EXTENDED MEDIUM FP VF BRACKET 94-00080-000 VF FLYING LEAD ASSY 7 INCH 4-000000020-00 FRU kit COMBI SCR PAN STL ST M3X6 4-000000007-00 FRU kit CLB FLEX ↓...
  • Page 22 3922 407 64271 - VENTED BACK PLATE ASSY List of Field Replacable Units (FRUs): Part Number Description Quantity 4-000000042-00 SERV. ASSY TALLY LIGHT COVER...
  • Page 24 510-00013-01 - EXTENDED MEDIUM FP VF BRACKET List of Field Replacable Units (FRUs): Part Number Description 510-00013-01 EXTENDED MEDIUM FP VF BRACKET Complete Bracket 3922 402 05444 KNOB 2 VF 500-00011-02 HANDGRIP MEDIUM VF LEFT 500-00012-02 HANDGRIP MEDIUM VF RIGHT 3922 402 05433 KNOB 1 VF 3922 402 03643...
