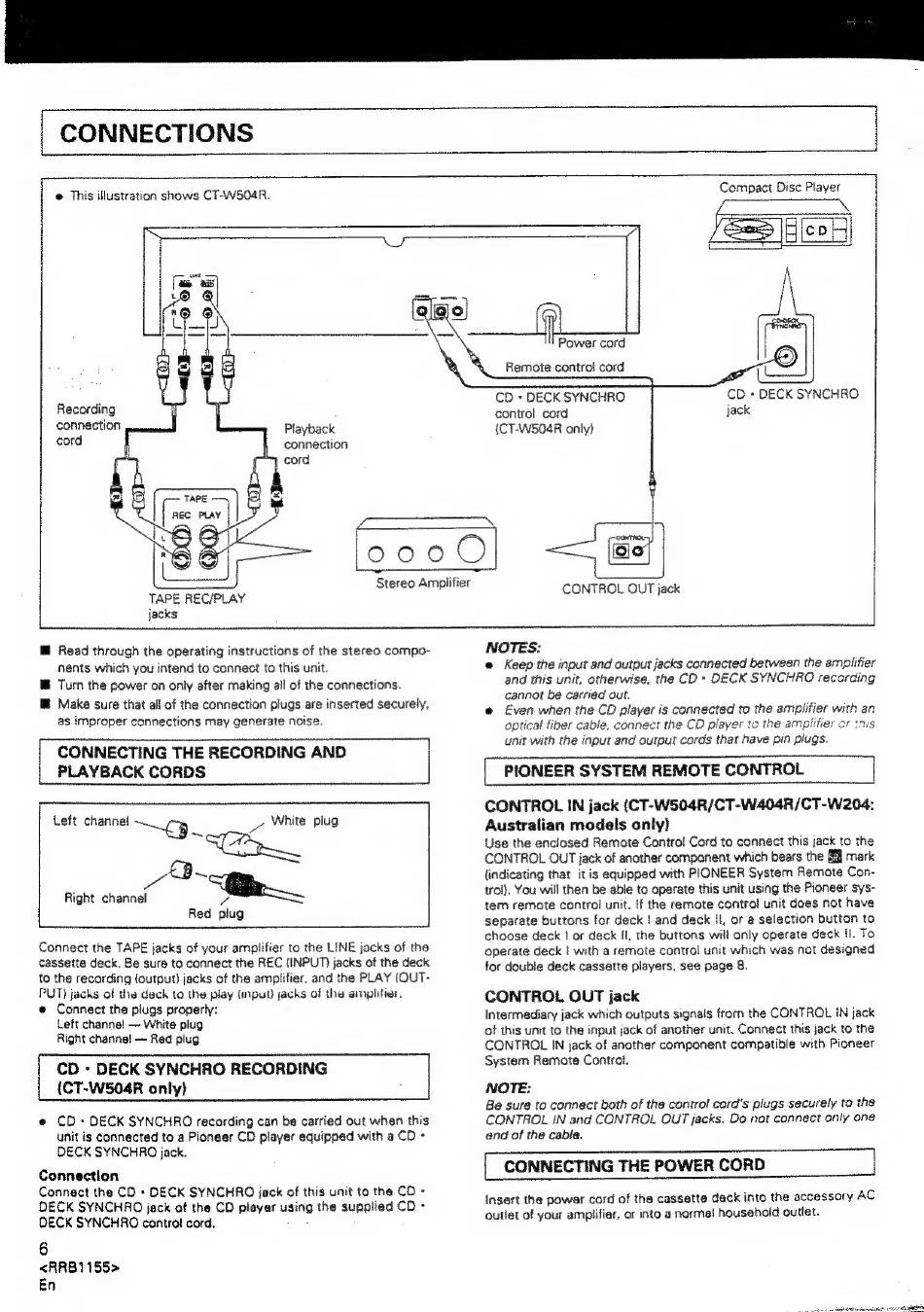

CONNECTIONS
@ This illustration shows CT-W504R.
Compact Disc Player
Recording
connection
Playback
cord
connection
cord
TAPE REC/PLAY
jacks
@ Read through the operating instructions of the stereo compo-
nents which you intend to connect to this unit.
@ Turn the power on only after making all of the connections.
@ Make sure that all of the connection plugs are inserted securely,
as improper connections may generate noise.
CONNECTING THE RECORDING AND
PLAYBACK CORDS
|
C0000
Stereo Amplifier
Power cord
Remote control cord
CD + DECK SYNCHRO
jack
CD + DECK SYNCHRO
control cord
{CT-W504R only)
CONTROL OUT jack
NOTES:
@ Keep the input and output jacks connected between the amplifier
and this unit, otherwise, the CD - DECK SYNCHRO recording
cannot be carried out.
Even when the CD player is connected to the amplifier with an
optical fiber cable, connect the CD player to the amplifier or ms
unit with the input and output cords that have pin plugs.
[PIONEER SYSTEM REMOTE CONTROL
Red plug
Connect the TAPE jacks of your amplifier to the LINE jacks of the
cassette deck. Be sure to connect the REC (INPUT) jacks of the deck
to the recording (output) jacks of the amplifier, and the PLAY (OUT-
PUT) jacks of the deck to the play {mpul) jacks of the aimplitier,
e Connect the plugs properly:
Left channel — White plug
Right channel — Red plug
CD - DECK SYNCHRO RECORDING
(CT-W504R only}
e CD + DECK SYNCHRO recording can be carried out when this
unit is connected to a Pioneer CD player equipped with a CD +
DECK SYNCHRO jack.
Connection
Connect the CD - DECK SYNCHRO jack of this unit to the CD -
DECK SYNCHRO jeck of the CD piayer using the supplied CD -
DECK SYNCHRO control cord.
6
<RRBI155>
En
CONTROL IN jack (CT-W504R/CT-W404R/CT-W204:
Australian models only}
Use the enclosed Remote Control Cord to connect this jack to the
CONTROL OUT jack of another component which bears the 8 mark
(indicating that it is equipped with PIONEER System Remote Con-
trol), You will then be able to operate this unit using the Pioneer sys-
tem remote control unit. {f the remote control unit does not have
separate buttons for deck | and deck il, or a selection button to
choose deck | or deck fl, the buttons will only operate deck II. To
operate deck | with a remote control unit which was not designed
for double deck cassette players, see page 8.
CONTROL OUT jack
Intermediary jack which outputs signais from the CONTROL IN jack
of this unit to the input jack of another unit. Connect this jack to the
CONTROL IN jack of another component compatible with Pioneer
System Remote Control.
NOTE:
| CONNECTING THE POWER CORD
