Summary of Contents for TTLOCK K710

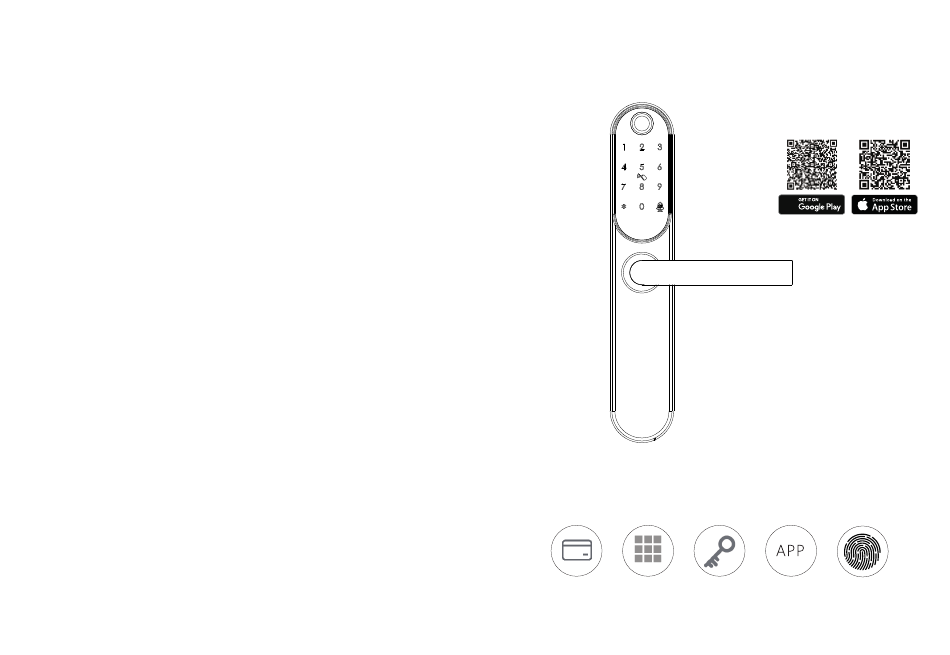

- Page 1 USER MANUAL- SMART DIGITAL LOCK Scan the QR code below to download the APP Search Google Play or APPLE Store with TTLock IC Card Passcode Fingerprint Version 1.0 K710 Edition 2023...
- Page 2 LOCK ACCESSORIES SYSTEM INTRODUCTION Material Stainless Steel,ABS,Arcylic Available Color Black Nickel/Stainless Steel Door Thickness 35-64mm Communication Bluetooth 5.0 iOS 7.0 or above, Android 4.4 or above Support OS Battery Life 7000 times normal unlock(10-12 months) Power Supply DC 6v:4pcs AAA alkaline batteries 1 Pcs 1 Pcs 1 Pcs...
- Page 3 Fold the template, make the handle center line align at the door horizontal center line, 1.2 Turn the handle 180 degrees counterclockwise. then draw out the hole lines at front and side. 1.3 Tighten the screw and adjust the handle. K710-85#240X22 DOOR SIDE DOOR FRONT/BACK Installation Template Plantilla de Instalación...
- Page 4 INSTALLLATION STEPS 6.1 Assemble the Mortise 6.2 Assemble the Front Panel 6.5 Fix the Lock Panel 6.6 Assemble the Battery Box Assemble the mortise( ) into the slot which 1. Press hard the spindle (h) into the handle hole. Tight the back panel with front panel with the Insert 4 pcs AAA alkaline batteries and fix the cover is drilled according to the template.
- Page 5 3.Change Master Passcode OPERATION STEPS you can find the new master passcode in the mobile APP under “Settings”.also you can edit the master Please enroll the administrator before you start to use this lock. you can follow the passcode on App directly and upload Admin passcode to the lock like the below photo. operation steps as below: 1.Initialization Press the reset button...
- Page 6 5.Delete User Fingerprint 7.Delete User Passcode Operation successful! “Please Input Administrator Operation successful! “Please Input Administrator Press *70 # button Press *71 # button All fingerprints are deleted. passcode” all passcodes are deleted. passcode” APP operation: you can deleted the added fingerprints one the lock and server. Under the mobile APP, you can find the added passcodes, you can edit any passcode and click Delete button to delete the passcode.
- Page 7 Select Wi-Fi and enter password Add Gateway Finish paring gateway 11.Unlock Records You can find the unlock records for the passcode/IC Card/Fingerprint etc. More details, you can refer the manual of our TTLOCK App operation steps.
- Page 8 11. Troubleshoot and Solution(FAQ) Question 1: why the lock is always open when I fixed it on the door at first time? Answer: The lock is under factory state before leaving factory, it is to ensure the user can unlock the door any time during installation when they did not take the manual key in hand.
