Maintenance Manual
v1.0
2023.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSPIRE 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji INSPIRE 3

Summary of Contents for dji INSPIRE 3

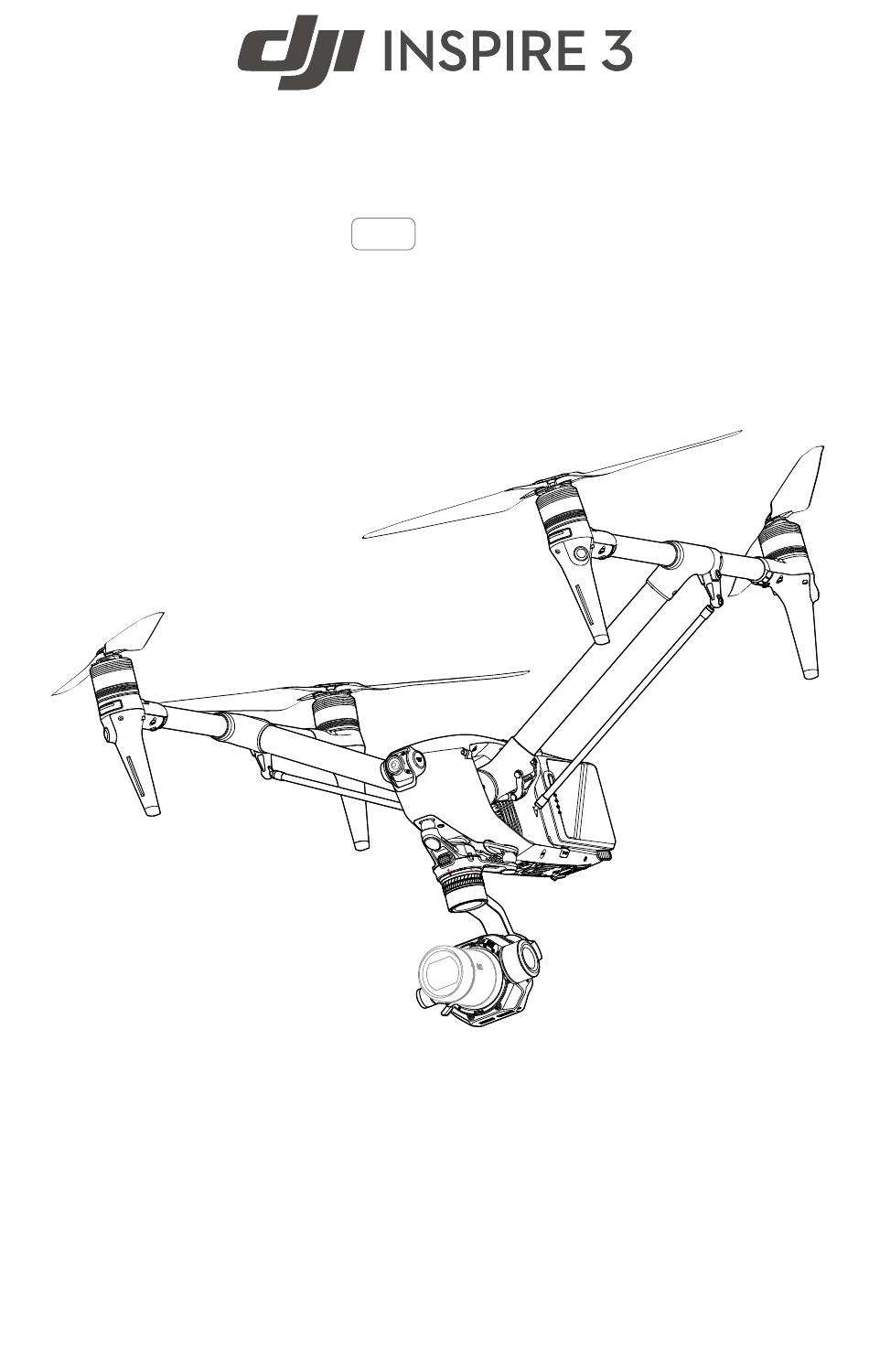

  • Page 1 Maintenance Manual v1.0 2023.12...
  • Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI UAV.

  • Page 3: Table Of Contents

    Battery Compartment Data Ports PROSSD Slot Waterproof Covers Heat Dissipation Vents Gimbal Damping Plate Gimbal Camera Infrared Sensing System and Vision System Lenses, Auxiliary Lights Transformation Mechanism Charging Hub Charging Ports Heat Dissipation Vents © 2023 DJI All Rights Reserved.   ...
  • Page 4 DJI Inspire 3 Maintenance Manual Battery Battery Maintenance Conditions Checklist for Maintenance Standard Charge and Discharge Operation Instructions Battery Replacement Standard Battery Disposal Battery Usage Notes Firmware Update and System Calibration List of Wearing Parts Health Management System DJI Maintenance Service...

  • Page 5: Introduction

    Failure to read and follow instructions and warnings may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity. By using this product, you hereby signify that you have read this disclaimer carefully and that you understand and agree to abide by all terms and conditions of this document and all relevant documents of this product.

  • Page 6: Flight Safety Guidelines

    Refer to the User Manual for instructions on updating the firmware to the latest version. If the firmware update fails, restart the device and try again. Contact DJI Support if the issue persists.

  • Page 7: Pre-Flight Checklist

    13. DJI Pilot 2 and the aircraft firmware have been updated to the latest version. 14. Check DJI Pilot 2 for any ESC error messages. Make sure to follow the prompts and fix any abnormalities before flight.

  • Page 8: Inspection And Maintenance

    DJI Inspire 3 Maintenance Manual Inspection and Maintenance Routine inspection before operations or regular maintenance can greatly improve the reliability of the aircraft, reduce potential safety hazards, and extend the service life of the aircraft. Make sure to check the following items carefully.

  • Page 9: Motor Air Filters

    DJI Inspire 3 Maintenance Manual Motor Air Filters • The air filters are not severely damaged or deformed. • If they are severely damaged or deformed (such as being bumped), return the aircraft to the factory for repair. Propellers •...

  • Page 10: Flight Controller

    DJI Inspire 3 Maintenance Manual Flight Controller • After powering on the aircraft, wait for the self-check to complete and that there are no flight controller error messages in the app. • Within 1 minute of powering on the aircraft a strong GNSS signal is reached in an outdoor open environment, with the Home Point automatically updating and the RTK data meeting the heading measurement standard.

  • Page 11: Frame Arm Leds

    DJI Inspire 3 Maintenance Manual Frame Arm LEDs • Make sure that the frame arms are not damaged and that there is no foreign matter on the frame arm surface. Battery Compartment • The battery ports are clean and dry without any corrosion. Clean any unwanted dust or water inside the battery compartment.

  • Page 12: Prossd Slot

    DJI Inspire 3 Maintenance Manual PROSSD Slot • Make sure that there is no foreign matter in the PROSSD slot and to check if the thermal pad in the PROSSD slot is worn. • The PROSSD can be correctly installed and removed.

  • Page 13: Gimbal Damping Plate

    DJI Inspire 3 Maintenance Manual Gimbal Damping Plate • The gimbal dampers are not damaged, loose, aged, or deformed. If necessary, scan the QR code or go to the address listed to watch the tutorial video on how to replace the gimbal damper.

  • Page 14: Infrared Sensing System And Vision System Lenses, Auxiliary Lights

    DJI Inspire 3 Maintenance Manual Infrared Sensing System and Vision System Lenses, Auxiliary Lights • Clean the lenses with a soft, dry cloth. • Make sure that the lenses of the sensor are not loose, cracked, or worn. • The auxiliary lights are not loose, cracked, or worn.

  • Page 15: Charging Hub

    DJI Inspire 3 Maintenance Manual Charging Hub Charging Ports • The charging ports are not damaged and the metal terminals are not deformed. • There is no foreign matter in the slot of the charging ports. • Regularly clean the charging port slots to remove any foreign matter.

  • Page 16: Battery

    Charge and discharge the battery as per instructions. • Insert the battery into the aircraft and power on to view the battery information in DJI Pilot 2. Make sure the difference in cell voltage is less than 0.1 V and that the battery firmware is updated to the latest version.

  • Page 17: Standard Charge And Discharge Operation Instructions

    DJI Inspire 3 Maintenance Manual Standard Charge and Discharge Operation Instructions Charge to 100% Rest for 1 hour Discharge to below 20% Rest for 1 hour 1. Fully charge the battery and let the battery rest for at least 24 hours.

  • Page 18: Firmware Update And System Calibration

    DJI Inspire 3 Maintenance Manual Firmware Update and System Calibration It is recommended to update the firmware of the aircraft and the remote controller in time and to perform calibration regularly to keep the aircraft in its best condition. Category...

  • Page 19: Health Management System

    View the status of each module and upload abnormal status logs on the Health Management System (HMS) page in DJI Pilot 2. 1. Enter the HMS page in DJI Pilot 2. 2. View the condition of each module of the connected device.
  • Page 20 DJI Inspire 3 Maintenance Manual 3. If any module is abnormal, tap to view the warning message. ©    2023 DJI All Rights Reserved.
  • Page 21 DJI Inspire 3 Maintenance Manual 4. Tap the warning message troubleshooting. If the abnormal status still exists after troubleshooting, users can upload the log and send the QR code or the tracking number to DJI Support for help. 5. At the same time, go to log management and select the aircraft, remote controller, and charging hub* with abnormal flights to upload logs according to the log deadline.
  • Page 22 DJI Inspire 3 Maintenance Manual ©    2023 DJI All Rights Reserved.

  • Page 23: Dji Maintenance Service

    DJI Inspire 3 Maintenance Manual DJI Maintenance Service 1. Enter the Maintenance Service page in DJI Pilot 2. 2. View the flight data and maintenance items of the current devices. 3. When the conditions for maintenance service are met, it is recommended to tap Request Maintenance to open the Maintenance Service page, and tap Maintenance Application and then fill in the information.

  • Page 24: After-Sales Service

    • DJI Support hotline service. Contact DJI Support to describe the product issue and service type, such as a repair, return, or replacement, and then ship the product back according to the guidelines. Visit the following website to view phone support options for the hotline service: https://www.dji.com/support...
  • Page 25 DJI SUPPORT This content is subject to change. https://www.dji.com/inspire-3/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI and INSPIRE are trademarks of DJI. Copyright © 2023 DJI All Rights Reserved.
