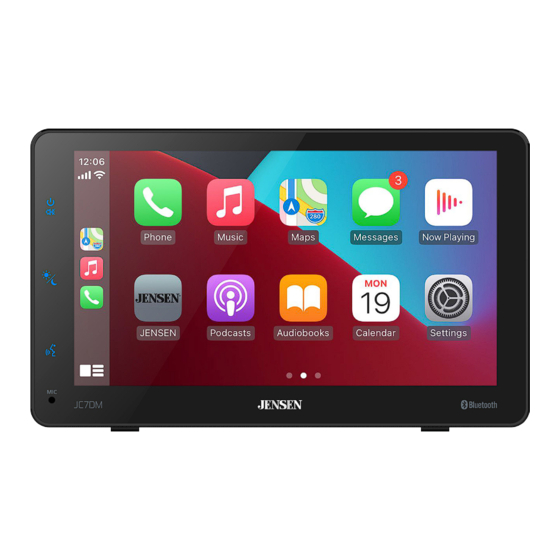

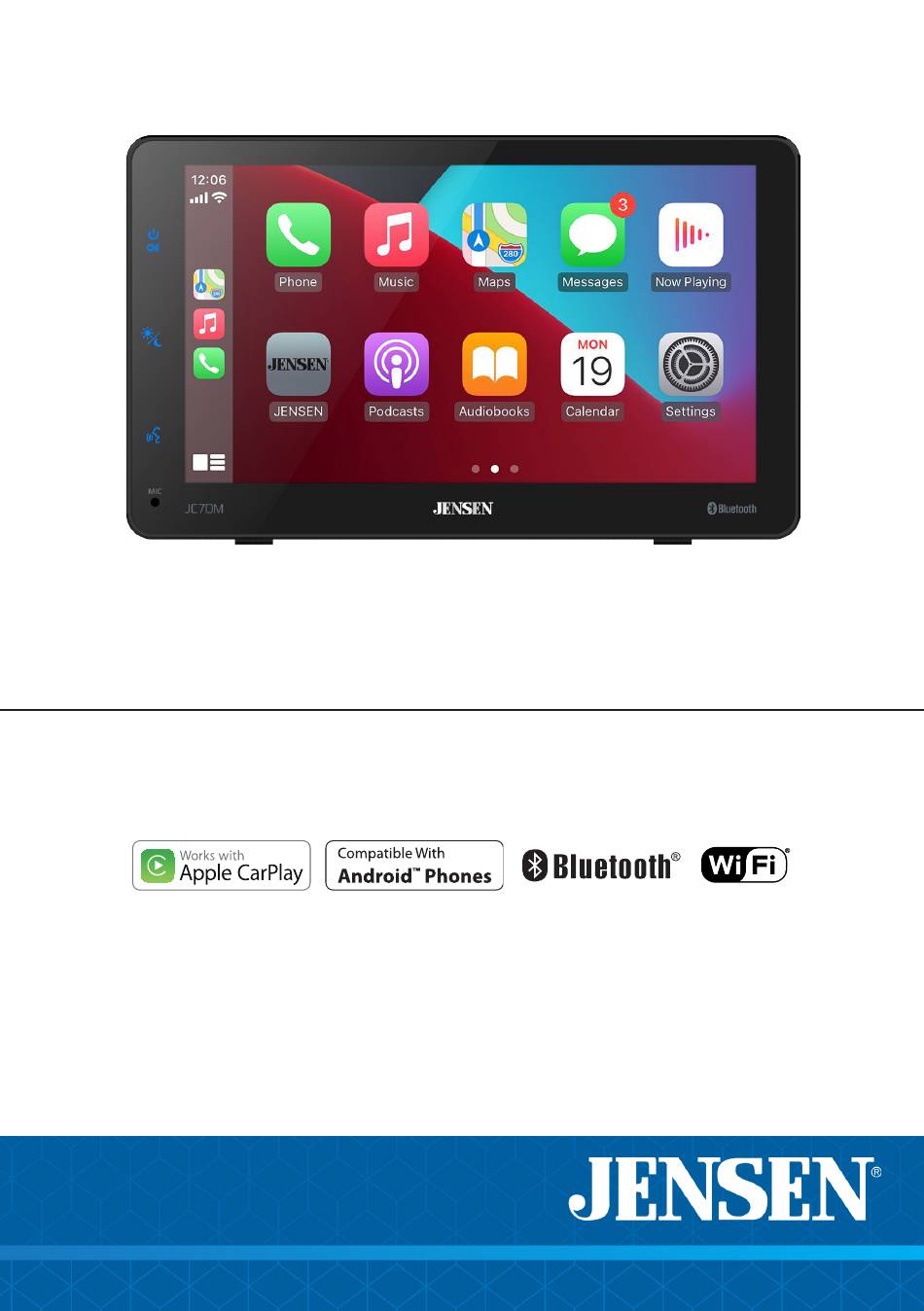

- Page 1 JC7DM Dash Mount 7" Touchscreen Monitor with Wireless Apple CarPlay® and Android INSTALLATION & OWNER’S MANUAL...
- Page 2 Copyright Notes The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. Use of the Apple CarPlay logo means that a verhicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that use of this product with iPhone, iPod or iPad may affect wireless performance.
-
Page 3: Table Of Contents
JC7DM Table of Contents Page Important Notes .......... -
Page 4: Important Notes
• Ensure that the JC7DM is mounted in a place that will not block your view of the road. • The JC7DM has a built-in speaker. However, to play music over your car radio please ensure that the FM Transmitter function has been set up and is connected properly with your car radio (see page 9) or use the 3.5mm audio output located on the 12V power adapter and connect to your car radio AUX input (if available). -
Page 5: Preparation/Mounting
JC7DM Preparation Before You Start • Avoid installing the unit where it would be subject to high temperatures from direct sunlight, dust, dirt or excessive vibration. WINDSHIELD / DASHBOARD MOUNT SILICON COVER (Cover on the back) Adjustable plastic legs • There are two adjustable plastic legs on the back of the unit that can help balance the display on the dash. -
Page 6: Wiring Diagram
JC7DM Wiring Diagram - Inputs/Outputs GPS ANTENNA Note: Use to improve map accuracy. Speaker Send audio to your existing car stereo through the 3.5mm AUX output. 12V Power Adapter USB Playback External Microphone USB port for charging only (2.1A) Wired Apple CarPlay and Use to improve voice quality. -
Page 7: Control Locations
JC7DM Control Locations The radio display features the following functions and displays: POWER/MUTE DIMMER VOICE ACTIVATION BUTTON INTERNAL MICROPHONE... -
Page 8: General Operation
JC7DM General Operation Long press icon to turn the unit on. Press and hold to turn the unit Power On/Off off. Volume Press icon at the top left corner of the screen to display the volume .Press to increase or decrease the volume level. - Page 9 JC7DM General Operation Setup Menu From the Main Menu screen, select Setup to access the Settings menu and select from categories represented by the icons on the right of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
-
Page 10: Audio Operation
JC7DM Audio Operation Equalizer Menu From the Main Menu screen, Press the Equalizer icon on the main menu screen to adjust Fader and Balance controls, Equalizer (16-Band Tone Control and 8 Presets EQ Settings). FM Transmitter FM Transmitter Operation From the main menu, touch FM Transmitter icon on the screen to select FM Transmitter mode. -
Page 11: Usb Operation
JC7DM USB Audio Operation From the main menu, touch the USB icon on the main screen. Main Menu Press icon to return to Main Menu screen. Current Mode Indicator Displays source currently playing. List Press icon to access a list of all files and folders on the device. -
Page 12: Media Compatibility
JC7DM Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3/.flac File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... - Page 13 JC7DM Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
-
Page 14: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "JC7DM". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 15 JC7DM Bluetooth Operation Bluetooth Music Press "MUSIC" to initiate the Bluetooth music playback via A2DP. Setup Press "SETUP" to access Bluetooth settings. Call Dial a number and touch the Phone icon to call. Phone Keypad Use the keypad to dial a phone number.
-
Page 16: Driving Orientation Settings
JC7DM Driving Orientation Settings To enhance the driving experience, the JC7DM allows the user to configure Apple CarPlay and Android for either Left Hand Drive (LHD) or Right Hand Drive (RHD) vehicles. To select desired configuration, select either LHD or RHD from the Settings menu:... -
Page 17: Wired & Wireless Apple Carplay Operation
JC7DM Wired & Wireless Apple CarPlay Operation Wired connection 1. Connect an Apple CarPlay compatible device to this unit via USB. 2. Press the Apple CarPlay icon. The Apple CarPlay home screen appears. Wireless connection Before using Apple CarPlay wirelessly, turn on the Bluetooth/Wifi function on the Phone. -
Page 18: Apple Carplay Operation
JC7DM Apple CarPlay Operation Apple CarPlay is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen. - Page 19 JC7DM Apple CarPlay Operation When the Apple CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands.
-
Page 20: Android Operation
JC7DM Android Operation Android brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music. - Page 21 JC7DM Android Operation Using Android The Android home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
-
Page 22: Register Your Product
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Name... -
Page 23: Specifications
JC7DM Specifications Monitor Panel size: 7” Touchscreen Resolution: 1024 (H) x 600 (V) Phone Connectivity Connection method: Wired / Wireless Rear USB Compatibility: High Speed USB 2.0 USB Class: Mass storage class General Car Connectivity: Broadcast to FM Station or 3.5mm Aux Output... -
Page 24: Warranty
JENSEN dealer and used in the U.S.A. • Call us toll-free at (888) 921-4088 What is covered? This warranty covers all defects (Monday-Friday, 9:00 a.m. - Page 25 Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
