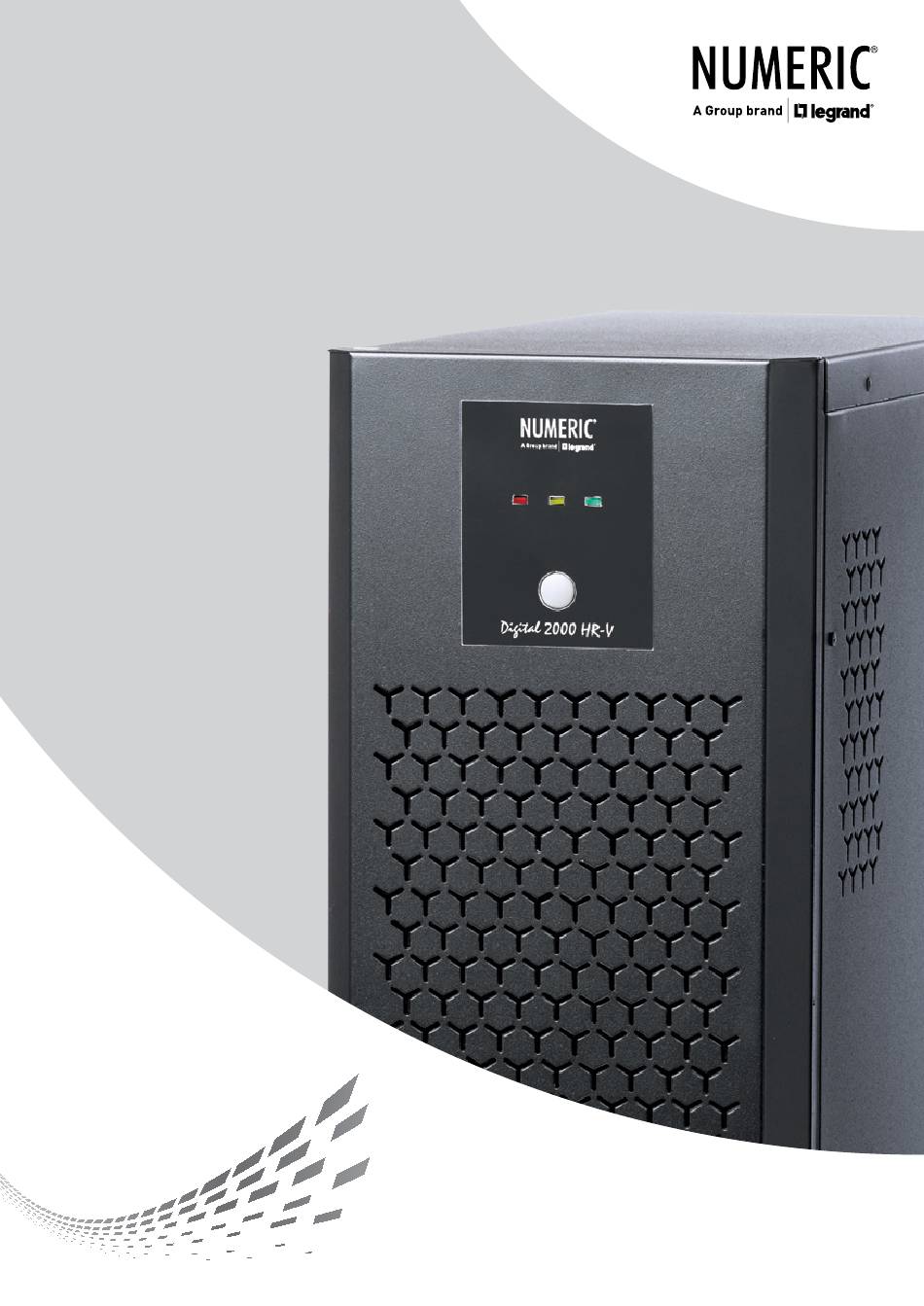

- Page 1 USER MANUAL DIGITAL 2000 HR-V IN-BUILT BATTERY NEW ENERGY TO POWER www.numericups.com...
- Page 2 CONGRATULATIONS! We are delighted to welcome you to our family of customers. Thank you for choosing Numeric as your reliable power solution partner, you now have access to our widest network of 250+ service centers in the country. Since 1984, Numeric has been enabling its clients to optimize their business with top-notch power solutions that promise seamless and clean power with controlled environmental footprints.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Save these instructions: This manual contains important instructions for this UPS that should be followed during installation and maintenance of the UPS and batteries. • CAUTION! Do not drop any metal tool on the WARNING! batteries. It could spark or short-circuit the batteries and could cause an explosion.
- Page 4 SYSTEM DESCRIPTION Digital 2000 HR-V in-built 28 AH (x2) Front panel Back panel 1. LED Display 3. AC Input 2. Power Switch 4. Output Sockets 5. Circuit Breaker 6. Battery Breaker...
- Page 5 INSTALLATION AND OPERATION 1. Inspection NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Checking Package Contents You should receive the following items inside the package. • UPS Unit with Battery Connect Internal Battery The rating of the DC Breaker must be according to the UPS battery current (50 Amp).
- Page 6 SPECIFICATIONS MODEL DIGITAL 2000 HR–V Capacity VA/W 2000 VA/1200 W INPUT Voltage 230 VAC Voltage range 140 – 300 VAC Frequency range 50 Hz OUTPUT AC Voltage regulation (Battery mode) 230 V +/- 10% Frequency Range (Battery mode) 50 Hz +/- 1 Hz Transfer time Typical 4 –...
- Page 7 TROUBLE SHOOTING Use the table below to solve minor problems. Problem Possible cause Remedy Utility power is AC input power cord Check AC input power connection. is not connected well. normal but the unit Input breaker is activated. Reset the input breaker. is in battery mode.
- Page 8 Head Office 10th Floor, Prestige Center Court, Office Block, Vijaya Forum Mall, 183, N.S.K Salai, Vadapalani, Chennai - 600 026. Phone: +91 44 4656 5555 Lucknow Pune Regional Offices 209/B, 2nd Floor, Cyber Heights, Pinacle 664 park avenue, 8th floor, New Delhi Vibhuti Khand, Gomti Nagar, Plot no 102+103, CTS No.
