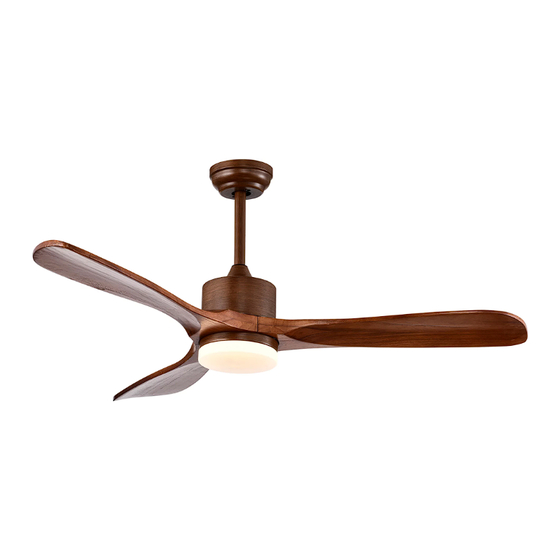

52-Inch Ceiling Fan
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
USER'S MANUAL
ES10118US
Advertisement
Table of Contents
Related Manuals for Costway ES10118US
Summary of Contents for Costway ES10118US
- Page 1 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
- Page 2 Safety Information Pre-Installation SPECIFICATION 1.To reduce the risk of electric shock,the electricity has been WARNING: turned off at the circuit breaker or 0.10 12.6 fuse box before begin. 0.12 15.6 To reduce the risk of personal 2.The outlet box and support injury, do not bend the blade structure must be securely 0.18...
- Page 3 Pre-Installation (continued) Pre-Installation (continued) HARDWARE INCLUDED PACKAGE CONTENTS components table Slide-on mounting bracket Canopy 5.1” Ball/downrod assembly 10” Ball/downrod assembly(standby) "R"Locking Pin Hanging Pin NOTE: Hardware not shown to actual size Coupling cover Plastic wire nut (not to scale) Fan-motor assembly Blade arm screw and lock washer Mounting screws Expansion Bolts...
- Page 4 Installation of the hanging bracket (suspension part) Installation of the hanging bracket (suspension part) WOODEN CEILING CONCRETE CEILING Mounting Bracket(A) Mounting Bracket(A) Expension Bolts<B> Flat Washers <C> Spring Washers<D> Self tapping screw<B> Nuts<E> Note: According to the ceiling of different materials, use different screws to fix the hanging bracket.Don't fix the hanging bracket on the wood ceiling less than 0.5”...
- Page 5 Install the hanging part of the ceiling fan Assembly - Hanging the Fan(continued) Make wire connections Making the electrical connections WARNING: Each wire not supplied with this fan is designed to accept up to one 12-gauge house wire and two wires from the fan.lf you have larger than 12-gauge house wiring or more than one house wire to connect to the fan wiring, consult an electrician for the proper size wire nuts to use.
- Page 6 Assembly - Hanging the Fan (continued) Assembly - Attaching the Fan Blades Preparing for mounting 1. Attaching the blades to the arms 1: Fasten the arm to the fan-motor assembly by inserting the alignment post into the slot on the bottom of the motor and tightening the pre-installed arm screws.
- Page 7 Assembly - Attaching the Lights (continued) Assembly - Attaching the Lights Assembly - Attaching the Lights Install light source 1.Remove the pre installed screws and install the lamp at the specified position 1 Rotate and install the glass lamp cover to the fan. Operation...
- Page 8 Use of Remote Control TROUBLESHOOTING Fan On/off Natural Wind -Check the main and branch circuit fuses or breakers. Fan Speed Level 2 -Check the line wire connections to the fan and switch Fan Speed Level 3 Fan Speed Level 1 wire connections in the switch housing.
