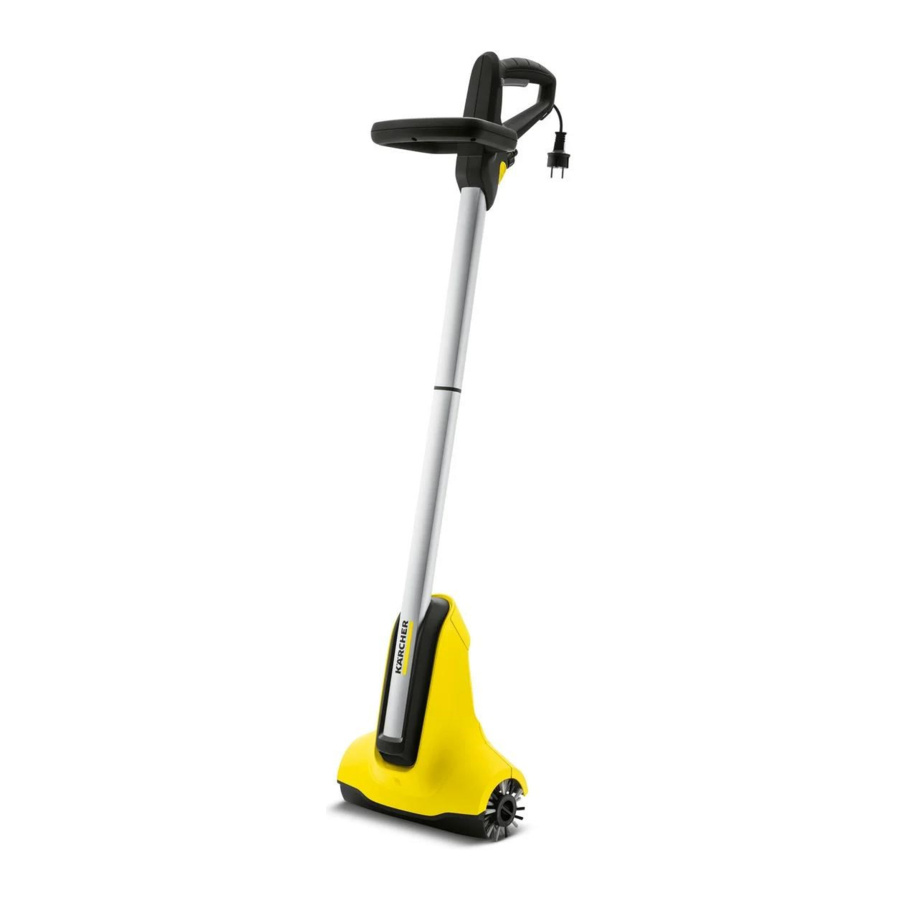

Kärcher PCL 4 - Surface Patio Cleaner Manual

General notes

Read the original instructions before using the device for the first time and act in accordance with it. Keep the original instructions for future reference or for future owners.

Type plate

The major device information is specified on the type plate.

The location of the type plate on the device is specified in the "Device description" chapter.

Intended use

Risk of injury from flung particles
Use the device only on pre-cleaned surfaces and observe the safety instructions.

The device is intended for the removal of soiling from outdoor surfaces, such as e.g. terraces. The device is suitable for wooden, stone or composite material (WPC) surfaces, according to the brushes used.

Foreseeable misuse

Any type of improper use is prohibited.

The operating personnel are liable for damage resulting from incorrect use.

Do not use the device for cleaning planted areas such as e.g. lawn checker bricks.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Device description

1. Power switch
2. Power switch lock
3. Handle
4. Handle
5. Cleaning head
6. Rotating brushes
7. Water nozzles
8. Gearbox casing
9. Splash guard with parking edge
10. Mains cable
11. Hook and loop fastener
12. Water filter
13. Water filter seal
14. Water connection (plug system)
15. Water volume regulation valve
16. Type plate
17. Brush fastener (twist lock)

Symbols on the device

	Danger of electric shock. Unplug the mains plug if the mains cable is damaged!
	Risk of injury due to flaying objects!
	Risk of injury. Keep other persons away!
	Risk of eye and hearing damage. Wear safety goggles and hearing protection!
	Risk of damage. Do not clean the device with a hose or high-pressure water jet!
	Risk of damage. Do not subject the device to rain!
	Risk of burns from hot surfaces!

Installation

Note
The handle is installed only once. The handle halves may not be separated again after installation. Take care to ensure that the water hose and the mains cable are not crushed during installation.

1. Plug the handle sections together. The pipe latches audibly into place.

2. Press the water hose and then the mains cable into the cable channel from the top to the bottom (starting at the hand grip).

3. Press any protruding cable and water hose firmly into the brush head casing.


The mains cable and water hose must not protrude out of the device during operation!

Initial startup

1. Close the water volume regulation valve.

2. Connect the water hose to the device. The coupling must audibly engage.
3. Secure the water hose to the hand grip using hook and loop fastener to provide strain relief.

4. Connect the water hose to the water tap and open the water tap. Please observe the maximum water pressure (see "Technical data").
5. Connect the mains cable to a suitable extension cable labelled as conforming to protection class IPX4. Please be sure to observe the safety instructions.

Operation

Correct handling of the brushes

Note
Use only the brushes suitable for the surface to be cleaned and the device.
Observe the following instructions for correct use of the brushes.

1. Position the brushes evenly on the surface to be cleaned.

2. Guide the brushes over the surface with light pressure.

Switching on the device

Note
You must unlock the power switch in order to start the device. The specified sequence must be adhered to

1. Press the unlocking button.

2. Press the power switch. The device starts up.
3. Release the power switch.
   The device stops.

Water volume regulation valve

Note
The volume of water emitted by the device through the nozzles can be adjusted using the water volume regulation valve to suit the cleaning task.

1. Pull the valve lever backwards to increase the water volume.
2. Push the valve lever forwards to decrease the water volume or close the valve completely.
   See Illustration H

Cleaning wooden surfaces

Use the brushes for wooden floor coatings for cleaning wooden surfaces.

Note

• Test the device on an inconspicuous area before using on sensitive surfaces.
• Do not allow the device to remain in one area, keep it in motion.

Note

• Always clean wooden surfaces in the direction of the grain. Always clean along the floorboards or wooden elements and down the slope.

Note
Pre-treatments may be removed from pre-treated surfaces. Uneven light-dark effects result from the type of wood or its treatment. It is a desirable result to remove the film on weathered wooden surfaces.

1. Guide the device slowly over the surface.


For optimum results, apply a suitable care agent or preservative after cleaning!

Cleaning stone surfaces

Use the brush for stone coverings for cleaning stone surfaces in outside areas (not included in the scope of delivery - see the Accessories and spare parts chapter for sources).

Note
Remove any loose elements such as gravel before cleaning.

1. Guide the device slowly over the surface.

Storing the device

The device can be stored hanging on a wall hook. You can also alternatively place the device on the parking edge of the spray guard. Take care to ensure that the device does not stand on the brushes to prevent damage to the bristles.

1. Disconnect the connections.
2. Empty the device (see "Frost protection").
3. Clean the device (see "Cleaning").

Transport

Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during transportation.

Storage

Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during storage.

Frost protection

ATTENTION
Danger of frost
Incompletely emptied devices can be destroyed by frost.
Completely empty the device and accessories.
Protect the device from frost.

1. Store the device in a frost-protected place.
   Note
   If frost-free storage is not possible:
2. Open the water volume regulation valve completely.
3. Stand the device upright and allow it to drain.


Care and service

Replacing the brushes

Danger of electric shock
Injuries due to touching live parts
Switch off the device
Remove the mains plug.

Note
Always replace both brushes at the same time. The brushes must be replaced when the gearbox housing touches the ground while cleaning the surface without exerting pressure on the device.

ATTENTION
Danger of burns
The gearbox can be very hot after use. Allow the device to cool down before replacing the brushes.

1. Unscrew and remove the brush fasteners.
2. Pull out the worn brushes.
3. Fit the new brushes.
4. Fit and tighten the brush fasteners.


Pay attention to the assignment when fitting the brush fasteners (left / right, as seen on the type plate)!

Cleaning the water filter

Note
If the water flow is inadequate then the water filter of the device must be cleaned.

1. Unscrew the plug connector at the water connection.
2. Pull out the water filter.
3. Clean the water filter under running water against the direction of flow.
4. Insert the water filter.
5. Screw on the plug connector.

Ensure that the sealing ring in the plug connector has been inserted correctly.

Cleaning

ATTENTION
Improper cleaning
Damage to the device
Do not clean the device with a hose or high-pressure water jet.
Do not use aggressive detergents.
Do not knock the brush on the ground.

1. Remove soiling, plant residue and sand/stone from the brush.
2. If necessary, remove the brushes and clean them under running water.
3. Clean the device with a moist cloth.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Device does not run or switches off during operation

No voltage supply

• Check the voltage supply (plug connections of the extension cable).

The fault current protection switch has triggered

• Check the in-house fault current protection switch. Consult a qualified electrician if the fault occurs frequently.

The motor overload switch has triggered

• Allow the device to cool down (at least 10 minutes). The motor overload switch resets automatically and the device is ready for operation again.
  The power switch must not be pressed during the cooling phase to avoid the device starting up unexpectedly. Always wait for the specified cooling time before restarting the device. In case of a repeated shut-down, reduce the pressure on the brushes while cleaning and hold the device at a flatter angle.

Unsatisfactory cleaning results

Dirty brushes

• Clean the air brushes.

Worn brushes

• Replace the brushes.

Clogged water filter

• Cleaning the water filter
• Replace the water filter

Clogged water nozzles

• Have the water nozzles replaced by an authorised Customer Service department.

General safety instructions

• Risk of asphyxiation. Keep packaging film out of the reach of children.

• Persons with reduced physical, sensory or mental capabilities and persons lacking experience and knowledge may only use the appliance if they are properly supervised, have been instructed on use of the appliance safely by a person responsible for their safety, and understand the resultant hazards involved.
• Children must not operate the device.
• Children must be supervised to prevent them from playing with the appliance.

Note

• Do not operate the device when other persons or animals are in the work area.

Safety instructions

• Please observe the requirements of EN 1717 when connecting this product to the drinking water network and contact your sanitation specialists if you have any queries.
• Operate the device only with untreated, clean fresh water. The device must not under any circumstances be operated with explosive, corrosive or inflammable substances.
• The water temperature must not exceed 35°C.
• Never fully immerse the device in liquids.
• Only operate the device outdoors.
• Regularly check the device for damage. Do not operate the device if you discover visible damage.
• Do not use the device on surfaces where water is already present.
• Ensure that the surface to be cleaned is free of sand, stones or loose elements before starting work. These can be flung away during cleaning or damage the surface and the device.
• Do not pull on the connected hose or mains cable.
• Only switch the device on when the brushes are on the floor.
• Be aware of the recoil of the device during operation. The device pushes toward the operator when switched on. Hold the device securely and maintain a solid and safe footing.
• Do not lift the device off the floor when switched on.
• Use only a suitable extension cable labelled as conforming to protection class IPX4.
• All live parts in the work area must be protected against spray water.
• The mains plug and coupling of the extension cable must be water tight and must not be placed in water.
• Use the device only when connected to a correctly installed fault current protection switch having a trigger current no greater than 30 mA. Consult a qualified electrician if you have any queries.
• Protect the device from frost and excessive heat (permitted ambient temperature range of 5°C to 40°C).
• Do not operate the device in the vicinity of devices that are connected to electrical power.
• Check that the mains connection cable with mains plug is undamaged each time before using the device. To avoid any possible danger, a damaged mains connection cable must be immediately replaced by the manufacturer, or the authorised customer service department or a qualified electrician.
• Do not damage the power supply and extension cable by running over it, crushing or yanking it or similar. Protect the mains cable from heat, oil and sharp edges.
