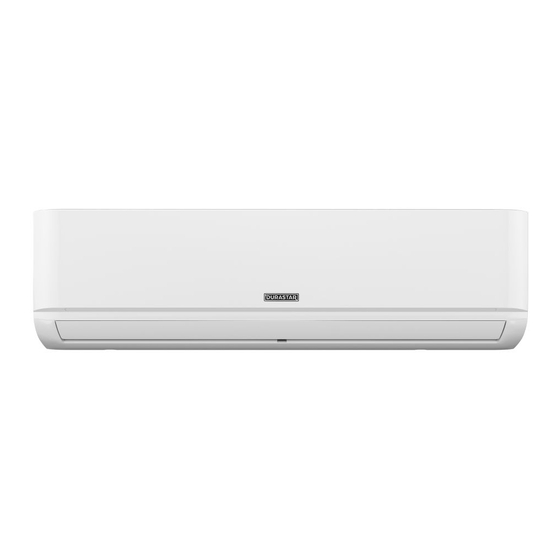

DURASTAR DRAW33F1B Owner's Manual

Wall mounted indoor unit split-style air conditioner

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

OWNER'S MANUAL

WALL MOUNTED INDOOR UNIT

SPLIT-STYLE AIR CONDITIONER

DRAW06F1B, DRAW09F1B, DRAW12F1B,

DRAW18F1B, DRAW24F1B, DRAW33F1B

Model Number:

Serial Number:

Purchase Date:

Installing Contractor Company Name:

TIP

Capture relevant information about your Durastar mini-split equipment before it is

installed and write it above for future reference.

DURASTAR.COM

Table of Contents

Need help?

Do you have a question about the DRAW33F1B and is the answer not in the manual?

Questions and answers

Summary of Contents for DURASTAR DRAW33F1B

Page 1 WALL MOUNTED INDOOR UNIT SPLIT-STYLE AIR CONDITIONER DRAW06F1B, DRAW09F1B, DRAW12F1B, DRAW18F1B, DRAW24F1B, DRAW33F1B Model Number: Serial Number: Purchase Date: Installing Contractor Company Name: Capture relevant information about your Durastar mini-split equipment before it is installed and write it above for future reference. DURASTAR.COM...
Page 2: Table Of Contents
REMOTE CONTROL ............................10 REMOTE CONTROL SCREEN INDICATORS ..................11 OPERATING MODES ............................12 ADVANCED BUTTONS AND FEATURES .....................13 LOUVERED AIR FLOW ...........................17 LED DISPLAY INDICATORS.........................18 MANUAL OPERATION (USE WITHOUT REMOTE) .................18 CARE AND MAINTENANCE .........................19 TROUBLESHOOTING ............................21 LIMITED WARRANTY - PARTS........................25 DURASTAR.COM...
Page 3: Introduction
• Read the troubleshooting section of this manual as it will help you diagnose and solve common issues. • Visit us on the web at www.durastar.com to download product guides and up-to-date information. • If you need warranty service, our friendly customer service representatives are available via email at questions@durastar.com or by telephone at 1-888-320-0706.
Page 4: Important Safety Precautions
Do not wash the air conditioner with water as this could cause an electric shock. • Disconnect the power supply by turning it off at the circuit breaker when cleaning the air conditioner. Otherwise, you could risk electric shock. DURASTAR.COM...
Page 5 • The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board. DURASTAR.COM...
Page 6 Do not climb onto or place objects on top of the outdoor unit. • Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high. DURASTAR.COM...
Page 7: Parts Identification
Front Panel Louver Remote Control Air Filter Remote Control Display Window (Behind Front Panel) Holder OUTDOOR UNIT Signal Cable, Air Inlets Refrigerant Pipes, and Drain Hose Wiring Terminal Valve Cover Air Outlet NOTE Outdoor units will vary in appearance. DURASTAR.COM...
Page 8: Accessories
Mounting Plate Battery Remote Control Wall Anchor (depending Holder on model) Remote Mounting Plate (depending Control Holder Screw on model) Mounting Screw Installation Copper Nut Template Drain Joint Carbon Filter Refrigerant Pipe Adapter Drain Joint Seal (included with DRAW33F1B) DURASTAR.COM...
Page 9: Operating Temperatures
Regularly inspect and clean air filters. NOTE Your Durastar heat pump's outdoor unit is equipped with a base pan heater, allowing it to continue to operate at freezing temperatures as low as -22°F (-30°C). When outdoor air temperatures are at or below 32°F (0°C), we strongly recommend keeping the unit plugged in at all times to ensure smooth, ongoing performance.
Page 10: Remote Control
Press to stop the air flow from blowing directly on you if it becomes uncomfortable. See "Advanced Buttons and Features" section. 13. CLEAN Button Turns on and off the CLEAN feature. See "Advanced Buttons and Features" section. 14. LED Button Press to turn on and off the indoor unit's display screen. DURASTAR.COM...
Page 11: Remote Control Screen Indicators
FAN mode. AUTO-100%. NOTE All indicators shown in the above figure are for purposes of clear representation. During actual operation, only the relative indicators are illuminated in the display window. DURASTAR.COM...
Page 12: Operating Modes
*For this series of mini-splits, changing the temperature in DRY mode does not deviate performance from the above mode description. NOTE The FAN speed cannot be adjusted in AUTO or DRY Mode. NOTE Press and hold the UP and DOWN buttons simultaneously for 3 seconds to switch between °F and °C. DURASTAR.COM...
Page 13: Advanced Buttons And Features
25% or 50%. Press the ECO/GEAR button to turn off this feature. NOTE The overall energy consumption of the unit is affected by many factors and this feature's energy reduction level setting will not result in directly proportional money savings on your energy bill. DURASTAR.COM...
Page 14 Press and hold the TURBO button again for seven (7) seconds to unlock and turn off this feature. The remote will display "OF" for three (3) seconds. NETWORK SETUP ( This feature is not available on this unit. DURASTAR.COM...
Page 15 GENTLE button to slow the unit and divert the air flow away from you. Press the GENTLE button again to turn this feature off. This feature is only available under COOL, DRY, and FAN modes. This feature is not available in multiple zone configurations. DURASTAR.COM...
Page 16 The indoor unit will automatically display “EC” when it detects a refrigerant leak. If a leak is detected, turn off your unit and contact your dealer or certified technician for service. This feature is not available in multiple zone configurations DURASTAR.COM...
Page 17: Louvered Air Flow
The horizontal angle of the airflow must be set manually. Grip the deflector rod and manually adjust it to your preferred direction. Deﬂector CAUTION Do not put your fingers in or near the blower and suction side of the unit. The high- speed fan inside the unit may cause injury. DURASTAR.COM...
Page 18: Led Display Indicators
4. Press the MANUAL CONTROL button again to activate FORCED COOLING mode. 5. Press the MANUAL CONTROL button a third time to turn the unit off. 6. Release the supporting rod(some units), close the front panel. Supporting rod (located on the Manual control left or right, button model dependent ) DURASTAR.COM...
Page 19: Care And Maintenance
• Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock. • Do not expose filter to direct sunlight when drying. This can shrink the filter. DURASTAR.COM...
Page 20 After long periods of non-use, or before periods of frequent use, do the following: • Inspect for damaged wires. • Clean all filters. • Check for leaks. • Replace batteries. • Make sure nothing is blocking any air inlets or outlets. DURASTAR.COM...
Page 21: Troubleshooting
The indoor unit makes A rushing air sound may occur when the louver resets its position. noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts. DURASTAR.COM...
Page 22 • Press ON/OFF button on remote control to restart operation. NOTE If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number. DURASTAR.COM...
Page 23 10 minutes. The problem continue may resolve itself. flashing or If not, disconnect the power, then connect it again. Turn the unit on. error code If the problem persists, disconnect the power and contact your nearest appears customer service center. DURASTAR.COM...
Page 24 Wait three minutes after restarting the been activated unit Timer is activated Turn timer off NOTE If your problem persists after performing the checks and diagnostics above, or an error code remains, turn off your unit immediately and contact an authorized service center. DURASTAR.COM...
Page 25: Limited Warranty - Parts
For a period of ten (10) years from the date of installation, if any parts prove defective due to improper workmanship and/or material, Durastar with replace any defective part without charge for the part. Replacement parts carry the balance of the original 10-year parts warranty.
Page 26 Support, please locate your model number, serial number, and proof of purchase. These items will be required to complete any warranty service. A Durastar authorized representative will verify warranty eligibility and determine appropriate service options. Service will be provided during normal business days and hours.
Page 27 THIS PAGE INTENTIONALLY LEFT BLANK. DURASTAR.COM...
