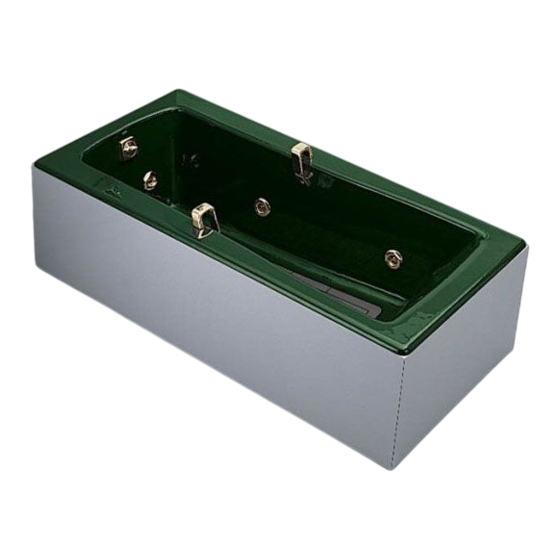

Summary of Contents for Kohler Maestro K-842-H
- Page 1 Maestro Bath Whirlpools: K-842-H K-845-H E1999 Kohler Co. 113906-2-...
-
Page 2: Important Safety Instructions
Kohler Co. drowsiness, and fainting. The effects of hyperthermia include: (1) failure to perceive heat, (2) failure to Install to permit access for servicing. recognize the need to exit the bath, (3) unawareness of... -
Page 3: Table Of Contents
Follow the sections that pertain Kohler Co. reserves the right to make changes in to your particular installation. This will help you avoid product characteristics, packaging, or availability at any costly mistakes. -
Page 4: Roughing-In: K-842-H, K-845-H
No change in measurements if connected with drain il- lustrated. Cut-out 64-1/2” x 30-1/2” Minimum access panel: 2-1/4” Pump/control 20” W x 15” H required 16” 32” 9-1/4” PUMP/CONTROL ACCESS 66” 3/4” 3-1/4” 18-1/4” 2-7/8” 1/4” 3” 1-1/2” I.P.S. THR’D 1-1/2” O.D. 1.25>132 Kohler Co., Kohler, WI 113906-2-... -
Page 5: Product Notices
WARNING: Risk of electrical shock. Disconnect performance and safe operation of the whirlpool. power before servicing. Kohler Co. shall not be liable under its warranty or WARNING: Risk of injury or property damage. otherwise for personal injury or damage caused by Please read all instructions thoroughly before any such unauthorized modification. -
Page 6: Installation Requirements
Old Bath Floor Protection Boards B. SUBFLOOR PREPARATION Check the flooring under the bath, and make repairs as needed. Make sure the subfloor is level. Kohler Co., Kohler, WI 113906-2-... -
Page 7: Stud Pocket Preparation
Sunken Installation: Refer to Roughing-In notes on Page 4 for cut-out details. Make sure the whirlpool is supported by the supporting feet on the bottom of the whirlpool. Do not hang the whirlpool by the rim. Kohler Co., Kohler, WI 113906-2-... -
Page 8: Plumbing Preparation
The whirlpool may need to be moved in and out of the recess until it is shimmed properly if the feet are not accessible from the back or side. Metal Shim Kohler Co., Kohler, WI 113906-2-... -
Page 9: Pump Banding Strap Cut
Framing B. PUMP BANDING STRAP CUT Shipping Bracket (leave attached NOTICE: This step is necessary to make your to bath) Kohler whirlpool operate more quietly. Pump Banding Straps Use tin snips to cut the two banding straps. These banding straps... -
Page 10: Install Plumbing
Bonding (Earthing) Lug* Your Kohler whirlpool bath is equipped with a cord and plug. All wiring of the pump and control has been completed at the factory. A licensed electrician must install a GFCI-protected, 120 V, 20 A, grounded outlet. -
Page 11: Water Test Whirlpool & Electronics
Water-Resistant Wall Material 12. COMPLETE INSTALLATION A. INSTALL HANDLES AND SPOUT After the deck is finished, attach the handles and spout to complete the faucet installation according to the faucet manufacturer’s instructions. Kohler Co., Kohler, WI 113906-2-... -
Page 12: Install Whirlpool Trim Kit
Rotate the jets so they are facing down toward the basin. Jet Trim Fill the whirlpool to a water level at least 2” above the top of the highest jet. Water temperature in the bath should not exceed 104_F (40_C). Kohler Co., Kohler, WI 113906-2-... -
Page 13: Operating Sequence
Insert the Flexjet into the housing, and lightly push and rotate the Flexjet until it snaps into position. Do not force the Flexjet. O-Ring (Must Be NOTE: When installed correctly, the Flexjet should turn Lubricated) smoothly both clockwise and counterclockwise. Kohler Co., Kohler, WI 113906-2-... -
Page 14: Troubleshoot Whirlpool System
B. TROUBLESHOOT WHIRLPOOL SYSTEM This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or a qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor. SYMPTOMS PROBABLE CAUSES RECOMMENDED ACTION 1. - Page 15 Kohler Co., Kohler, WI 113906-2-...
