Summary of Contents for Temtop C1

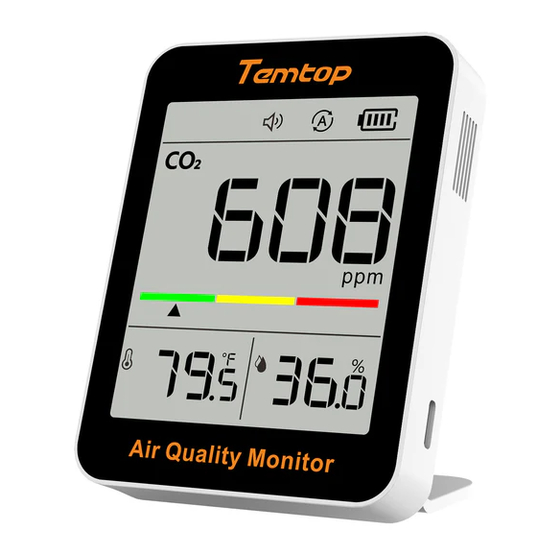

- Page 1 Air Quality Monitor User Manual...
- Page 2 Carbon dioxide(CO ) is a colorless and odorless gas usually derived from the breath of humans and animals. High CO concentration means that fresh air or ventilation is required; otherwise, it may cause problems such as drowsiness, dizziness, loss of attention, and cognitive impairment.
- Page 3 Do not expose the detector to heavily contaminated environments for long ★ periods, as this can damage the sensor. ★ Do not use the detector for long periods in environments with a strong, irritating smell to ensure accurate measurements. Do not dismantle the unit yourself. In the event of a defect, contact your dealer ★...
- Page 4 Buzzer status Health level display area level Temperature & Humidity level Battery level & Charging status Vents Magnetic back Work mode...
- Page 5 Mode button Power button USB port Temperature & Humidity detection port detection port Bracket...
- Page 6 Model Measuring range: 400-5000ppm Resolution: 1ppm Accuracy: ±(40ppm +5%) (400-2500ppm) Measuring range: -10-60°C (14-140°F) Temperature* Resolution: 0.1°C (-9.9-70°C) Accuracy: ±0.5°C Measuring range: 0-99%RH Humidity Resolution: 0.1%RH Accuracy: ±3%RH When charging the product, the temperature will be ± 0.5 error and will be recovered in about 10 minutes after the charging is completed.
- Page 7 Power-saving mode (Sampling interval 10 min) Performance mode (Sampling interval 1 min) About 70 days About 30 days Segment code screen 3.3 inches -10-60°C/0-90%RH When the product is charging, the data will keep refreshing every 5 seconds. Note: The above data are from Temtop Laboratory.
- Page 8 Power button 1 ) Press 3s to turn on/o the C1 monitor. 2 ) Short press to turn on/o the alarm. Buzzer switch Icon Displayed--buzzer sound on the device is turned on; Disappears--the buzzer sound is turned o .
- Page 9 The C1 has two working modes, and you can switch the working mode by pressing the mode button after powering on. Mode button 1 )Short press to switch between the work mode (2 di erent types) Mode display 2 )Long press 2s to switch between the...
- Page 10 2. C1 monitoring function Power display Charging icon USB interface 1 ) When the battery is displayed as empty, please charge it in time, and the charging icon will be displayed when charging. 2 ) When the battery power is extremely low, the battery icon...
- Page 11 3. CO calibration Switch on the detector in an outdoor ventilated area; Long press the to enter the calibration state, the CO title on the screen flashes, the CO display area starts to count down 200 seconds; the countdown ends, and the calibration is complete. Note: During manual calibration, the monitor must be exposed to fresh outdoor air (approx.
- Page 12 threshold level indication Green represents a good CO level (400 to 1000 ppm) Yellow represents the average CO level (1001 to 1500 ppm) Red represents an unhealthy CO level (1501 to 5000 ppm) Note: When an increase in CO concentration reaches a poorer level range, the buzzer alarm is triggered.
- Page 13 Tabletop Stand Place Directly Magnetic Back (Bracket Included)
- Page 14 Detector x 1 USB cable x 1 User manual x 1 Bracket or accessories set x 1...
- Page 15 Q: Why are there two modes? A: We o er two modes to cater to di erent usage scenarios. Mode is suitable for situations where real-time monitoring of environmental parameters is needed. It has a higher data collection frequency but shorter battery life.
- Page 16 A: According to Temtop Laboratory's testing, continuous real-time monitoring of data for an extended period has a negligible impact on the device's lifespan. Q: Why is the temperature high when charging? A: The temperature and humidity sensor is located inside the product.
- Page 18 Sales: sales@elitecheu.com...
