USER MANUAL
EN

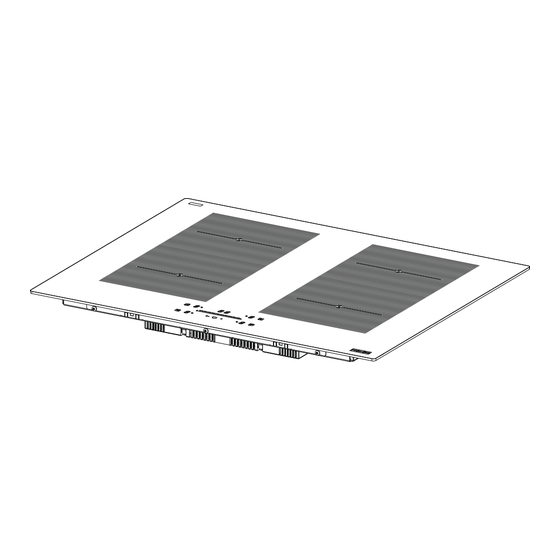

FMA 654 I F KL BK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMA 654 I F KL BK and is the answer not in the manual?

Questions and answers

Related Manuals for Franke FMA 654 I F KL BK

Summary of Contents for Franke FMA 654 I F KL BK

  • Page 1 USER MANUAL FMA 654 I F KL BK...

  • Page 2: Safety Information

    minals must be laid out so that 1. SAFETY INFORMATION they allow the live wire to be ex- tracted before the earth wire if it For your own safety and comes loose. correct operation of the • The manufacturer cannot be appliance, please read held responsible for any dam- this manual carefully be-...
  • Page 3 • Children must be supervised • Do not rest metal objects such to ensure that they do not play as knives, forks, spoons and with the appliance. pan lids on the surface of the hob, as they might overheat. • This appliance must not be used by persons (including •...

  • Page 4: Installation

    • Do not use adapters, multiple • For further information on the installa- tion, please refer to the Assembly In- sockets or extension cables structions. to connect the device. • Do not use silicon sealant between the • Never use the appliance for appliance and the worktop.

  • Page 5: Electrical Connections

    min. 520 mm 660 mm • The wire connection must be per- formed by a specialised technician. 560 +2 490 +2 min. • This device has a Y-shaped connec- tion with an H05V2V2-F cable. Min. wire section: 5x2,5 mm². max. •...

  • Page 6: Cleaning And Maintenance

    ing on to it. It is much harder work to 380V - 415V 2N ~ remove encrusted and burned-on dirt. • For everyday dirt, use a soft cloth or sponge and a suitable detergent. Fol- low the manufacturer’s recommenda- tions regarding detergents to be used. The use of neutral detergents is re- commended.

  • Page 7: Product Description

    When contacting the After Sales Ser- Single cooking zone (197x220 mm) 2100 W, with 3000 W Booster function vice, please provide the following inform- Single cooking zone (197x220 mm) 2100 W, with ation: 3000 W Booster function - type of fault Single cooking zone (197x220 mm) 2100 W, with 3000 W Booster function - appliance model (Art./Code)

  • Page 8: Power Limitation

    Scroll keypad Timer symbol Power level indicator Timer control and cooking time indicator Cooking area indicator The cooking zones can be activated by The rear left digit indicates and a num- ber indicating the type of menu. The front pressing the reference digit .
  • Page 9 See the following table for the specifica- The rear left digit indicates and a num- tions: ber indicating the type of menu. The front left digit indicates a number which de- Value on swipe Notes pends on the parameters indicated in the keyboard selection.
  • Page 10 Pause function This function allows you to pause/restart any active function on the hob, by reducing the power available in the cooking zone and resetting all the functions. During the pause, all the digits indicate to inform the user that: - No energy is produced in any of the cooking areas.

  • Page 11: Cooking Table

    AUTO function This function allows you to enable AUTO mode so that operation of the hob and hood are coordin- ated. When the hob is switched on, the lights are also switched on. The hood speed is automatic- ally set using the highest power level present on the hob. Hob-Hood Coupling With the hob off, simultaneously press “...

  • Page 12: Power Management Function

    Maximum power management It is possible to decrease the maximum absorption selected in steps of menu. 0.1Kw up to the minimum declared power. Key sound volume control menu. 0 - Sound disabled 1 - Min. 3 - Max. Countdown beeper volume control 0 - Sound disabled menu.
  • Page 13 the reference points indicated on the sur- face of the hob, and must be of a suitable minimum diameter. Always use the hob that best corres- ponds to the diameter of the bottom of the pan. Cooking areas Pan base diameter Ø...

  • Page 14: Troubleshooting

    14. TROUBLESHOOTING Error code Description Possible causes of the error Solution Hob switches off after 10 Continuous key activation detected. Remove water or pan from the ceramic sec. glass surface and control panel. Water or pan placed on the control panel.

  • Page 15: Environmental Aspects

    16. ENERGY EFFICIENCY OF HOB Number of cooking areas Number of combinable cooking areas 1- Left 1- Right Cooking technology Induction Dimensions of combinable cooking area Left 395 x 220 mm Dimensions of combinable cooking area Right 395 x 220 mm Energy consumption of combinable cooking area Left 192 Wh/kg Energy consumption of combinable cooking area...
  • Page 16 Franke UK Limited West Park, MIOC Styal Road Manchester M22 5WB Tel: +44 (0)161 436 6280 Fax: +44 (0)161 436 2180 Email info.uk@franke.com www.franke.com...
