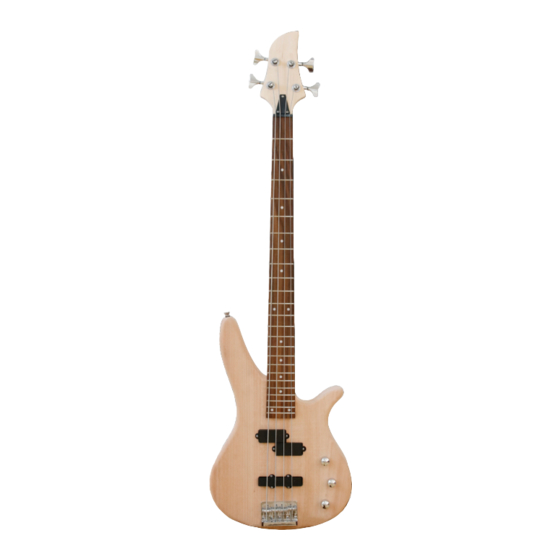

LEO JAYMZ LB-400 User Manual

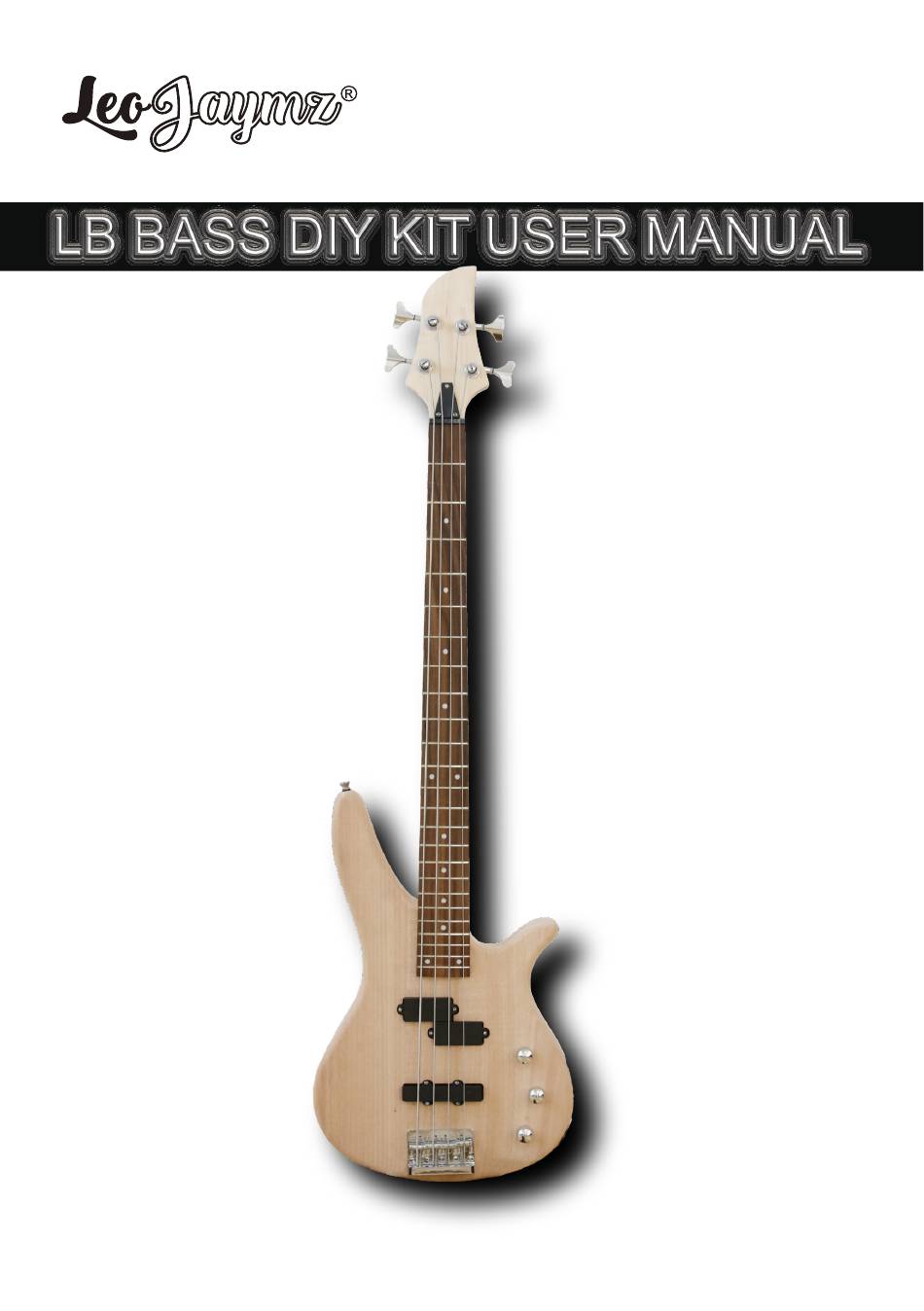

Lb bas diykit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LB-400 and is the answer not in the manual?

Questions and answers

Related Manuals for LEO JAYMZ LB-400

Summary of Contents for LEO JAYMZ LB-400

  • Page 2 © 2020 -All rights reserved! Copying is strictly prohibited! Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags,packaging,etc. are properly dispose are not in the reach of babies and young children. Chokinghazard Ensure that children do not detach any smallparts (e.g. knobs like) fromthe product.
  • Page 3 © 2020 -All rights reserved! Copying is strictly prohibited! What's in the delivery All the components deliveried LB -400Bass DIY Kit...
  • Page 4 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling Assemble instruments prepare Provide the following tools and materialsfor the assemblyof the guitar: Screwdriver Rubbermallet Ring spanner Pliers Paint and accessories Sandpaper Guitar paint spray can Sand the bass The kits came with little bit roughly surface, so it need to be sand first with 150 grit very gentely.
  • Page 5 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling 3.2 Paint the bass It isimportant to paint the bodyand neckbeforeassembly. Alwayswear a dustmaskwhenapplying spraypaint. 3.2.1 Fillup the grain. Thebody is madeof mahogan, and theneck is made of solid maple. Open grained woods need to be filled before finishing in order to achieve a flat surface.
  • Page 6 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling 3.2.3 Coloring the Neck Sand the back of the neck use the same method for sand the body. Before you painting the neck please make sure that will you paint the back or not, if not you have to tape the side of the headstock.

  • Page 7: Installation

    © 2020 -All rights reserved! Copying is strictly prohibited! Assembling 3.3 Installation 3.3.1 Mounting the machine heads Installl the tuning machines for the headstock. Let the machine heads go through the hold of headstock form rear side and mounting the nut on it with washer.
  • Page 8 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling No you can mounting the screws totheholefor fix all the machine heads. Completely tight the the nuts with the washers for the headstock on top side. 3.3.2 Install the electronics You can find an access from each pickup cavity to the back cavity.
  • Page 9 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling Press the pickup fully down into the cavity and let it stay in the middle and moveable inside of the cavity, let all the pickups contact with the body completely. Then pre-drill a small hole.
  • Page 10 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling Cut the A4 paper as much as smaller that can contain the 3 marked positions, use it as a template for drill 3 holes to a hard carton paper by screw driver or drills or sharp wooden stick. Notice: Please remember the top and rear side of the paper carton same as the body.
  • Page 11 © 2020 -All rights reserved! Copying is strictly prohibited! WIRE FOR LB BASS Neck Pickup Volumn for NP B500K Bridge Pickup Volumn for BP B500K JACK TONE A500K GROUND TO BRIDGE...
  • Page 12 3.3.6 Joint the neck Press the neck into the socket of the body very tightly, Leo Jaymz electric guitar or bass kits are all drilled and cutted by CNC machine with accurate draft, so there is no any gaps between the body and neck at all when you fully put the neck into the neck pocket.
  • Page 13 © 2020 -All rights reserved! Copying is strictly prohibited! Assembling 3.3.5 Install the bridge and strings Put the bridge on the bridge position and let it press and contact the ground cable wire, then for measure it. From the nut to the bridge saddles is 34"(864mm) as a scale length.
  • Page 14 © 2020 -All rights reserved! Copying is strictly prohibited! Setup Setup the guitar Truss rod adjustment The truss rod runs down the centre of a bass guitar neck. It can be used to straighten bowed necks by either lossening or tightening it.
  • Page 15 © 2020 -All rights reserved! Copying is strictly prohibited! Setup String action The goal here is to make sure that all string heights are equal in distance from the bottom of the string to the fret. To adjust the saddles' height by 0.059" allen wrench, and the string height as the program as below: Intonation Setting a bass guitar's intonation can be a painful process...
  • Page 16 © 2020 -All rights reserved! Copying is strictly prohibited! Other Hint Other Hints There are a few other things that you can do to optimize your tuning stability: 1. Each time you play your guitar, before you do your final tuning, play for a few minutes to allow the strings to warm up.
