Summary of Contents for Titan TTB653SDS

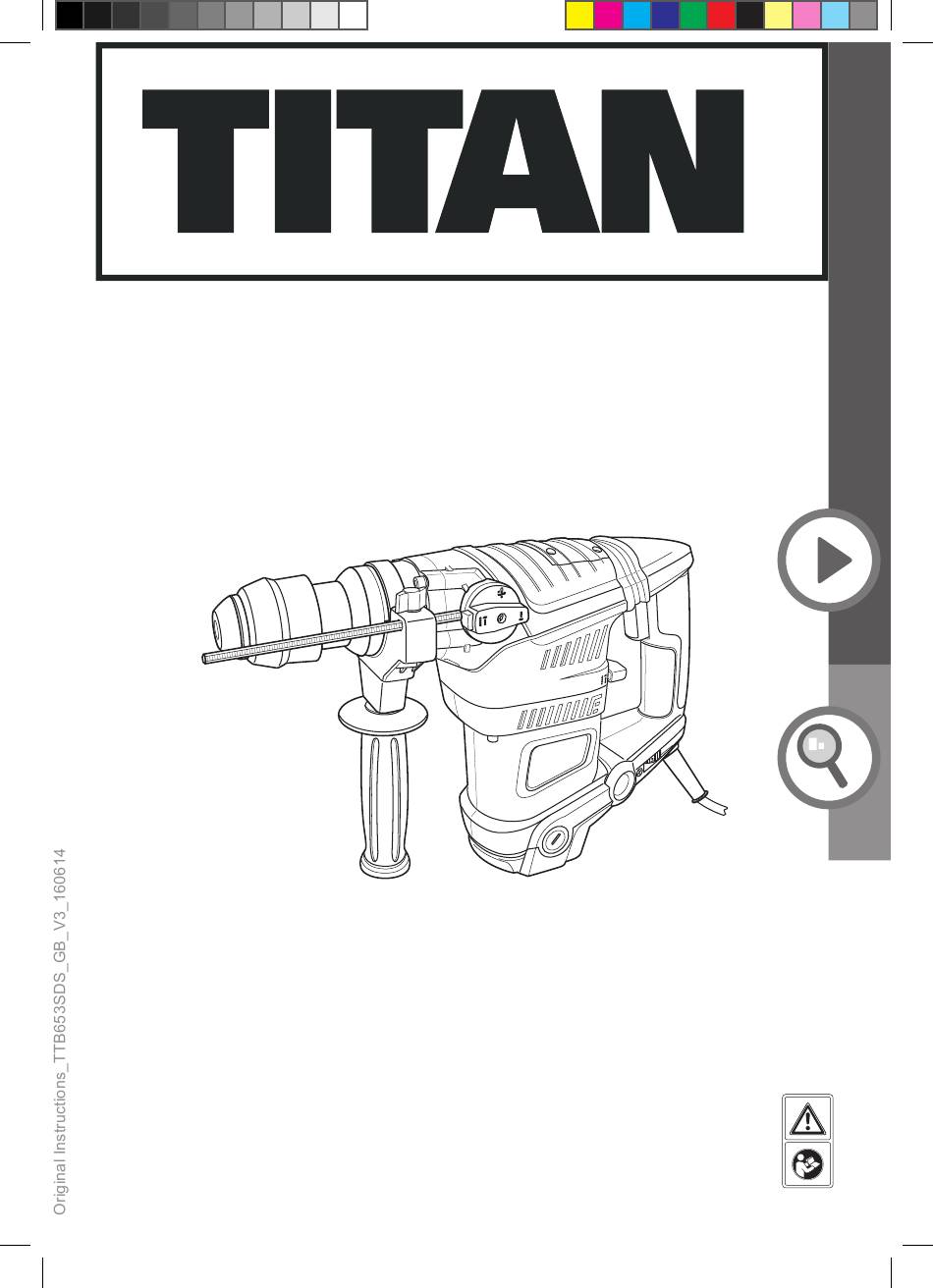

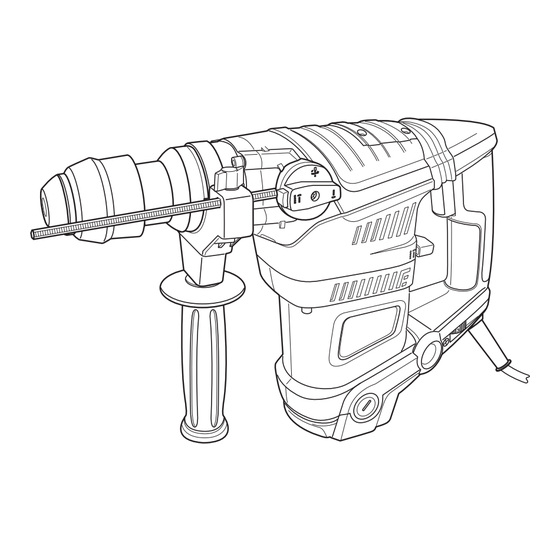

- Page 1 1500W SDS Plus Rotary Hammer TTB653SDS Barcode: 5052931538713 Ref. No.: 6846H WARNING: Read the instructions before using the product! MNL_TTB653SDS_TIT_GB_V02_150819.indd 1 8/19/15 9:47 AM...
- Page 3 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
- Page 7 TTB653SDS by TITAN Safety information >Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. >Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
-
Page 8: Safety Warnings
Safety information TTB653SDS by TITAN Safety warnings >Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. >Do not overreach. Keep proper footing and balance at all times. - Page 9 TTB653SDS by TITAN Safety information >Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 10 Safety information TTB653SDS by TITAN Safety warnings • When drilling it is common that the core / drill bit jams in the material being drilled. This will result in the product trying to rotate around the drill bit and potentially come out of your grip.
- Page 11 TTB653SDS by TITAN Safety information >Only use the product as intended by its design and these instructions. >Ensure that the product is in good condition and well maintained. >Use correct attachments for the product and ensure they are in good condition.
- Page 12 Safety information TTB653SDS by TITAN Safety warnings >Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. >Danger of injury and property damage caused by flying objects. WARNING! This product produces...
- Page 13 TTB653SDS by TITAN Safety information The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
- Page 14 Safety information TTB653SDS by TITAN >Reduce the amount of cutting by using the best sizes of building products. >Use a less powerful tool e.g. a block cutter instead of angle grinder. >Using a different method of work altogether – e.g. using a nail gun to direct fasten cable trays instead of drilling holes first.
- Page 15 TTB653SDS by TITAN Safety information Wear protective gloves. Wear protective, slip- resistant footwear. Utilisation en intérieur uniquement, dans un environnement sec. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
-
Page 16: Your Product
Your product TTB653SDS by TITAN Your product MNL_TTB653SDS_TIT_GB_V02_150819.indd 14 8/19/15 9:47 AM... -
Page 17: Technical Specifications
TTB653SDS by TITAN Your product SDS PLUS drill chuck 13. Power cord with plug Dust protection cap 14. Air vents Chuck sleeve 15. Auxiliary handle Depth stop a. Hand grip Collar 16. Flat chisel Wing nut 17. Point chisel Mode selector – rotation 18. - Page 18 Your product TTB653SDS by TITAN Technical specifications Sound values (hammer drilling mode) > Sound pressure level L : 91.46 dB(A) > Sound power level L : 102.46 dB(A) > Uncertainty K : 3 dB(A) Sound values (chiselling mode) > Sound pressure level L : 94.54 dB(A)
- Page 19 TTB653SDS by TITAN Your product / Before you start WARNING! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
-
Page 20: You Will Need
Before you start TTB653SDS by TITAN Unpacking WARNING! The product and the packaging are not children’s toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation! You will need (items not supplied) - Page 21 TTB653SDS by TITAN Before you start WARNING! Always use drill bits according to the intended use! For example, never use a drill bit intended for working on wood for working on stone or vice versa! Observe the technical requirements of this product (see chapter “Technical specifications”) when purchasing and using drill bits!
- Page 24 TTB653SDS by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_TTB653SDS_TIT_GB_V02_150819.indd 22 8/19/15 9:47 AM...
-
Page 25: Intended Use
TTB653SDS by TITAN Product functions Intended use This product is intended for hammer drilling and chiselling work into concrete, brick and stone when equipped with bits with an SDS PLUS shank. A keyed drill chuck allows normal bits (non SDS type) to be used for drilling into wood or metal. -
Page 26: Mode Selector
Product functions TTB653SDS by TITAN Auxiliary handle WARNING! Never operate the product without the auxiliary handle to avoid accidents and injury! Always ensure that the auxiliary handle is attached and secured correctly before operation! The auxiliary handle provides better control of the product in case of sudden jams during... -
Page 28: Speed Dial
Product functions TTB653SDS by TITAN Speed dial Limit the maximum speed using the speed dial (12). The speed is continuously adjustable with the following levels. WARNING! Operation at the lowest speed over a longer period of time will cause a danger of overheating on the motor! Make frequent breaks for 10 minutes to let the product cool down before using it again! >... -
Page 29: General Operation
TTB653SDS by TITAN Operation General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > Double check that accessories and attachments are properly fixed. - Page 30 Operation TTB653SDS by TITAN Drilling > Always hold the product perpendicular to the point to be drilled. Holding it at an angle may cause slipping or jamming of the drill bit. > Always place the drill tip directly on the point to be drilled first and then switch the product on.
-
Page 31: After Use
TTB653SDS by TITAN Operation Chiselling > Choose a suitable SDS chisel for your application. > Use shorter chisels when a big striking power is required. > Mark the chiselling route when you plan to chisel slots. Start near the edge and then proceed towards the inside. -
Page 32: General Cleaning
Care and maintenance TTB653SDS by TITAN The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage. -
Page 33: Power Cord
TTB653SDS by TITAN Care and maintenance Lubrication NOTE: Ensure there is sufficient grease in the gearbox before using the product. Inspect the grease / gearbox every 5 hours during operation. Fill the gearbox with suitable grease (lithium based; for general purpose) in capacity of max. -
Page 34: Carbon Brushes
Care and maintenance TTB653SDS by TITAN UK plug (only for UK market) 13 AMP fuse Connect approved to Blue to BS 1362 N(Neutral) Brown L(Live) Outer sleeve Cable grip firmly clamped WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. - Page 35 TTB653SDS by TITAN Care and maintenance Only use the provided carbon brushes for replacement which are specially designed for the product. Replacing of carbon brushes To inspect or replace carbon brushes: > Switch the product off and disconnect it from the power supply.
-
Page 36: Troubleshooting
Care and maintenance / Troubleshooting TTB653SDS by TITAN Transportation > Switch the product off and disconnect it from the power supply. > Attach transportation guards, if applicable. > Pack the product and accessories into the chisel / drill bit storage box (23) / transportation case (24) before transportation. -
Page 37: Recycling And Disposal
TTB653SDS by TITAN Troubleshooting / Recycling and disposal Problem Possible cause Solution 4. Excessive vibration 4.1. Drill bit / chisel is 4.1. Replace with a new or noise dull/damaged 4.2. Bolts/nuts are loose 4.2. Tighten bolts/nuts 5. Weak hammer 5.1. Grease used up 5.1. -
Page 38: Ec Declaration Of Conformity
EN 61000-3-3:2013 Authorised Signatory and technical ile holder Date: 14/06/2016 Signature Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 2016 ROTARY HAMMER 1500W - TTB653SDS MNL_TTB653SDS_TIT_GB_V02_150819.indd 36 8/19/15 9:47 AM... - Page 40 Titan Power Tools (UK)Ltd Trade Housr,Mead Avenue,BA22 8RT...
