Summary of Contents for SkyZone M5F

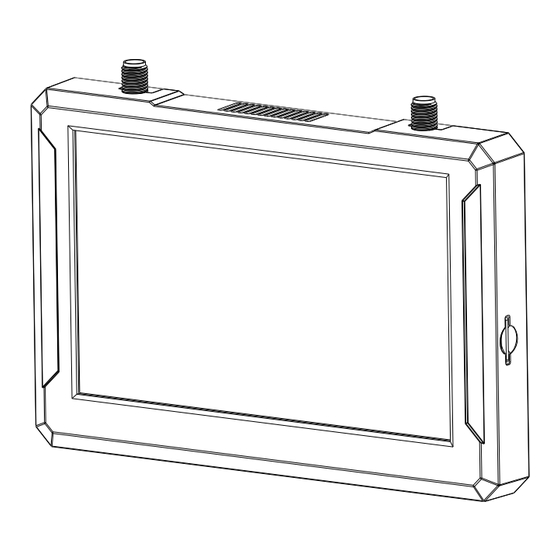

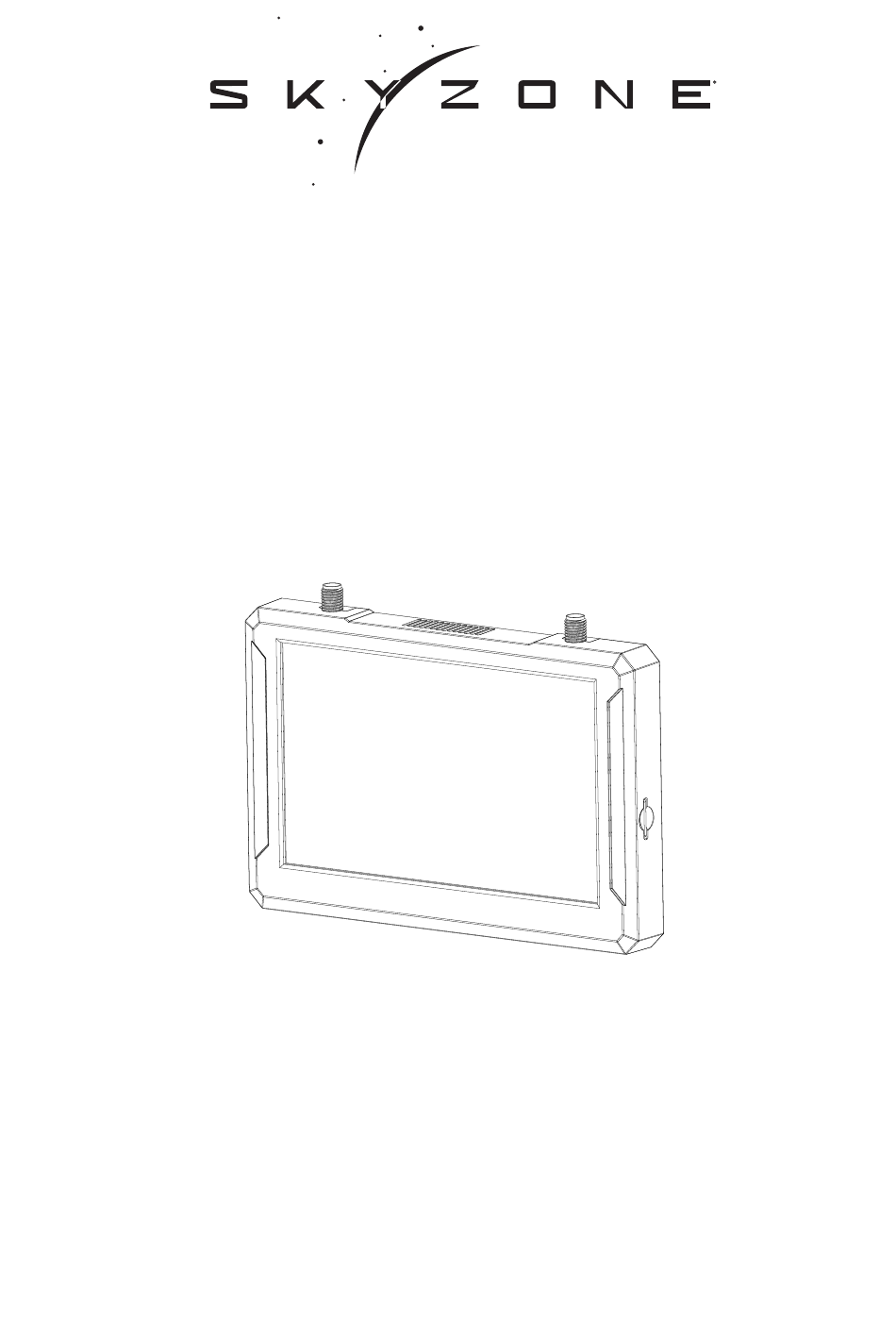

  • Page 1 FPV Monitor USER MANUAL V1.0 202311...
  • Page 2 Specifications Specification Screen 900 Lum High brightness LCD Resolution 800*480 Receiver 5.8Ghz 48 CH SteadyView Fusion Receiver Chinese/English Language DC 6.5-25.2V/USB 5V/18650 Lion Power 12V/520mA 6.24W PowerConsumption MJEPG 60FPS, SD Max 128Gb 1.5 Hour(16850,3000mAh ) Endurance BAND/CHANNEL table BAND/CH table BAND/CH CH 1 5865M...
  • Page 3 Diagram 1.CH/BAND/Search 2.Menu 3.Record 4.Power 5.SD card slot 6.AV IN/OUTPUT 7.USB C port 8. DC PT(5.5*2.1mm) VIDEO AudioR AudioL AV Jack Pin-out...
  • Page 4 The wheel with classic skyzone UI made the goggles easy to use, the monitor support 1cell 18650 battery, easy to switch battery, also support 2-6S Lipo, easy to power on the field.
  • Page 5 Quick Start Guide 1.Install the antenna and 18650 Battery. 2.short press the power button then hold power button for 3s to power on, 3.short press the power button, then hold the power button 3s to shut down.. Band /Channel / Receiver mode setting Press the wheel, then roll wheel to change channel, press the wheel again switch to Band setting mode, then roll the wheel to change the Band.
  • Page 6 MENU Press the Menu button to pop out the menu, roll the wheel to navigate, press to select. Mode · Short press the menu button to pop out menu. · RF normal: this mode is normal 48 CH receiv mode. ·...
  • Page 7 Display · In Display setting menu, customer can set the topbar OSD time, disable OSD time out, the OSD always on. ·I n Display menu, adjust the vertical position of the RSSI. ·The Luminance of the screen and be adjust in the menu (8 stage, default is 5).Normally do not set the brightness too high unless the image is dim.
