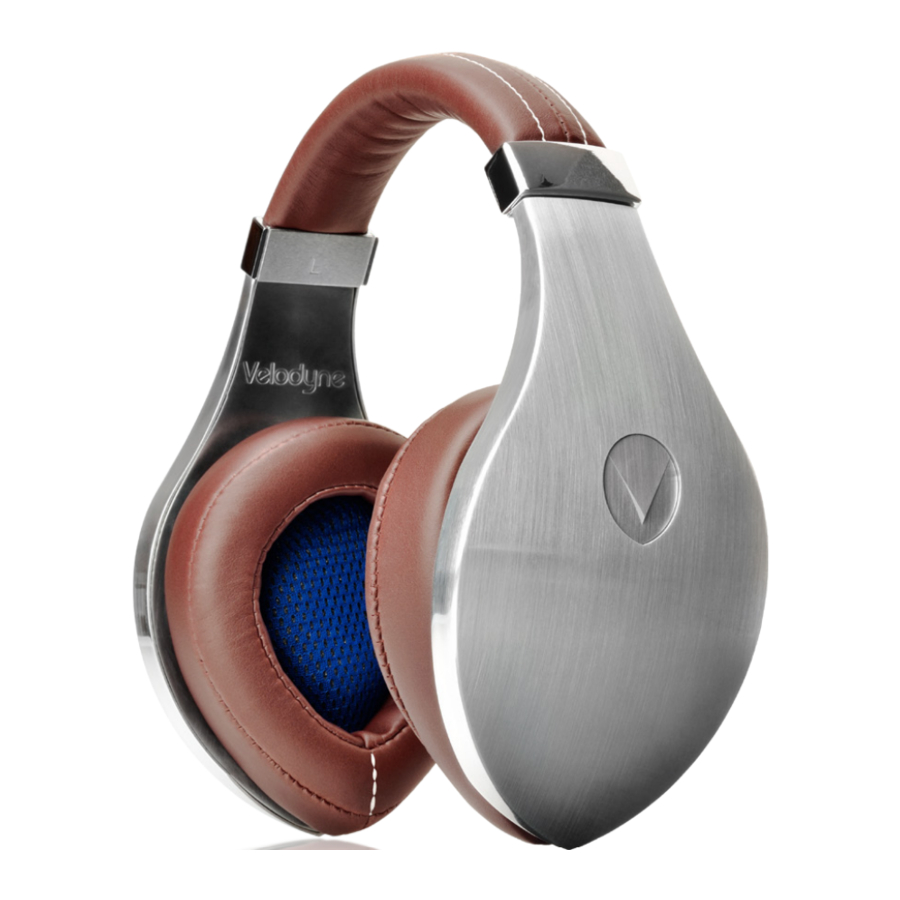

Velodyne vTrue - Studio Headphones Manual

Box Contents

• vTrue over-ear studio headphones
• 3.5 mm (1/8") Y-cable connector
• 3.5 mm (1/8") Y-cable with control module
• 3.5 mm (1/8") to 6.35 mm (1/4") stereo adapter
• Carrying pouch

Specifications

Driver size: 50 mm
Frequency response: 10 Hz - 20 kHz
Sensitivity: 96 dB/1 kHz/1 mW
Impedance: 24 Ω

*Design and specifications are subject to change without notice.

Please listen safely

For traffic safety, do not use vTrue headphones while driving or cycling. Do not wear vTrue headphones while operating machinery. Adhere to local laws regarding the use of headphones.

Listening with vTrue headphones at high volumes may affect your hearing, including causing permanent damage. Ringing in your ears or other discomfort can indicate that the volume is too high.

Hearing health is critical to enjoyment and the quality of life. Protect your hearing by listening with your vTrue headphones in a responsible manner that protects your long term hearing health. Velodyne Acoustics, Inc. is not responsible for hearing loss or damage resulting from the use of this product.

*Information obtained from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

How to connect

To connect your vTrue headphones, plug the straight 3.5 mm (1/8") Y-cable connectors into the ports of their respective ear cups.

Each connector has a red or blue marking on the body of the connector. Match the connectors with the corresponding color under the left and right ear cups. The cable with the red marking is for the right audio channel, while the cable with the blue marking is for the left audio channel.

Plug the right-angle 3.5 mm (1/8") connector into the audio output port on your audio device.

Note: Use the included 6.35 mm (1/4") adapter if your audio equipment uses a 6.35 mm (1/4") output port. Use of this adapter with the control module cable eliminates control function.

Wearing the device

Located above the inside of each ear cup are markings for right and left audio channels.

Wear the ear cup marked "Right" over your right ear and the one marked "Left" over your left ear. The control module is located on the cable connecting to the left ear cup.

Always turn down the volume on your audio equipment before wearing vTrue headphones. Once the ear cups are comfortably seated over your years, gradually increase the volume to a moderate sound level.

Adjusting the headband

The headband on the vTrue is adjustable to fit different head sizes.
Hold the headband and adjust by pulling on the right and left ear cups.
The right and left ear cups should be centered over the ears.

Cleaning

Ear cups should be cleaned regularly for sanitary reasons and to prolong the life of your ear cups.
With a lightly dampened cloth, paper towel or disinfectant wipe, thoroughly clean the ear cups.
Use a dry cloth to pat away any remaining moisture.

Do not get the speakers or electronics inside of your headphones wet. Liquids and heavy moisture can cause damage to the electronics inside your headphones. Such accidental damages are not covered under warranty.

Using the playback & phone functions

The control module on the vTrue Y-cable has playback, volume, and phone controls so you can flow between listening to music, watching video, and talking on the phone when connected to devices that support these features.

Playback, volume, and phone control functionality varies by media device.

Warnings, safety & care

•
  To reduce the risk of fire or electric shock, do not expose vTrue headphones to rain or moisture, and do not open or attempt to open the control module, or any part of vTrue headphones.
• Keep out of reach of children. Small parts may be a choking hazard. This product is not intended for use by children under the age of three.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Consult your physician or audiologist if you have problems hearing, excessive wax build-up or any discomfort after use of vTrue headphones.
• In particularly dry air conditions, mild tingling may be felt on your ears. This is a result of static electricity accumulated in the body and not a malfunction of vTrue headphones. This effect can be minimized by wearing clothes made from natural fibers.
• vTrue headphones are assembled in a facility where they could come in contact with chemicals covered by California's Proposition 65.
• If any dust or ear wax is inside the ear cup, you may experience a degradation of sound quality.
• Remove vTrue headphones if they cause any discomfort or pain.
• Do not submerge or expose vTrue headphones to water.
• Protect your vTrue headphones in the carrying pouch when not in use.

To obtain service

Information regarding service may be obtained from the dealer from whom you purchased the unit, or by contacting Velodyne customer service. Warranty service must be performed by a Velodyne factory authorized service representative within the warranty period set forth above. Shipment of defective units to Velodyne for repair or replacement will be at the customer's own risk and expense. Velodyne will assume return shipping cost for all units repaired or replaced under warranty for US shipping addresses, and for units that were directly purchased and shipped from Velodyne.

Customer service contact information:
Toll free number: 855-219-4717
Technical support: 408-465-2851
Email: service@velodyne.com
