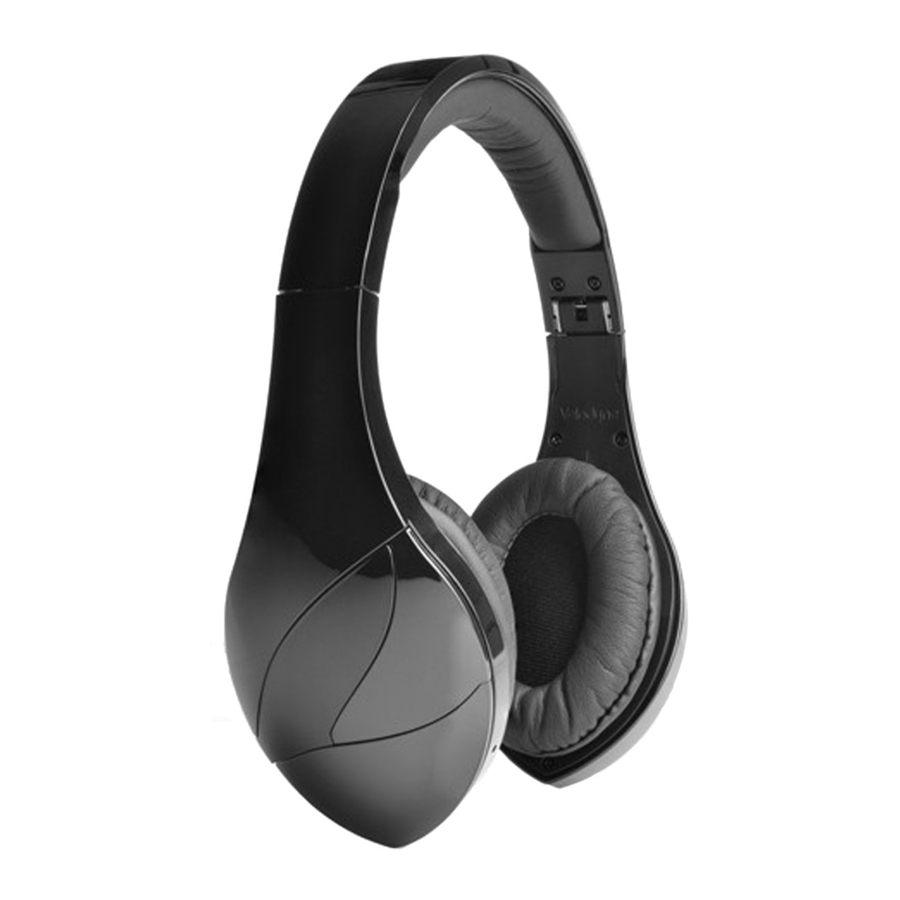

Velodyne vFree - Bluetooth Headphones Manual

Box contents

• vFree on-ear Bluetooth headphones
• USB to micro USB cable
• 3.5 mm (1/8") audio cable
• Carrying pouch

Please listen safely

For traffic safety, do not use vFree headphones while driving or cycling. Do not wear vFree headphones while operating machinery. Adhere to local laws regarding the use of headphones.

Listening with vFree headphones at high volumes may affect your hearing, including causing permanent damage. Ringing in your ears or other discomfort can indicate that the volume is too high.

Hearing health is critical to enjoyment and the quality of life. Protect your hearing by listening with your vFree headphones in a responsible manner that protects your long term hearing health. Velodyne Acoustics, Inc. is not responsible for hearing loss or damage resulting from the use of this product.

*Information obtained from http://www.nidcd.nih.gov/health/education/teachers/pages/common_sounds.aspx

Cleaning

Ear cups should be cleaned regularly for sanitary reasons and to prolong the life of your ear cups.
With a dry cloth or paper towel, thoroughly clean the ear cups.

Do not get the speakers or electronics inside of your headphones wet. Liquids and heavy moisture can cause damage to the electronics inside your headphones. Such accidental damages are not covered under warranty.

At a glance

Specifications
Driver size: 34 mm
Frequency response: 20 Hz - 20 kHz
Sensitivity: 98 dB/1 kHz/1 mW
Impedance: 32 Ω
Frequency range: 2.4GHz - 2.4835GHz
Transmission range: up to 10 m (33')
Power: lithium-ion polymer battery, 3.7 V / 430 mAh (rechargeable)
Operating temperature: 0°C - 40°C
Supports Bluetooth v2.1 + EDR, A2DP v1.2, AVRCP v1.0, HSP v1.2, HFP v1.6
Support codecs: SBC, AAC, apt-X

*Design and specifications are subject to change without notice

Playback & phone functions

Playback, volume, and phone control functionality varies by media device. When using the audio cable, control the playback, volume, & phone functions by using the media device controls.

Button functions

Button	Function
Power / pair	Long press (3 seconds) - power on Long press while off (5 seconds) - pairing Press and hold > 3 seconds - power off
Play / pause / answer / end call	Short press - play/pause Short press (while calling) - answer/end call
Volume up (+)	Increase volume (max level indicated by beep sound)
Volume down (-)	Decrease volume
Next	Press once to go to next track Press and hold to fast forward
Previous	Press once to go to previous track Press and hold to rewind

Charging the device

Charging the vFree before using for the first time is recommended in order to maximize battery life. Low battery is indicated by the LED status indicator flashing red approximately every 10 seconds.

To begin charging, connect the USB cable (micro USB end) to the port at the bottom of the left ear cup. Connect the other end of the USB cable to any charge capable USB port or a USB-style charger. Your vFree headphones will begin charging, as represented by the red LED status indicator. Once charging is complete, the LED status indicator will illuminate green.

Pairing the unit

1. Make sure vFree headphones and pairing device are within 1 meter of each other when pairing
2. Enable Bluetooth function on pairing device
3. Press and hold the power button on vFree until the LED flashes blue and red repeatedly
4. Search for Bluetooth devices on pairing device
5. Select Velodyne vFree from the "Devices Found" list on the pairing device (if you do not see Velodyne vFree, repeat from step 1)
6. After successful pairing, the LED indicator will flash blue every 5 seconds

Audio cable

When using the audio cable, the audio signal is applied directly to the headphone speakers and all electronics are bypassed. No function of the headphones will work when using the audio cable other than simply playing the audio signal.

Fold your unit

vFree headphones can fold for easier storage. To fold, remove any cables attached to the headphone and push each ear cup inward towards the inside of the band.

Reset functions

LED indications

LED Activity	Function
Fast flashing (blue) x 5	Power on
Fast flashing (red) x 5	Power off
Fast flashing (red/blue)	Pairing
Flashing (red) every 10 seconds	Low battery
Flashing (blue) x 2 every 5 seconds	Paired
Flashing (red) x 2 every 5 seconds	Standby (Bluetooth off)
Alternating (red/blue) flashing x 3	Clear setting / reset
Flashing (blue) x 2	A2DP active with SBC codec
Flashing (blue) x 3	A2DP active with AAC codec
Flashing (blue) x 4	A2DP active with apt-X codec
Fast flashing (blue)	Incoming / outgoing call
Fast flashing (blue) x 2	Active call
When charging (red)	Charging
When charging (green)	Full charge

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
8. Only use attachments/accessories specified by the manufacturer.
9. Unplug this apparatus during lightning storms or when unused for long periods of time.
10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Warnings, safety & care

•
  To reduce the risk of fire or electric shock, do not expose vFree headphones to rain or moisture, and do not open or attempt to open any part of vFree headphones.
• Keep out of reach of children. Small parts may be a choking hazard. This product is not intended for use by children under the age of three.
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Attention should be drawn to the environmental aspects of battery disposal.
• The integrated battery should not be exposed to excessive heat such as sunshine, fire, or the like.
• Consult your physician or audiologist if you have problems hearing, excessive wax build-up or any discomfort after use of vFree headphones.
• In particularly dry air conditions, mild tingling may be felt on your ears. This is a result of static electricity accumulated in the body and not a malfunction of vFree headphones. This effect can be minimized by wearing clothes made from natural fibers.
• vFree headphones are assembled in a facility where they could come in contact with chemicals covered by California's Proposition 65.
• If any dust or ear wax is inside the ear cup, you may experience a degradation of sound quality.
• Remove vFree headphones if they cause any discomfort or pain.
• Do not submerge or expose vFree headphones to water.
• Protect your vFree headphones in the carrying pouch when not in use.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Service should only be done by a VELODYNE factory authorized service representative.

To obtain service

Information regarding service may be obtained from the dealer from whom you purchased the unit, or by contacting Velodyne customer service. Warranty service must be performed by a Velodyne factory authorized service representative within the warranty period set forth above. Shipment of defective units to Velodyne for repair or replacement will be at the customer's own risk and expense. Velodyne will assume return shipping cost for all units repaired or replaced under warranty for US shipping addresses, and for units that were directly purchased and shipped from Velodyne.

Customer service contact information:
Toll free number: 855-219-4717
Technical support: 408-465-2851
Email: service@velodyne.com
