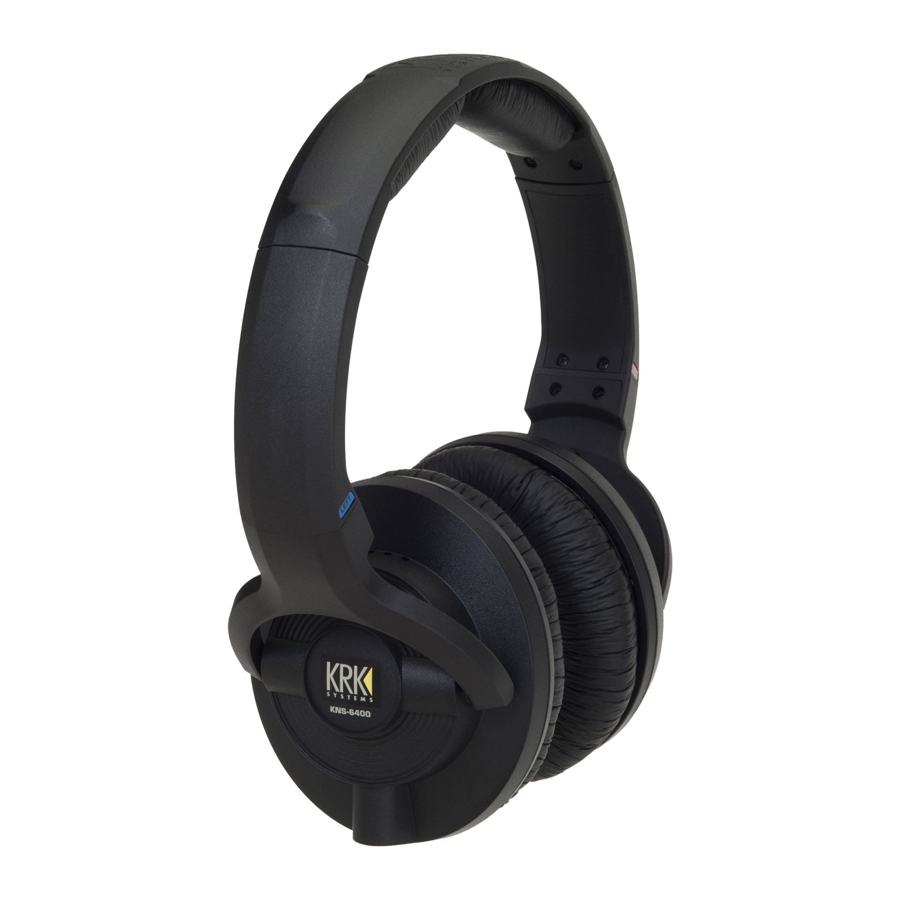

KRK Systems KNS6400, KNS8400 - PROFESSIONAL HEADPHONES KNS Series Manual

CONTENTS

Your carton should contain the following items:
User manual (this document)
KNS-6400 or KNS-8400 headphones
Connection cable, with screw-in adaptor (fitted)
Protective soft bag
Anti-Microbial/Bacterial cleaning cloth

KNS-8400 type contains an additional in-line volume control

SAFETY LISTENING GUIDANCE

LISTENING TO AUDIO AT EXCESSIVE VOLUMES CAN CAUSE PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.

Over exposure to excessive sound levels can damage your ears resulting in permanent noise-induced hearing loss (NIHL). Please use the following guidelines established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before hearing damage occurs.

RISKS/ACTIONS	SPL(dB)	RELATIVE LEVEL
		THEORETICAL LIMIT IN AIR
		SPACE SHUTTLE LAUNCH
		CANON FIRING
RISK OF WINDOWS BREAKING		JET ENGINE
		EMERGENCY SIREN
		LOUD CONCERT ROCK/ELECTRONIC
140 dB PEAK EXPOSURE LIMIT 137dB PEAK UPPER EXPOSURE ACTION 135 dB PEAK LOWER EXPOSURE ACTION		137.5 dB = PAIN THRESHOLD (AVERAGE)
		CYMBAL STRIKES / HIGH HATS
		FULL SYMPHONY ORCHESTRA
		JACK HAMMER AT 1m
		BUSY ROAD TRAFFIC
87dB EXPOSURE LIMIT 85 dB UPPER EXPOSURE ACTION 80 dB LOWER EXPOSURE ACTION		PERSONAL AUDIO SYSTEMS
(RISK OF PERMANENT HEARING DAMAGE - CONTINUOUS)		HOME THEATRE / TV
		NORMAL OFFICE
		QUIET OFFICE
		QUIET RESIDENTIAL
		RECORDING STUDIO
		LEAVES RUSTLING
		CALM BREATHING
		AUDITORY THRESHOLD
LISTENING DURATION GUIDANCE
120dB	Avoid or take reduction precautions
115dB	15 minutes
110dB	30 minutes
105dB	1 hour
100dB	2 hours
95dB	4 hours
90dB	8 hours (level dependant)

CARE AND MAINTENANCE

KNS Series headphones do not require a service schedule. Please follow the cautions below when cleaning your product.

Only use the provided anti-microbial/bacterial cloth to clean your headphones; this will help maintain good hygiene.

Never use solvents or thinners to clean the headphones, this can damage the headphones.

If the headphones become excessively dirty wipe down with a slightly damp non-abrasive cloth, then dry immediately.

While cleaning your headphones, please avoid getting liquid and/or foreign objects in the driver ports, volume control and connections.

INTRODUCTION

KRK's KNS Series of professional studio headphones are designed to forever change the way you handle your most demanding audio jobs.
The KNS headphones feature key design elements that continue to make the KRK sound a "studio standard". The series was created using stringent design philosophies applied to all of our products.
The result is a studio reference set of headphones that you can trust, delivering defined low-end, articulate midrange, and precise, natural highs.

USAGE GUIDANCE

The KNS series headphones are designed for critical listening and monitoring in the following situations:

DESIGN PHILOSOPHY

Any studio monitor is a tool used to aurally "measure" the changes in an audio path. Ask any seasoned recording professional what they think makes a great monitor and you'll get the same consistent answers: "Accuracy, transparency, flat response, and the truth."

From years of listening to feedback from some of the top engineers and producers, the KRK design team has an in-depth understanding how a properly tuned monitor is a critically important recording tool.

The KNS series headphones are designed, engineered and tuned to the same exacting standards and have been developed to be as flat as possible so that what you hear represents the true nature of the audio material without coloration or enhancement.

Using professional monitors in an acoustically correct studio is ideal for recording, mixing and mastering – but there are times when portability, sound isolation and freedom from your environment's acoustic limitations are the priority.

The KNS Series from KRK is becoming the headphone of choice for mix analysis. After all, hearing what is wrong with your mix is just as important as hearing what is right! At KRK, our passion is monitoring and accurately reproducing a natural, honest sound everywhere in the control room, the KNS series are no exception.

Whether you are mixing tracks, or recording your next song, the KNS series gives you the famous KRK sound independent of your monitors. This closed-back around-the-ear design brings you closer to your music, and the highly isolated memory foam ear cushions provide incredible isolation and long term comfort.

Having "One Voice" that consistently gives you an accurate reproduction of your music or mix will help you to achieve just what the artist intended.

Especially when the artist is you!

FEATURES

• Voiced to remain true to the character of KRK's class leading studio monitors, developed with 25 years of years of experience in studio sound.
• The latest reference quality frequency response for closed-back, circum-aural dynamic headphones.
• Newly developed headphone acoustical system bringing a new level of headphone performance for the first time.
• Utilizing the latest in acoustic memory foam technology ensures class leading performance in both reproduction and isolation.
• A new standard in headphone comfort, even over extended periods of use, designed to avoid feeling uncomfortable especially during long periods of use. The special foam conforms to the ear to help ensure an improved fit.
• Exceedingly accurate, natural and wide frequency response
• Large dynamic range with extremely consistent low-distortion detail and clarity.
• Extended low frequency definition, ensures the bass component of your music is accurately reproduced, and is not lost.
• Transparent reproduction of high-frequencies, resulting in highly accurate imaging.
• Designed to last, made from durable, impact resistant materials throughout the system.
• Designed in California, made in Taiwan.
• High-efficiency Neodynium 40mm driver
• High durability 2.5m single-sided straight cable with oxygen-free copper wires
• KNS-8400 comes with a replaceable in-line volume control with a sleek profile which is designed not to catch on clothing or instruments during performance. The volume control also uses a high quality long-life fader and comes in a sturdy enclosure.
• Adjustable, foldable driver enclosures provide comfort and portability
• Replacable cable, head, and ear cushions to ensure long product life
• Soft carrying case embossed with the KRK logo for travelling engineers, or storage when not in use.
• ¼" jack plug can be unscrewed to reveal a 1/8" plug for laptops and portable media players.
• Anti microbial/bacterial cleaning cloth
• User instructions and warranty

SPECIFICATIONS

* For improvement purposes, specifications and design are subject to change without notice.

ACCESSORIES AND PART NUMBERS

Replacement parts and accessories:
Accessories or replacement parts can be ordered through KRK Customer Service / Sales. Please see the contact information on the final page of this document for contacts in your territory.

WEARING/ADJUSTING GUIDE

Place the headphones on the head guided by the markings which identify the left and right driver enclosures. Adjust the headband as shown below so it rests gently on top of your head and the ear cushions fit comfortably around your ears. The driver enclosure is connected using an adjustable yoke which will naturally turn to ensure proper fitting, and optimum performance. There should not be excessive pressure when the headband is adjusted correctly.

CONNECTING

The KRK KNS series headphones connect with almost any professional and consumer audio device such as Professional Live, Recording and Broadcast Mixers, Audio Interfaces, Headphone Amplifiers, personal computers, personal media players, CD/DVD/Blu-Ray players.

Most professional audio equipment utilizes a ¼" socket for connection of headphones. In this instance, the headphones are ready to use as supplied with the ¼ screw-in adapter fitted.

Personal computers, media players and some consumer devices utilize an 1/8" socket for connection of headphones. In this instance, please un-screw the ¼ adapter from the tip of the cable to reveal the 1/8" connection. Please remember to store the adaptor safely so that it can be used when necessary.

Insert the headphone plug securely into the audio jack of the selected audio device.

NOTE: KRK recommends turning off all sound enhancements / special effects present in some consumer devices before use. This processing can prevent you from getting the best performance from your headphones.

The KNS headphones when driven by high-powered headphone amplifiers have the capability to reproduce audio at levels which can damage hearing over time. Please ensure good care when connecting, setting up, and using your headphones. Keep in mind that your ears are the most important tool of your trade, please treat them accordingly.

When plugging your headphones into a headphone amplifier, please make sure that the level control on the amplifier / mixer / audio interface is set to minimum and slowly raised to the required operating level.

CABLE CONNECTION GUIDE

1. Insert 1/8" connector into socket (from cable or headphone volume control)

2. When properly inserted you will feel it "click" into place.

3. Now turn the plug clockwise in the socket to secure the cable


VOLUME CONTROL CONNECTION GUIDE

CUSHION REMOVAL/FITTING GUIDE

REPLACING THE HEAD CUSHION

The head cushion is held in place by a mounting flange which snaps under small tabs located around the inside rim of the headband. If a head cushion becomes loose, simply push the mounting flange of the earcup cushion back into the earcup. Using your finger or thumb, press around the edge of the mounting flange, making sure it "snaps" in place all the way around the head cushion.

REPLACING THE EAR CUSHIONS

The ear cushions are held in place by a mounting flange which snaps under small tabs located around the inside rim of the driver enclosure. If an ear cushion becomes loose, simply push the mounting flange of the ear cushion back into the driver enclosure. Using your finger or thumb, press around the edge of the mounting flange, making sure it snaps in place all the way around the ear cushion.

STORAGE AND PROTECTION

To ensure your headphones are well protected during travel there is a specially designed soft bag included in the package.
Please ensure the headphones are fitted into the bag as shown below and that it is tied securely to prevent anything from entering the bag which could cause damage.

TROUBLESHOOTING

If any problem persists, contact Customer Service. See the phone number for your area included in this guide.

SAFETY

The possible results of incorrect use are marked by one of the two symbols "WARNING" and "CAUTION", depending on the imminence of the danger and the severity of the damage.

Ignoring these warnings may cause severe injury or death as a result of incorrect operation.

Ignoring these cautions may cause moderate injury or damage as a result of incorrect operation.

NOTE: This advice ensures you continue to get the best long term performance from your headphones.

If water or other foreign objects enter the inside of the device, fire or electric shock may result.

Do not attempt to disassemble or modify this product. Doing so could result in personal injury and / or product failure.

Do not use mobile phone adaptors to connect headphones to the jack sockets on airplane seats. This can cause overheating possibly resulting in personal injury such as burns, etc

Do not use headphones when driving or operating any kind of mechanized transport. Safety of yourself and pedestrians is put at risk as you are prevented from hearing external warning noises.

The character of external warning sounds can be affected during headphone use. Ensure you can still recognize these sounds before use.

Do not subject headphones to extreme force such as dropping, impact from another object, or impact from poorly packed luggage.

Do not pull, or put excessive strain on the headphone cable, this may cause damage and /or failure.

Keep the product dry and avoid exposure to extreme temperatures and humidity.

Ensure the headphone plug is securly being held when disconnecting the cable; never pull on the cable as this could cause damage to the connections.

NOTE: It is common for the headphone ear cushions to gradually deteriorate over time; this is commonly known as "wear and tear".
