IN231200306V01_UK
846-128V70

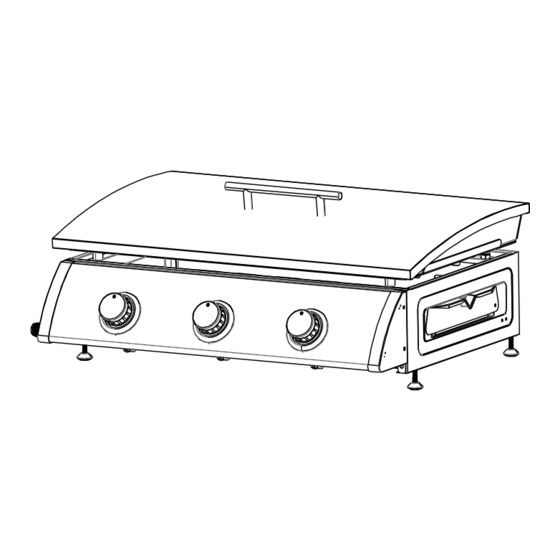

OUTDOOR GAS GRILL
（Drawings for reference only）
Type of gas: Butane, Propane, or a mixture
WARNING
FOR YOUR SAFETY
ONLY USE OUTDOORS
(OUTSIDE ANY ENCLOSURE)
Read all instructions carefully, ensuring your grill is properly assembled, installed, maintained
and serviced. Failure to follow instructions properly may result in serious injury and/or property
damage. Any questions concerning assembly or use of this product, you should contact the gas
supplier, manufacturer or service agent.
Notes to the user:
- READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
- USE OUTDOORS ONLY.
- WARNING! ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY
FROM THE APPLIANCE.
- KEEP THIS MANUAL FOR FUTURE REFERENCE.
- DO NOT MOVE THE APPLIANCE WHEN COOKING
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
OPERATING INSTRUCTIONS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outsunny 846-128V70
Summary of Contents for Outsunny 846-128V70
- Page 1 IN231200306V01_UK 846-128V70 OUTDOOR GAS GRILL （Drawings for reference only） Type of gas: Butane, Propane, or a mixture WARNING FOR YOUR SAFETY ONLY USE OUTDOORS (OUTSIDE ANY ENCLOSURE) Read all instructions carefully, ensuring your grill is properly assembled, installed, maintained and serviced. Failure to follow instructions properly may result in serious injury and/or property damage.
-
Page 2: Technical Information
TECHNICAL INFORMATION IMPORTER ADDRESS: MH STAR UK LTD Product name: Outdoor Gas Grill Product mode: KD-TB103(846-128V70BK) Unit 27, Perivale Park, Pin Number: 2575DM30340 Horsenden lane South Serial Number: Perivale, UB6 7RH MADE IN CHINA Gas and Supply Pressure Main Burner KD-TB102 KD-TB103 Country of Destination... -
Page 3: Use And Characteristics
USE AND CHARACTERISTICS The barbecue grill is safe and easy to use. Only use this appliance at the correct pressure it is designed for. Food can be barbecued on the cooking griddle, either with or without the lid being closed. When the lid is closed for five minutes, open it for one minute to release heat. -
Page 4: Lighting Your Barbecue
INSTRUCTIONS FOR USE To avoid damage and/or injury, follow these instructions carefully: 1. Assemble the barbecue by carefully following instructions. 2. Connect the gas hose to the barbecue. Connect the regulator to the hose. 3. Following the regulator instructions supplied, connect the regulator to the cylinder valve. 4. -
Page 5: Connecting The Gas Cylinder To The Appliance
CONNECTING THE GAS CYLINDER TO THE APPLIANCE This appliance is only suitable for use with low-pressure butane, propane or their mixture gas and used with the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance with hose clips. -Using 28mbar regulator with category I3+ for butane gas and a 37mbar regulator with category I3+ for propane gas. -
Page 6: Storing The Appliance
The hose should not be twisted or tangled when attached to the regulator and appliance. No part of the hose should touch any part of the appliance. Place the cylinder to the left side – it should be at the maximum distance from the appliance, without straining the hose. STORING THE APPLIANCE If storing the appliance inside, ensure the cylinder is disconnected and removed. -
Page 7: Cleaning The Burner Assembly
Clean with a soft cloth and hot soapy water, then rinse with fresh water. Do not use abrasive cleaners, degreasers or concentrated barbecue cleaners on plastic parts. COOKING GRIDDLE Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn stain, then rinse with fresh water. - Page 8 PL002 4 *1 1 *4 2 *1 3 *1 5 *4 6 *4 7 *1 8 *1...
- Page 9 Back Front...
