Cowon CM2 - True Wireless Earbuds Manual

Package Contents

• Actual package contents may differ from the above images.

Before you start

Names of Parts and Functions

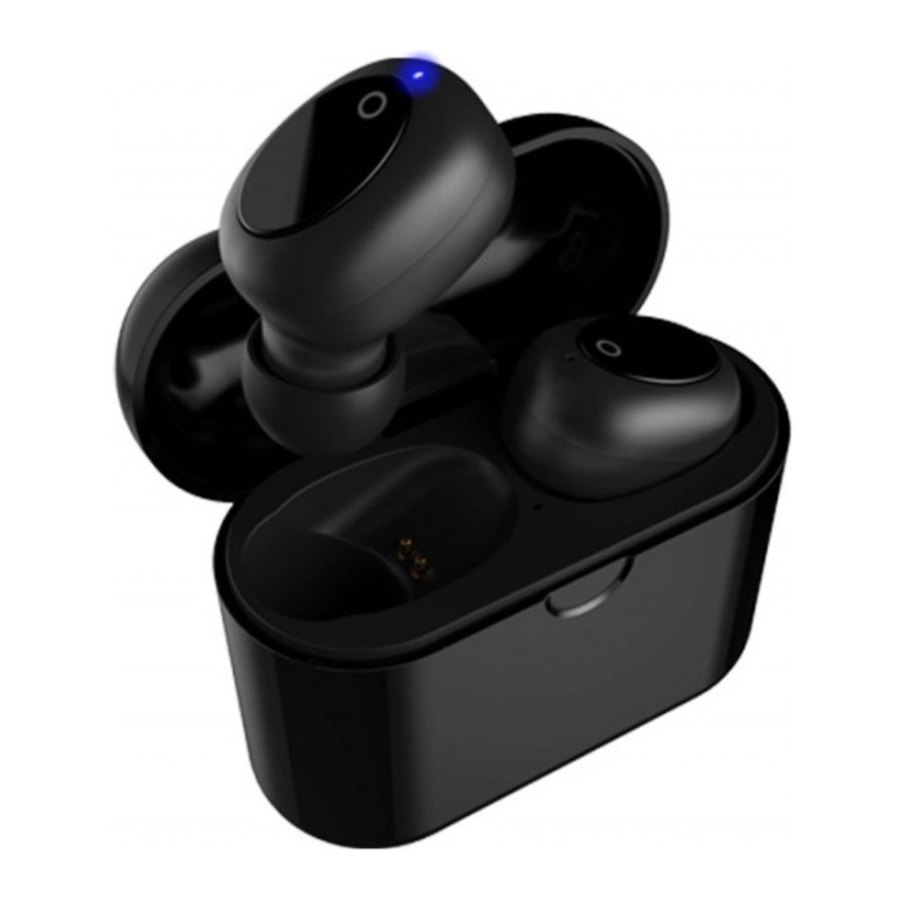

COWON CM2

Multi-Function Button
Power / Call / Pairing Play / Previous · Next Track

Charging Cradle

Charging

Charge the CM2

Charge the Charging Cradle

• Please charge the charging cradle periodically. When the cradle battery is discharged, the earphone units may turn-on instead of being charged, causing the earphone to be discharged.
• Check the battery level by pressing the [Battery Level Check Button] on the cradle.

Using the Product

Power On / Off

Auto

Manual

3 Sec Press: Power On / Off

Pairing & Connection

Dual Mode: The CM2's left and right earphones can be used together in stereo.

1. Power On
   When both earphones are removed at the same time from the charging cradle, they will automatically turn on.

2. L, R Unit Connection
   L and R units are connect to each other.

3. Pairing
   Enter pairing mode following an "Pairing Mode" voice.
4. Connection
   Turn on Bluetooth on your smartphone or Bluetooth-capable device, and select 'CM2 Bluetooth L' from the list of detected devices to pair and connect automatically.


• After the initial pairing, the CM2 and your smartphone will connect automatically when the CM2 is on and Bluetooth is enabled on your phone.

Single Mode: The CM2's left and right earphones can be used individually in mono.

1. Pair the CM2 in Dual Mode as previously shown.
2. Proceed steps 1~4.
3. You can now turn on and use only the desired unit.

1. Power Off
   Turn off both the left and right earphones.

2. 5 Sec Press → Pairing
   Press and hold the button on the right earphone for 5 seconds to enter pairing mode for only the right earphone. (Even if you have heard the "Power On" voice, please continue to press until you hear "Pairing Mode".)

3. Connection
   Pair the detected right earphone(CM2 Bluetooth R) to your smartphone.


Reset to Dual Mode

(When the L and R units are not connecting to each other)

Refer to 'Pairing & Connection' when connecting the product to a smart device for the first time. If the L and R units only connect in single mode during normal dual mode operation, reset to dual mode by following the instructions below. If it fails to reset, start again from Step 2.

1. Delete connected device & Turn off Bluetooth
   Delete the [CM2 Bluetooth] device registered on your smartphone or other Bluetooth device and turn off Bluetooth.

2. Power Off
   Remove the earphones from the cradle and turn off both L and R units.

3. Hold for 10 seconds and release
   Press and hold the left and right buttons simultaneously for 10 seconds. Then release them.

4. Press and release when the LED turns blue
   Press and release both left and right buttons when the LED turns blue. Once reset, the L unit will enter pairing mode, and its LED will flash r ed and blue.

5. Connection
   Turn on Bluetooth on your smartphone or other Bluetooth device and select [CM2 Bluetooth L] from the detected devices to complete pairing and automatically connect.


Listening to Music · Calling

Listening to Music	Play · Pause	Voice Recognition		Next Track	Previous Track
Calling	Answering a call / Ending a call	Rejecting a call

• Press and hold the multifunction button for 1 second to launch the voice recognition feature of your smartphone or tablet. (Android OS: Google Assistant / iOS: Siri / Window OS: Cortana - Except during calls)
• When using Dual Mode, the sound can be heard from both left and rightearphones during calls. Mic only operates on left earphone. So make sure to put the left earphone near your mouth during calls in a loud environment.
• In Single Mode, each earphone will output sound with both microphones enabled for use.

• In Dual Mode, L unit connects to your smartphone.
• By using the CM2 in Single Mode, you can alternate between charging the left and right earphones for extended use. (Audio books, Podcasts, etc.)
• Since Single Mode uses only one earphone, you can stay aware of environmental sounds and use the device more safely when walking or bicycling.
• Keep the product and a mobile phone within 1 meter when pairing.
• If passkey input is required, enter a password or a PIN No.'0000'.
• When the CM2 is off, press and hold the multifunction button for 5 seconds to enter pairing mode.
• When powered on, the earphones will automatically connect to the most recently connected devices.

Voice Prompts · Status LED

Status	Voice Prompts	LED
Power On	"Power On"	Blue
Power Off	"Power Off"	Red
L, R Unit Connection		Blue
Pairing Mode	"Pairing Mode"	Blue / Red
ConnectionBluetooth	"Connected"	Off
Incoming call	"Incoming call" *	Off
Disconnected		Blue

* For iPhone, user ringtone will be applied.

Specification

* Number of available CM2 charges using charging cradle (450mAh): 3 times (with fully charged charging cradle)
