BATH MIXING PROGRAM
PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN
PROGRAMA MEZCLADORES BAÑO
Art. 26697

Installation of built-in parts

Installation des parties de l'encaissement
Instalación partes por empotrar





Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 26697 and is the answer not in the manual?

Questions and answers

Related Manuals for Gessi 26697

Summary of Contents for Gessi 26697

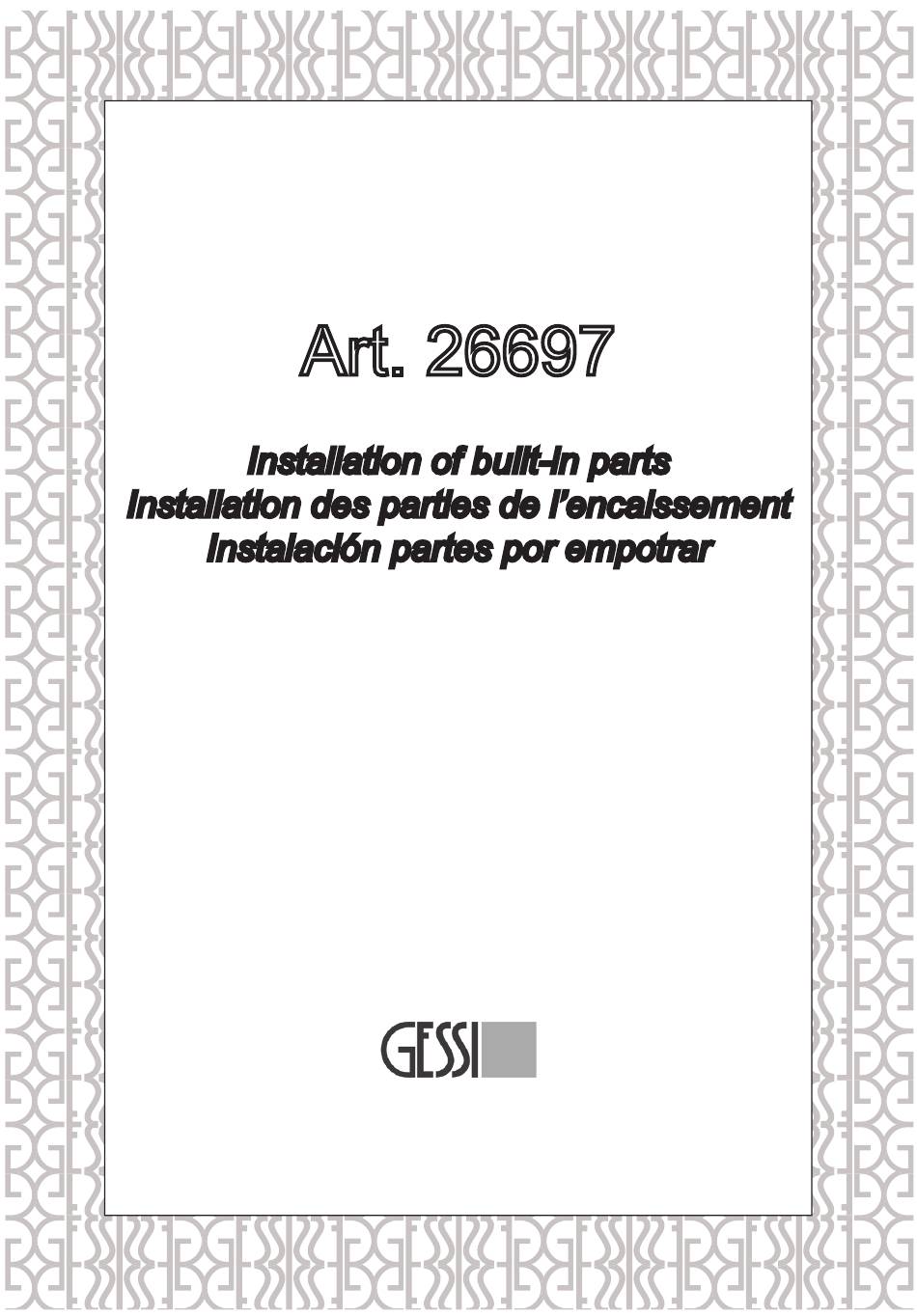

  • Page 1 BATH MIXING PROGRAM PROGRAMME DU MITIGEUR POUR LA SALLE DE BAIN PROGRAMA MEZCLADORES BAÑO Art. 26697 Installation of built-in parts Installation des parties de l’encaissement Instalación partes por empotrar    ...
  • Page 2 Following are the technical data with respect to the installation of Gessi plumbing products. ► Working pressure should not be lower than 0,5 bar (7,25 psi) and not be higher than 5 bar (72 Psi).
  • Page 3 ►La température maximum de service pour les produits Gessi est 70°C (158 °F). 2 - ATTENTION!! NOUS VOUS PRIONS DE TENIR COMPTE QUE le produit ne doit jamais être utilisé...
  • Page 4 ►La temperatura máxima de ejercicio para los productos Gessi es 70°C (158 °F). 2 - ¡CUIDADO!! LES ROGAMOS QUE TENGAN EN CUENTA QUE nunca el producto no tiene que ser utilizado como en lugar de herramienta, martillos o para finalidades diferentes de aquellas para las cuales ha sido diseñado.
  • Page 5 PRE-INSTALLATION INFORMATIONS - PRÉALABLES - PRELIMINARES Before installation and setting to work Attention! The feeding pipes have to be rinsed thoroughly before the installation of the product, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the product through the rinsed pipes or the general water plant and could damage the washers/ring washers.

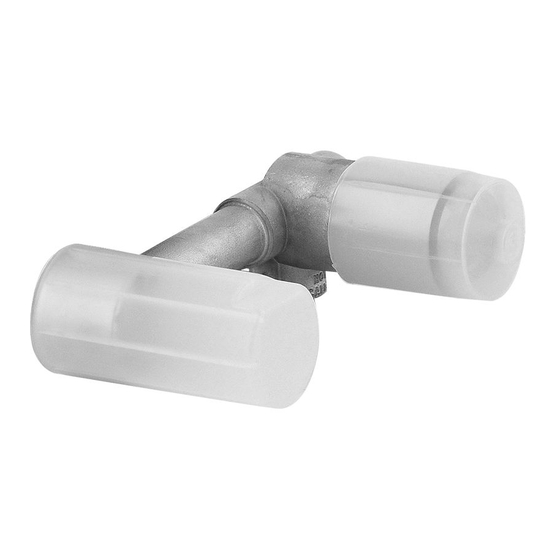

  • Page 6 PRE-INSTALLATION INFORMATIONS - PRÉALABLES - PRELIMINARES Fig. 1 Package content: Contenu de l’emballage: Contenido del embalaje: 1 - Built-in body 1 - Corps encastré 1 - Cuerpo interior TOOLS FOR INSTALLATION - OUTILS NÉCESSAIRES POUR L’INSTALLATION - HERRAMIENTA NECESARIA PARA LA INSTALACIÓN Fig.
  • Page 7 INSTALLATION - INSTALLATION - INSTALACIÓN Fig. 3 Fig. 4 1-15/16" to 2-12/16" ÷ 70mm] 7-7/8" [199,5mm] 1/2" NPT 13/16" [20mm] 1/2" NPT 5-11/16" 2-3/16" Tiled wall [144,5mm] [55mm] Fig. 5 Fig. 6 WATER OUTLET Fig. 7 Fig. 8 Fig. 9 Fig.
  • Page 8 INSTALLATION - INSTALLATION - INSTALACIÓN BUILT-IN BODY INSTALLATION Create the seat for the body after observing carefully the overall size. The body should be fit into the wall keeping a min and max built-in size as specified on the strip that wraps the front protection. Position the body in the seat obtained in the wall.
