Franklin 30126X Manual

Figure #3 NET ASSEMBLY
Step
Assembly Instructions
1.
The net has been designed with red tabs to identify the
top corners and blue tabs to identify the bottom corners.
Follow the numbered sequence to attach the net.
2.
Using the self-stick closure strips, tie the top corners first
which are identified by the two red tabs. Refer to 1 & 2 .
3.
Using the self-stick closure strips, tie the front bottom
corners which are identified by the two blue tabs. Refer
to 3 & 4 .
4.
Stretch the net and using the self-stick closure strips, tie
the back bottom corners. Refer to 5 & 6 .
5.
Attach self-stick closure strips as follows:
4 on the top 7 , 3 on the sides 8 , 2 on the base 9 , and
4 on the base 10 as show.
Stoughton, MA 02072
For replacements parts call
1-781-341-5178 or 1-800-225-8649
OR visit www.franklinsports.com
Franklin Sports Inc.
Made in China
NO. 30126X

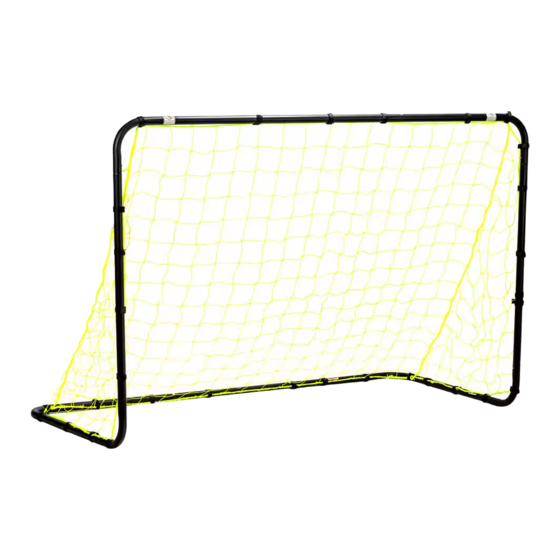

SOCCER GOAL
SIZE: 6ft Wide x 4ft High
(1.83m x 1.22m)
BEFORE ASSEMBLY:
• Work on a smooth, flat surface.
• Lay out all components so they are in easy reach.
• Read assembly instructions completely to familiarize yourself
with the components.
This goal is designed to provide many hours of enjoyment
if properly assembled and used only for the purpose intended.
CAUTION:
ADULT ASSEMBLY REQUIRED.
Adult supervision is recommended when the goal is used by children.
