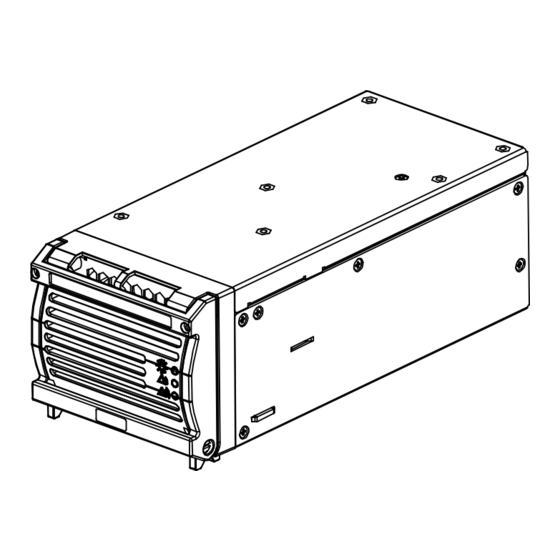

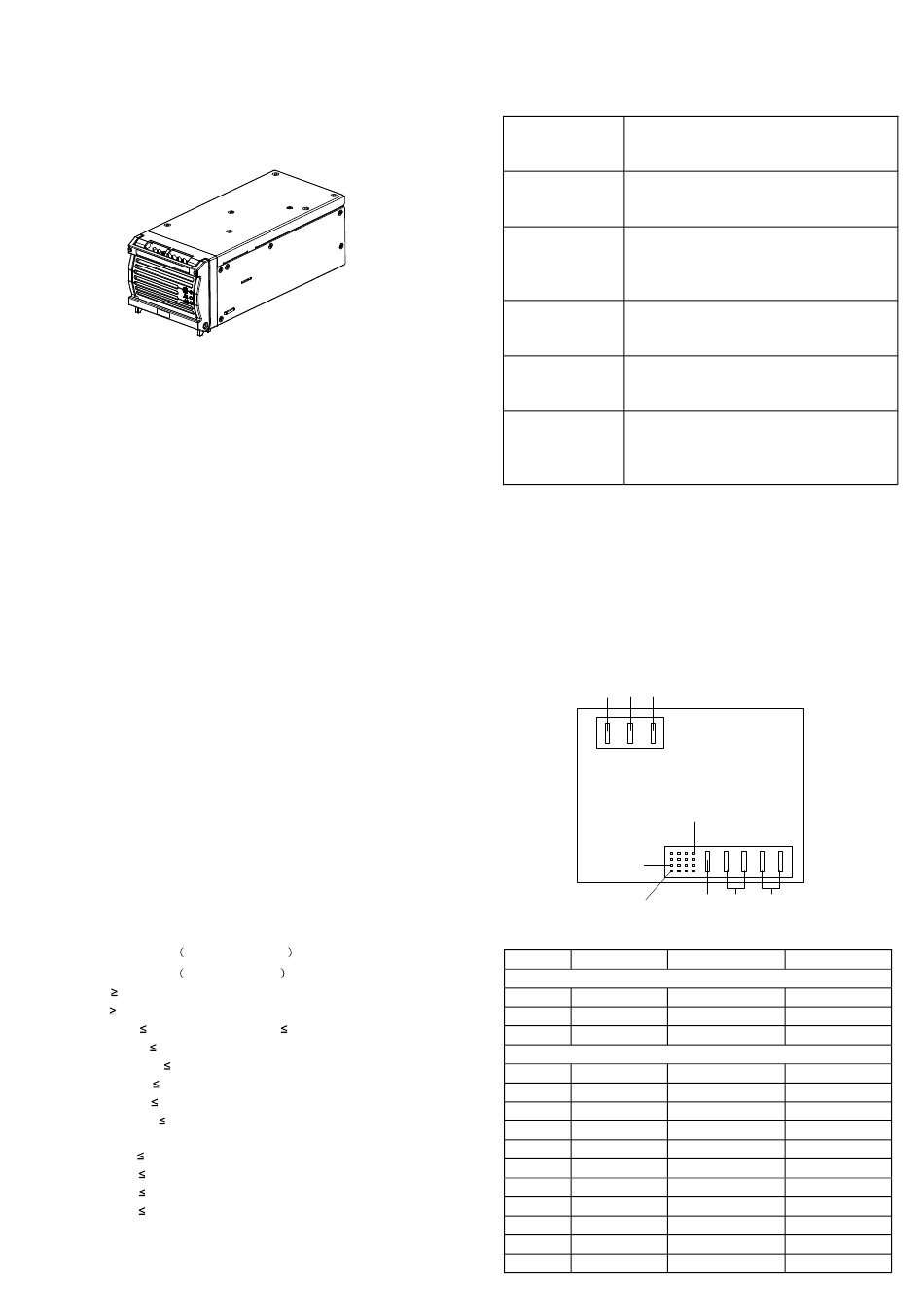

EPW30-48A-E Power Module
User Manual

1 Features

EPW50-48A-E power module (module for short) uses soft-switching
and input / output soft start-up technology. Its output can be
regulated through monitoring. Multiple modules can be paralleled to
share the load.
Dimensions (H × W × D): 88.2mm × 102.8mm (105.5mm with
enclosure) × 242.3mm (excluding socket dimension)
Weight: < 2.8kg
Mechanical stress: ETS300019-2
Safety: meet UL 60950-1,C22.2 NO. 60950-1, EN 60950-1

2 Environment

Operation temperature: -33 to 65°C;
Storage temperature: -40 to 70°C
Humidity: 5 ~ 95% (non-condensing)
Air pressure: 86 ~ 106 kPa
Altitude: < 4000m; Cooling: fan cooling
Vibration: random vibration in 2 ~ 500Hz in three orthogonal axes, 30
minutes in each direction

3 Electrical Specification

Input
Rated input: 200 ~ 240Vac / 115 ~ 130Vac
Input current: Max. 18.5A for single module
Rated frequency: 50 / 60Hz
Power factor: no less than 99% (rated operation condition)
Output
Rated output: 53.5Vdc (output range: 43.2 ~ 57.6Vdc)
Output power: 2900W 176Vdc ~ 300Vdc
1200W 90Vdc ~ 175Vdc
Efficiency: 92% (220Vac input and 53.5V/2900W output)
86% (110Vac input and 53.5V/1200W output)
Line regulation: ± 1%; Load regulation:
Mains regulation: ± 0.1%
Psophemetic noise: 2mV
Broadband noise: 100mV (3.4kHz ~ 150kHz)
30mV (150kHz ~ 30MHz)
Output ripple (p-p): 200mV (0 ~ 20MHz bandwidth with load no less
than 1A)
Discrete noise: 5mV (3.4kHz ~ 150kHz)
3mV (150kHz ~ 200kHz)
2mV (200kHz ~ 500kHz)
1mV (500kHz ~ 30MHz)
± 1%

4 Protection

Refer to Table 1 for the protection functions.
Table 1 Protection functions
The module will send alarm and shutdown
Input overvoltage
when the input is above 305Vac; and recover
protection
when the input drops down 300Vac
Input The module will send alarm and shutdown
undervoltage when the input is below 85Vac; and recover
protection when the input increases above 90Vac
The protection point is 58.5 ~ 60.5Vdc. The
Output
module will shutdown to lock upon the
overvoltage
overvoltage status. Restart the module after
protection
the protection is removed
The module has current limit
Current limit
protection:2900W (176 ~ 220Vac input);
protection
1200W (90 ~ 175Vac input)
The module has short circuit protection. The
Short circuit
module output 61A upon shortcircuit. The
protection
module will recover when the fault is removed
The module will send alarm and shutdown
Overtemperature when the testing temperature is above 116°C;
protection and recovery when the temperature is under
110°C
The module will send alarm through alarm indicators upon input
over- and under- voltage, output over-voltage, and module fault.

5 Input And Output Connectors

EPW50-27A-E power module connects to user system through its
interfaces: AC input socket (FCI, 51939-021); DC output socket (FCI,
51939-022), which also serves as the signal interface. Their pin
locations are shown in Figure 1 and pin definitions are listed in
Table 2.
N GND L
PIN5
PIN1
Figure 1 Pin location
Table 2 Pin definition
Pin Definition
AC input (FCI 51939-021)
See Fig.1 L
See Fig.1 GND
See Fig.1 N
DC output (FCI 51939-022)
Pin1 Address bit 0
Pin 2 Address bit 1
Pin 3 Load share +
Pin 4 NC
Pin 5 Current limit
Pin 6 Current limit
Pin 7 Address bit 2
Pin 8 Address bit 3
Pin 9 Load share -
Pin 10 +5V
Pin 11 +5VGND
PIN16
Pre-Charge DC+ DC-
Function Contact sequence
Live line 2
Protect earth 1
Neutral line 2
Address 3
Address 3
Share bus 3
Not connected 4(reserved)
Current limit 3
Current limit 3
Address 3
Address 3
Share bus 3
RS485 power+ 3
RS485 power- 3
