Mediclinics M23A Manual

SENSOR OPERATED
M23A
White finish

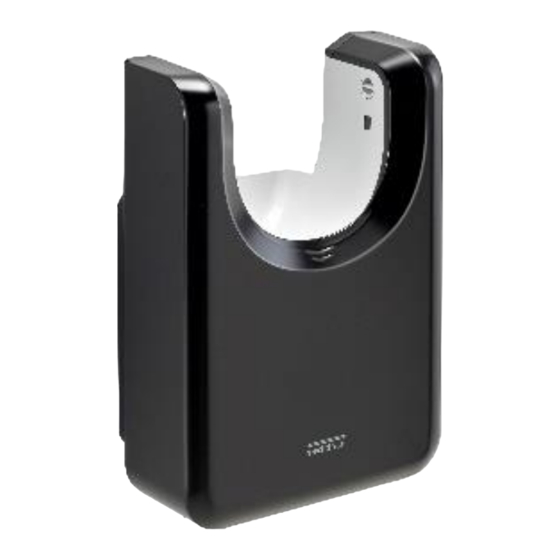

General description

•
The U-Flow is a fast, energy efficient, environmentally friendly,
hygienic & stylish hand dryer, suitable for high traffic facilities.
•
"Hands-thru" model, it has one pair of IR sensors on both upper
sides for instant hand detection.
•
Maximum air speed 350 km/h.
•
Dries hands in only 8 / 10 seconds.
•
Adjustable motor power, allowing electricity consumption to be
regulated between 420 and 1,100W.
•
HEPA filter media that filters the solid particles in suspension
(pollen, dust mites, tobacco smoke, etc.) significantly improving
air quality, and with an anti-theft system as standard.
•
It is delivered with an ionizer ("Ion Hygienic" technology) as
standard that purifies the air through negatively charged
particles (anions), eliminating many of the particles and germs
carried by the air, making it healthier and pure. These ions
inhibit the reproduction of micro-organisms in the product
throughout its lifetime.
•
Plug-in system as standard that facilitates a safer, more
efficient and faster connection to the machine
•
With Biocote® antimicrobial and antibacterial protection
technology based on silver ions.
•
30 seconds safety timer.
•
Lowest noise level in its category. (72.5-76.5 dBA).
•
Easy maintenance, it can be connected directly to the main
waste pipe of the bathroom to eliminate waste water from hand
drying. Connection pipe as standard.
•
Removable water tank with optional anti-theft system.

Components and materials

•
COVER: made of high impact ABS.
•
BASE PLATE: made of plastic PA6V0.
•
MOTOR: high-speed class F universal brush motor, adjustable
from 19,000 to 30,000 rpm, allowing electricity consumption
and sound pressure to be regulated.
•
HEATING ELEMENT: of 400W, made of a wavy wire and
mounted on a mica frame.
•
HEPA FILTER MEDIA: cartridge that holds an HEPA filter
media that filters suspended solid particles (pollen, dust mites,
cigarette smoke, etc.), notably improving the air quality.
Furthermore, this cartridge also contains an activated carbon
filtering media that neutralises odours and absorbs smokes and
gases, helping avoid bad odours. It comes as standard.
•
IONIZER: cleans and purifies the air through negative ions
(anions) which remove microscopic particles from the air
making it healthier. It comes as standard.
•
Connection To The Waste Pipe: Included from the
factory with the hand dryer. It can be connected directly to the
waste pipe. Thus, there is no need to empty the water tank
because the water always goes directly to the waste pipe.
M23AB
Black finish

Technical Specifications

Dimensions
HAND DRYERS
U-FLOW
M23ABT
All black finish
Voltage
Frequency
Electrical Insulation
Total power
Consumption
Motor power
Rpm
Heating element power
Dimensions
Weight
Cover thickness
Drying time
Air speed
Air temperature (10 cm
distance/21ºC)
Protection rating
Dimensions: + 4%
M23ACS
Satin finish
220- 240 V
50/60 Hz
Class I
420 – 1,500 W
3,2 – 6,4 A
420 – 1,100 W
19,000 – 30,000
)
400 W (with "ON/OFF"switch
557x344x202 mm
7,1 Kg
3 mm
8-10 sec.
252 – 350 Km/h
40 ºC
IP23
