Modus M-247 Manual

Dog training collar
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOG TRAINING COLLAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-247 and is the answer not in the manual?

Questions and answers

Related Manuals for Modus M-247

Summary of Contents for Modus M-247

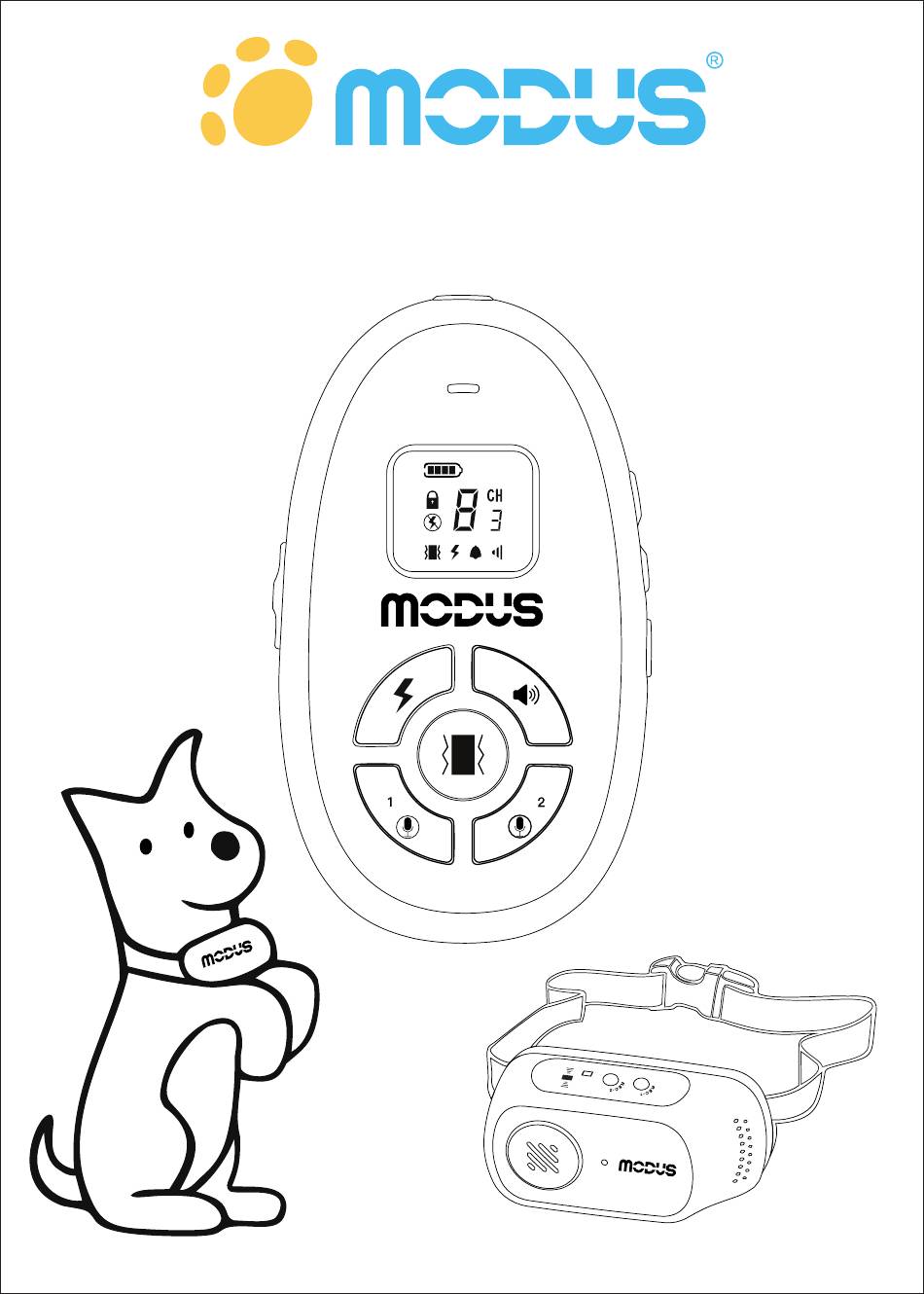

  • Page 1 DOG TRAINING COLLAR...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CONTENTS WORK PRINCIPLE SCENARIOS TECHNICAL SPECIFICATIONS WHAT'S IN THE BOX COMPONENTS FIT THE COLLAR TURN ON AND OFF HOW TO CHARGE THE DEVICE PAIRING OF THE RECEIVER AND REMOTE FUNCTION INTRODUTION HINTS AND TIPS WARNING WARRANTY FCC CAUTION CONTACT US...

  • Page 3: Work Principle

    Please read this manual carefully before using the device. WORK PRINCIPLES MODUS Dog Training Collar is specially developed and designed for dog training, which mainly has two parts: the remote and receiver. It establishes signal connection between the remote and the receiver through wireless communication technology (the effective distance is up to 300 meters),and realizes the purpose of long-distance one-click dog training through the remote sending instruction to the receiver.

  • Page 4: What's In The Box

    WHAT’S IN THE BOX Remote Control Receiver Test Light Collar Wrist Strap USB Cable Contact Points Note: If you buy two-dog system, there will be 2 receivers,2 longer contact points and 2 collars.

  • Page 5: Components

    COMPONENTS Remote Sensor Port / Antenna Indicator Light Screen Turn off Shock +/- Button /Lock Button Channel Button Shock Button Beep Button Vibration Button Play Record 1 Play Record 2 Receiver On/off Indicator Light Record 2 Record 1 Speaker Microphone Contact Points Charging Port...

  • Page 6: Fit The Collar

    INSTRUCTIONS Ⅰ. FIT THE COLLAR Note: Please make sure the collar is put on dog’s neck firmly, not too tight and not too loose. The probes must be touching the skin of the dog in order for effective electric shock. Figure A Figure B 1.
  • Page 7 Ⅱ.Turn On and Off 1. How to turn on/off the remote : Turn on: press any key to turn on the device, LCD display and backlight will turn on, the device will be into the normal working mode. Turn off: the backlight will turn off in 20 seconds without operation, and turn off display and the device in 40 seconds without operation.

  • Page 8: How To Charge The Device

    Ⅲ.How to charge the device? When purchasing the device, there is a USB cable attached in the packing box. Please connect the USB cable with the adapter, and then insert it into a charge port like power transformer, power strip, power bank or computer port to charge the device. 120 Minutes Complete charging in 2 hours.

  • Page 9: Pairing Of The Receiver And Remote

    Ⅴ.Pairing Of The Receiver And Remote The device works by radio channel communication. The remote and receiver need to be on the same channel to work properly. Before delivery, we will pair the remote with the receiver. If remote has lost contact with receiver because of signal interruption or power outage, please pair manually.

  • Page 10: Function Introdution

    OPERATING INSTRUCTION Function Introduction 1. Static Shock Mode Before using for the first time, you can use the test bulb to test whether it works properly. Different dogs have different resistance values. You can gradually use the equipment when you start to find appropriate electric shock level for your dog. For initial use, select the minimum static shock for the pet and watch his reaction.
  • Page 11 3.Recording Playback Mode 1. The "RCE-1, RCE-2" recording keys of the receiver can record a 4-second long sound instruction. 2. Press and hold the RCE key for about 2 seconds, after one “beep” sound,it will enter the recording mode, please speak the instruction clearly and loudly at the microphone within 4 seconds.After two “beep”...
  • Page 12 4.Levels Adjustment Mode The vibration and static shock modes of this product can adjust different levels. 1. Vibration Mode: It is divided into nine levels, press the “+” key and the “-” key to adjust the levels. With the increase of the level, vibration intensity will increase, level 1 is the lightest, and level 9 is the strongest.

  • Page 13: Hints And Tips

    7.Indicator Light 1. Power Indicator Light---The red light will flash quickly when the battery is down to 20%.The red light is always on when charging. The light will turn off when fully charged. 2. Operating Indicator Light---The indicator light will be on and keep flashing every 5 seconds when the receiver turns on and keeps working state.

  • Page 14: Warning

    The Collar 1. Before using it, please fully charge the remote and receiver. 2. Try vibration and sound modes to train dog first. If that doesn't work, then you can select static shock mode. 3. Select the lowest level to train dog and watch the dog's reaction. If your dog feels unwell, please stop using it immediately.

  • Page 15: Warranty

    In order to give you our better services , please read the following contents in detail: The warranty service of MODUS pet intelligent electronic products is provided by the Service Center of Bonso Technology. This product from the date of purchase to implement the “Three Guarantees”.
  • Page 16 Bonso Technology (Shenzhen) Co., Ltd. Address: 10/F, FuYong Property Comprehensive Building, No.2 Zhengfeng North Road, Baoan District, Shenzhen, Guangdong, China Brand Name: MODUS Web: Http://www.moduspets.com Origin: Shenzhen,China Email: support@moduspets.com Call Us + 1 (833) 986 3257 (MST 9:00-17:00 Monday-Friday) Scan here to contact us [24Hrs Online] https://modus.afterservice.vip...
