BATTERY PRESSING TOOL
OPERATING INSTRUCTION
MODEL:EB-1550
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-1550 and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR EB-1550

Summary of Contents for VEVOR EB-1550

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support BATTERY PRESSING TOOL OPERATING INSTRUCTION MODEL:EB-1550 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 3: Important Safety Information

    SAVE THIS MANUAL Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the month and year of purchase. Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 4: Work Area Safety

    1. Work area safety Keep work area clean and clear. Cluttered or dark areas invite accidents. This tool is not insulated; please do not use it on live conductor. Please do not use or store the tool under high temperature, or one surrounding filling with corrosive fluid.

  • Page 5: Personal Safety

    explosion. Do not use the waste battery otherwise it will cause the electric shock. Do not disassemble the battery and charger. If any problem please contact with manufacture or agent. 3. Personal safety Stay alert, watch what you are doing and use common sense when operating the tool.

  • Page 6: Specific Safety Rules

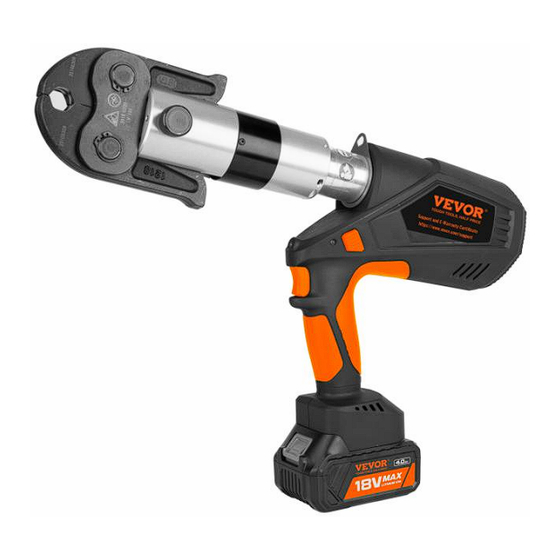

    UNDERSTAND YOUR TOOL EB-1550 is a tool for connecting stainless steel pipe, XPAP, PEX pipe with fittings. It is powered by Li-ion, actuated by brushless motor and controlled by MCU. With a high pressure hydraulic system and longer life, saving more power, it is a perfect...

  • Page 7: Specification

    1. Specification Max. pressing force: 32KN Stroke: 40mm Pressing range: Thin-wall stainless steel pipe: 12-54mm Pex pipe, XPAP, Copper pipe: 12-108mm Hydraulic oil: Shell Tellus T15# S2V HV15 Oil capacity: 115ml Ambient temperature: -10-40℃ Voltage/capacity: 18V/4.0Ah Time/crimp: 3-6s( depend on the dia of pipe) Time/charger: Approx.

  • Page 8: Description Of Components

    2. Description of components: Parts No. Description Function For pressing , interchangeable jaw Serial NO. For record Security icon For warning For locking/removing the jaw Sheath For preventing clamping hand For preventing head from dropping or Limited bolt popping White LED For lighting For indicating the operating condition and Red LED...

  • Page 9: Function Description

    Battery lock For locking/unlocking the battery. For supplying power, rechargeable Li-ion battery (18V) Strap buckle For mounting strap Function description Micro computer control system-automatically detects the pressure when in pressing with double safety protect. OLED display - Dot matrix OLED display, which shows pressing times, battery power, working pressure (if equipped with pressure sensor), maintenance reminding and fault code.
  • Page 10 The overall structure of the tool is compact.It is ergonomically designed with a non-slip rubber grip and an optimized center of gravity for easier operation. A temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue working until the temperature reduce to the normal.
  • Page 11 Motor surface High temperature is ¤¤¤¤ ◎◎◎◎ temperature too high, waiting for cooling to warning （2Hz） （2Hz） restart the tool Auto-protection ¤¤¤¤ Dangerous when press the ◎◎◎◎◎ operation start button on ¤ and off quickly, （2Hz） protection （2Hz） reload battery Check if the hall wire and motor ¤...
  • Page 12 The detail of the charging information, please refer the manual (MANUAL FOR CHARGER) 1) The battery can be used for hundreds of times, when the life span reduced obviously, change to a new battery please. 2) Please charging the battery in time to avoid it to be used up absolutely; otherwise it will become useless forever.
  • Page 13 electric shock. 5) Under no circumstances should batteries be burned, or they may explode. 6) When charging the battery, do not cover the charger with any object, so that the charger cannot dissipate heat, which is likely to cause fire. 7) Disconnect the charger when not in use.

  • Page 14: Pressing Operation

    Tool LED illuminator: After clicking the start button, the LED illuminator lights on, After the tool is released, the button will automatically turn off after a delay of 20 seconds. Press the start button before installing the battery. When the battery is installed, release the start button and the LED light is off.
  • Page 15 Warning: 1) Do not hammer or knock any part of the tool. Before operation, check the tool for any damage, aging, missing parts, misalignment or component jamming and any other unfavorable factors that endanger safety and normal operation. It works effectively without any jams. If you find any problems, stop using them immediately until the problem is solved.
  • Page 16 popping out. Do not remove it yourself! 5.) Remove any grease, dust, especially on the handle and control components, to prevent the tool from slipping during use. 6.) The built-in safety valve undergoes strict pressure detection before leaving the factory, and the user must not adjust it without authorization! If you are experiencing under-pressure, please take the tool to a qualified service technician and use it for pressure testing.
  • Page 17 2). Pressing tool, pressing jaw, adapter or ring jaw are only for the corresponding piping system and fittings. Use of other ways or modified standard accessories for other applications may damage tools and accessories, and may even result in personal injury. Important information: 1).
  • Page 18 2).It should be confirmed that the jaw has been completely closed after the crimping is completed. 3). When crimping, make sure that the jaw along with the crimping tool is properly positioned on the flange of the fitting. 4). If the jaw cannot be completely closed when crimped, it should be sent to the tool dealer or manufacturer for repair.
  • Page 19 3.3.Please refer the illustration For Economic type below: 3.4.Please refer the illustration For ring type below: Note: Start pressing when ring jaws fully connect to adaptor and cover the gridding. The other operations are the same.

  • Page 20: Maintenance And Servicing

    3.5. Jaw cleaning and maintenance 1).Clean the residue accumulated in the crimping jaws in time. Cleaning the residue can be done with a scouring pad or a steel wool, but it can't be cleaned with something harder (such as sandpaper, filet, etc.), which will accelerate the wear on the edge of the cavity.
  • Page 21 screws, misalignment or binding of moving parts, cracked or broken parts, or any other condition that may affect its safe operation. 2) After using, clean external surfaces of the tool with clean, moist, smear the rust preventing oil on the metal surface of the tool and the dies to avoid rusty. Store the tool in the dry environment.
  • Page 22 TROUBLESHOOTING FAULT ANALYSIS SOLUTION Dirt, contaminants, etc in ram area of Clean hydraulic system Charging the battery Tool is tool. inoperative The battery run out Return tool to manufacture Tool components or distributor worn or damaged. Fill oil No power during No oil Return tool to manufacture operation or not...
