Training manual ALTEAS & GENUS ONE

7 ELECTRIC AND ELECTRONIC SYSTEM

7.1

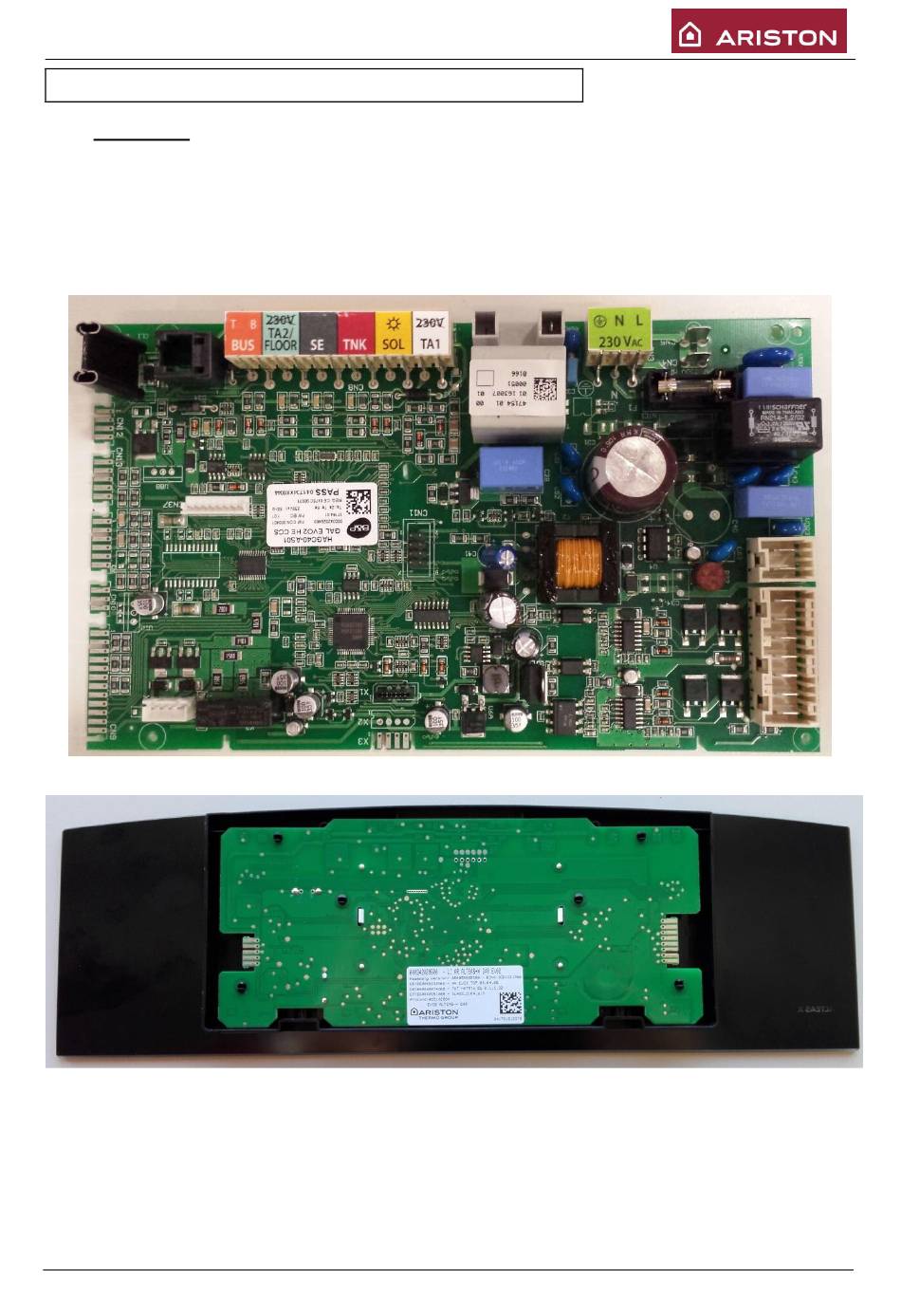

MAIN CARD

The boiler uses a GAL2EVO COND electronic card for complete checking of the boiler and users interfaces
display LCD;
The GAL2EVO COND electronic card is protected by one 2A, 250 VAC fuses and a VDR protects the card
against supply voltage peaks up to 275VAC. The supply voltage tolerance is 230 Vac +10% -15% and
does not have to comply with the phase and with neutral.
Page. 58 of 88 Version 2V2.
