Overheating protection

If the unit becomes excessively hot during charging, the output power and output
current is automatically reduced to avoid damaging the unit.
3.5 Standby and reverse polarity protection
Mode Indicator
Key
illumination
Standby
Reverse
polarity

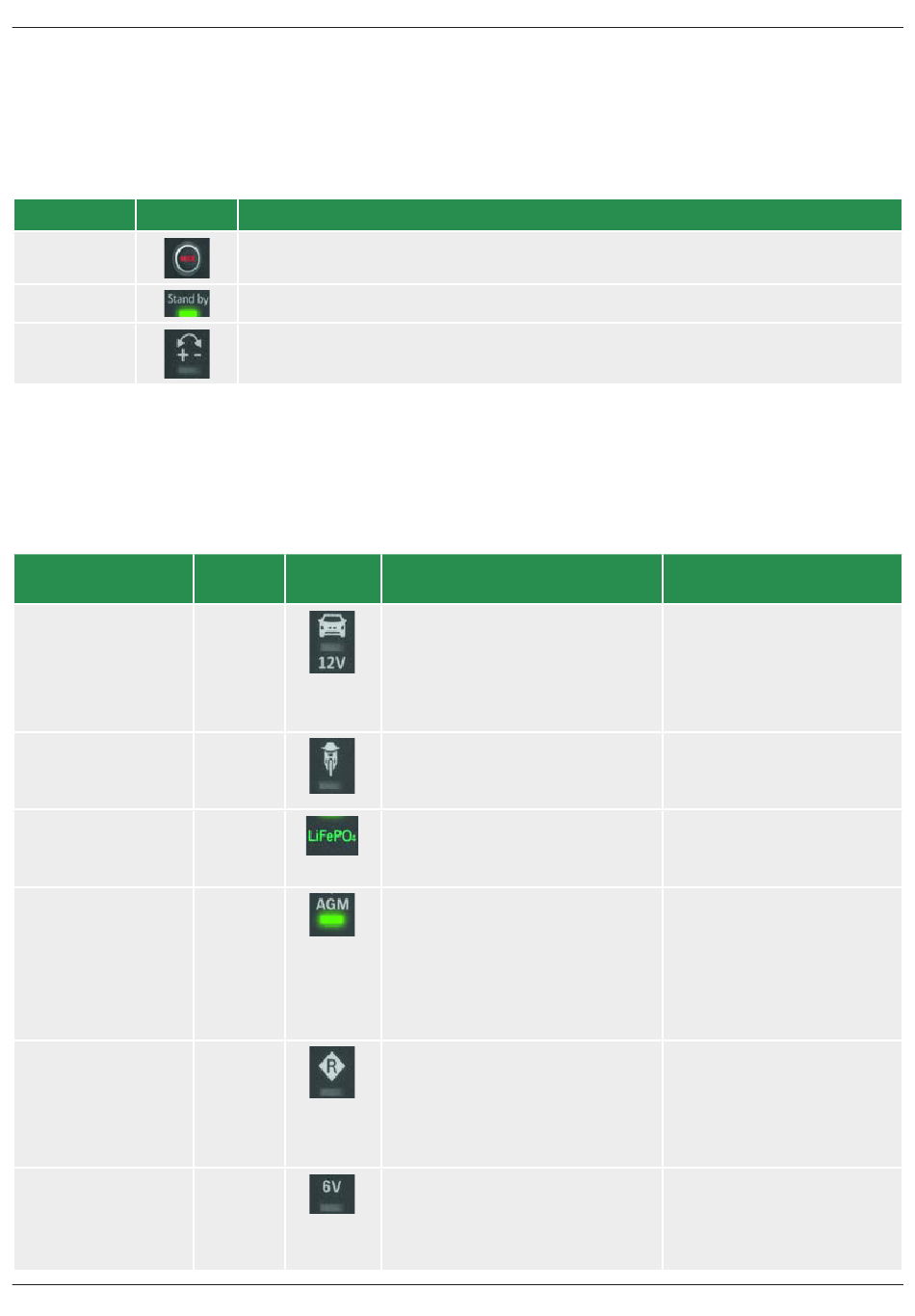

4 Mode selection

1. Select the desired mode by pressing mode button.
2. The LED for the desired mode will light up.
3. If there is no other operation, it will automatically enter charging mode in 5 seconds
Mode
Mode 1
Car Mode
Mode 2
Motorcycle Mode
Mode 3
LiFePO4 Mode
Mode 4
Cold/AGM Mode
Mode 5
Regeneration
mode
1
Mode 6
6V Mode
16
Function
Lights up when turned on and fully charged. Flashes while charging
Lights up when powered on and in case of faults
Lights up when terminal blocks have been swapped
Output Indicator Operation
14.4 V
5 A
14.2 V
1 A
14.2 V
5 A
14.7 V
5 A
16.5 V
1.5 A
7.2 V
1 A
Press the button once to
select Mode 1
◾ LED 12 lights up
Press the button 2 times to
select Mode 2
◾ LED 11 lights up
Press the button 3 times to
select Mode 3
◾ LED 10 lights up
Press the button 4 times to
select mode 4
◾ LED 9 lights up
Press the button 5 times to
select Mode 5
◾ LED 8 and LED 12 will
light up
Press the button once to
select Mode 6
◾ LED 7 lights up
Battery types supported
12 V WET, EFB and the
majority of GEL
batteries. Capacity of
> 14 Ah in normal state
12 V LiFePO4 Batteries.
Capacity of ≤ 14 Ah in
normal condition
12 V LiFePO4 Batteries.
Capacity of > 14 Ah in
normal condition
Cold state (0 - 4 °C) of
12 V WET, EFB and most
GEL batteries. And for
many 12 V AGM batteries
in normal condition.
Capacity of > 14 Ah
Suitable for the re-
generation of 12 V
batteries after short-term
extreme discharge.
Capacity of > 14 Ah
6 V WET, AGM, EFB and
most GEL batteries.
Capacity of ≤ 14 Ah in
normal condition
