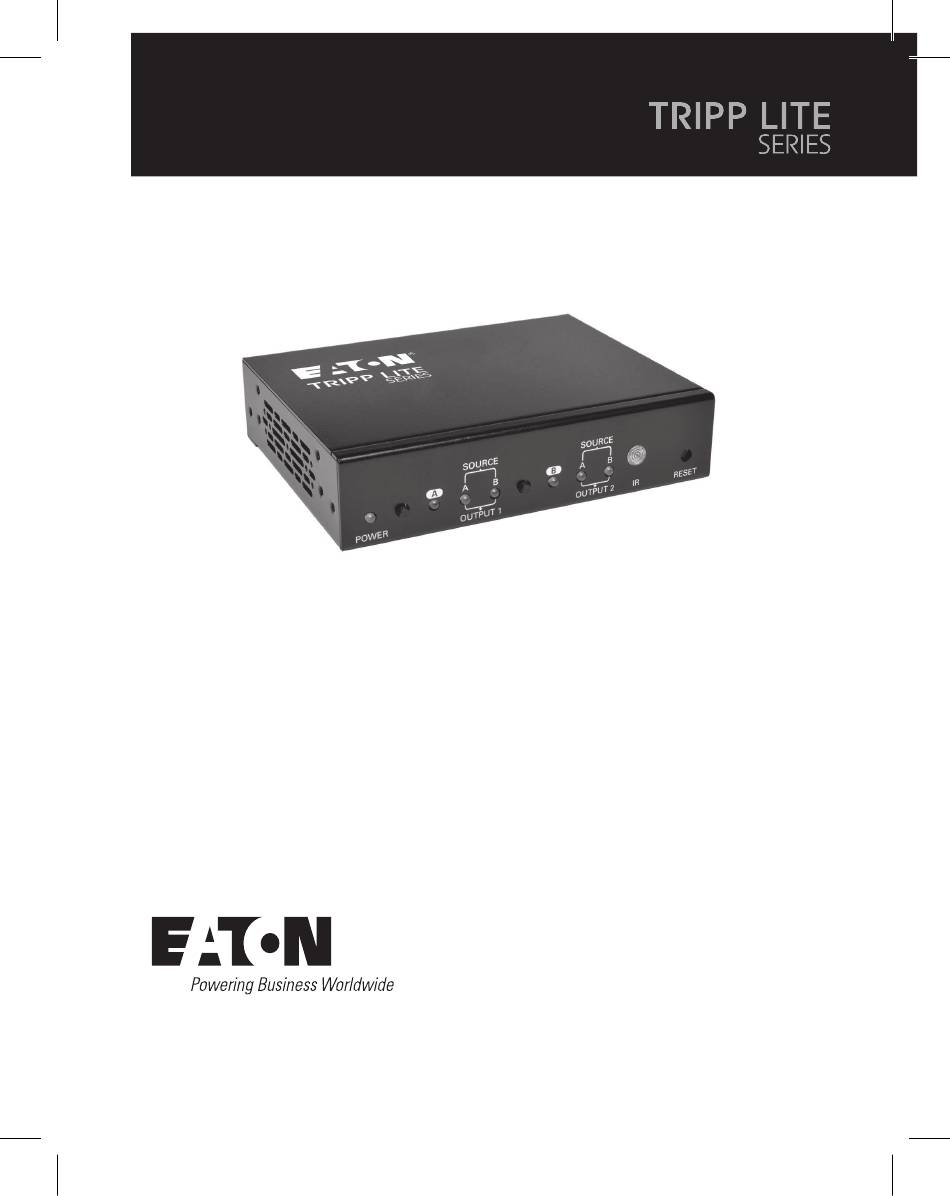

- Page 1 Owner’s Manual HDMI Matrix Switch Models: B119-2X2 B119-4X4 Purchased product may differ from image. Package Contents Product Features Mounting Standard Installation RS-232 Serial Control (For B119-2X2) RS-232 Serial Control (For B119-4X4) Troubleshooting Warranty...
-
Page 2: Package Contents
Package Contents B119-2X2: • Local Transmitter • External Power Supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 2A) • 3.5 mm to DB9 Adapter Cable • Remote Control • Mounting Hardware • Owner’s Manual B119-4X4: • Local Transmitter • External Power Supply (Input: 100–240V, 50/60 Hz, 0.6A; Output: 5V 3A) •... -
Page 3: Product Features
Product Features • Share multiple HDMI sources between multiple monitors • Allows any input to be routed to any output or the same input to be routed to multiple outputs • Switch between inputs via push buttons, remote control or RS-232 serial •... - Page 4 Mounting The B119-2X2 and B119-4X4 include mounting hardware that allows them to be mounted in a variety of ways. The following images show the different ways the included mounting brackets can be attached. Note: The images below show a B126-1A1 HDMI over Cat5 Receiver Unit, but the mounting hardware installation is the same for the B119-2X2 and B119-4X4.
-
Page 5: Standard Installation
Standard Installation Note: The diagram below shows a B119-2X2 installation. Installation will be the same for the B119- 4X4, except for the number of ports. B119-2x2 (Optional) Up to 16 ft. Up to 25 ft. Blu-Ray™ Up to 16 ft. Up to 25 ft. - Page 6 Standard Installation 6. Connect the external power supply to the switch and plug it into a Surge Protector, Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS). When receiving power, the following LEDs will illuminate: The green Power LED and orange Source LEDs (for the Source ports that have devices connected to them).
- Page 7 RS-232 Serial Control (For B119-2X2) Before using RS-232 Serial Control, you must first go into your Terminal Emulation Software and update the COM port settings. 1. Go to the Setup drop-down menu and select the Serial Port option.
- Page 8 RS-232 Serial Control (For B119-2X2) 2. Select the COM port that is being used, and update the remaining settings as follows: Baud Rate (57600 or 9600), Data (8 bit), Parity (none), Stop (1 bit), Flow Control (none). Note: The baud rate in the below image lists 57600; if 57600 does not work, this value should be changed to 9600.
- Page 9 RS-232 Serial Control (For B119-2X2) 3. Next, you will need to configure your software to allow input control. Go to the Setup drop-down menu and select the Terminal option. 4. Update the following settings; Receive (LF), Local Echo (enable). The remaining settings can stay as they are.
- Page 10 RS-232 Serial Control (For B119-2X2) 5. Once these settings are updated, the Terminal Emulation Software will recognize the switch, allowing you to enter commands to control it with. The following table lists the available commands. Command Action sw[x] [n] Switches the source being displayed on the selected output.
- Page 11 RS-232 Serial Control (For B119-4X4) Before using RS-232 Serial Control, you must first go into your Terminal Emulation Software and update the COM port settings. 1. Go to the Setup drop-down menu and select the Serial Port option.
- Page 12 RS-232 Serial Control (For B119-4X4) 2. Select the COM port that is being used, and update the remaining settings as follows: Baud Rate (57600 or 9600), Data (8 bit), Parity (none), Stop (1 bit), Flow Control (none). Note: The baud rate in the below image lists 57600; if 57600 does not work, this value should be changed to 9600.
- Page 13 RS-232 Serial Control (For B119-4X4) 3. Next, you will need to configure your software to allow input control. Go to the Setup drop-down menu and select the Terminal option. 4. Update the following settings; Receive (LF), Local Echo (enable). The remaining settings can stay as they are.
-
Page 14: Troubleshooting
RS-232 Serial Control (For B119-4X4) 5. Once these settings are updated, the Terminal Emulation Software will recognize the switch, allowing you to enter commands to control it with. The following table lists the available commands. Command Action sw[x] [n] Switches the source being displayed on the selected output. - Page 15 Troubleshooting 4. Test your cables to ensure they are working properly. For example, connect your HDMI cables between a source and monitor that you know works to see if the cable is functioning. 5. Is the switch located in an area that exposes it to higher temperatures? If the product is overheated, it will not function properly.
-
Page 16: Warranty
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment. - Page 17 Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
- Page 20 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 9332BC United States Eaton.com © 2024 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-12-116 / 93-32BC_RevG All trademarks are property January 2024 of their respective owners.
