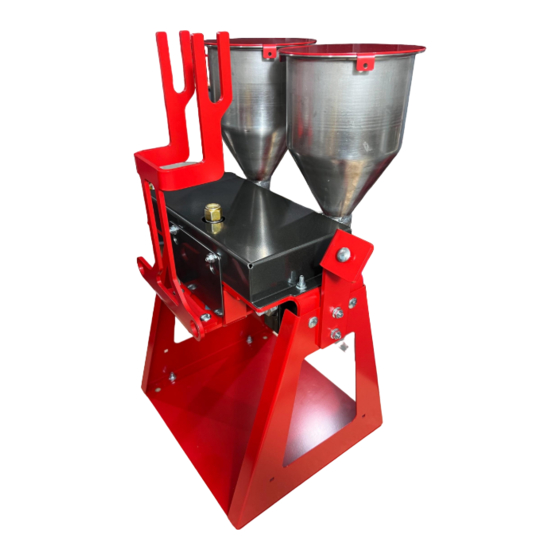

GP-3: Mini-Pro Assembly
Items Required for assembly: 7/16" Wrench, 1/2" Wrench, 11/16" Wrench, 3/4" Socket,
7/8" Wrench and Cordless Impact Driver
Package Contents (2 Boxes)
◻
Main pump assembly (qty: 1)
◻
Pump uprights (qty: 2)
◻
Pump base (qty: 1)
◻
Drill mounting bracket assembly (qty: 1)
◻
Wand mount assembly (qty: 1)
◻
Wand assembly (qty: 1)
Stainless steel material hoppers (qty: 2)
◻
◻
Hopper particle screens (qty: 2)
◻
Hopper lids (qty: 2)
◻
Hopper lid holder assembly (qty: 1)
6 ft. Braided hoses (qty: 2)
◻
◻
Zip ties (qty: 4)
◻
Static mixer (qty: 1)
◻
3" Swivel casters (qty: 4)
◻
5/16-18 x 3/4" Carriage bolts (qty: 8)
◻
5/16-18 Serrated flange nuts (qty: 8)
◻
M14 Bolts w/washers (qty: 2)
◻
1/2" Impact adapter (qty: 1)
◻
15/16" Socket (qty: 1)
◻
1/4" Grease ports (qty: 2)
◻
Drill mixer (qty: 1) (Optional)
www.gorillaconcretetools.com
| p. 1
Advertisement
Table of Contents
Related Manuals for Gorilla Concrete Tools GP-3 Mini-Pro
Summary of Contents for Gorilla Concrete Tools GP-3 Mini-Pro
- Page 1 GP-3: Mini-Pro Assembly Items Required for assembly: 7/16” Wrench, 1/2” Wrench, 11/16” Wrench, 3/4” Socket, 7/8” Wrench and Cordless Impact Driver Package Contents (2 Boxes) ◻ Main pump assembly (qty: 1) ◻ Pump uprights (qty: 2) ◻ Pump base (qty: 1) ◻...
- Page 2 Assembly Figure 1 Figure 2 Step 1: Begin by removing all contents from packages: The main pump assembly has been assembled and tensioned for easy assembly. Step 2: Secure the pump base to the pump uprights with the supplied hardware, as shown in Figure 1. This is also a good time to attach the 3”...
- Page 3 Figure 7 Figure 8 Step 8: Remove the 1/4-28 Hex head bolts from the wand manifold and install the grease ports, as shown in Figure 8. Step 9: Check the threading on your drill mounting bolt holes to confirm the M14 bolts are the proper hardware for your unit if you did not purchase the optional drill mixer from us.
